Part Number:
Status:
Description:
Documents:
3D Model

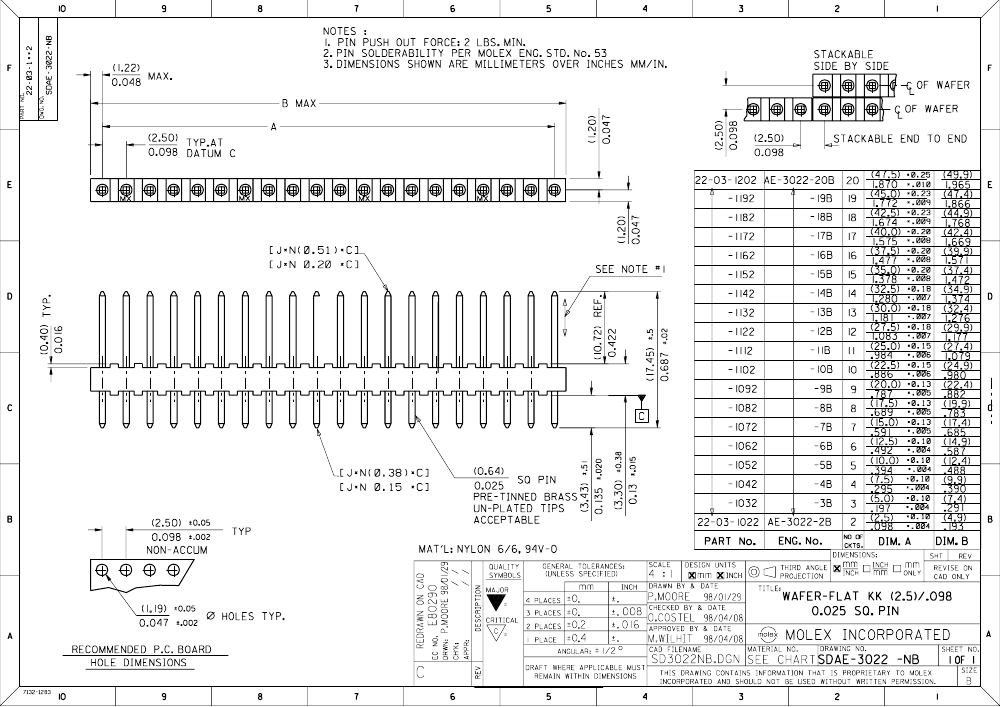

Drawing (PDF)
0022031192
Active
KK2.5MM WAFER ASSEMBLY 302219B
Product Specification PS-99020-0088 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
LR19980
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Product Name
PCB Headers
3022
Wire-to-Board
KK®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
19
19
Natural (White)
25
94V-0
No
Brass
Tin
Tin
Nylon
1
Vertical
0.135 In
3.43 mm
No
Bag
0.098 In
2.50 mm
0.098 In
2.50 mm
200
5
200
5
No
No
No
Yes
No
-40°C to +105°C
Through Hole
Search Parts in this Series
3022Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
3A
250V
Material Info
Old Part Number
3022-19B
