Part Number:
Status:
Description:
0357980390
Active
6.00mm (.236") Pitch Wire-to-Board Header, 1.78mm (.070") Tab, Vertical, White, 3
Circuits
Documents:
3D Model

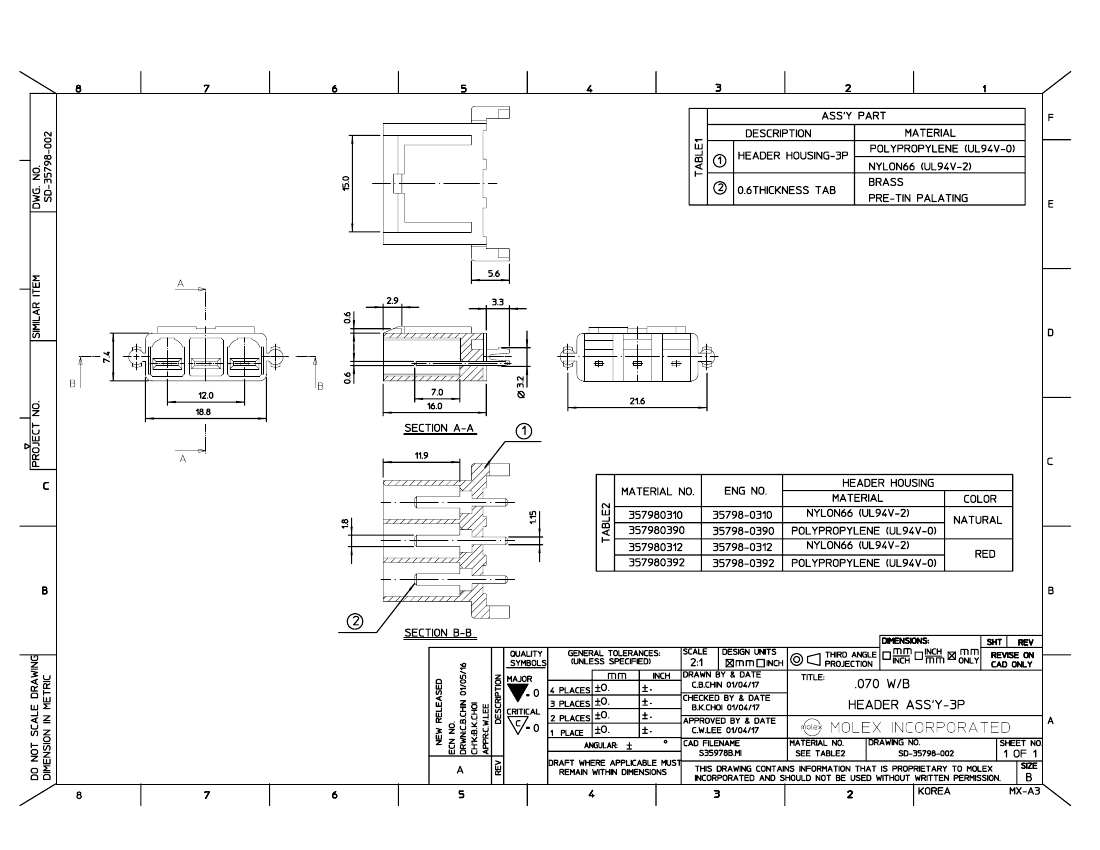

Drawing (PDF)
Product Specification PS-35798-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Product Name
PCB Headers
35798
Wire-to-Board
N/A
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
No
3
3
30
No
No
No
None
Yes
Tin
1
Vertical
0.130 In
3.30 mm
Yes
Yes
0.062 In
1.60 mm
Bag
0.236 In
6.00 mm
No
Partial
No
-40°C to +120°C
Through Hole
Search Parts in this Series
35798Series
Mates With
35799 Wire-to-Board Housing
Electrical
Current - Maximum per Contact
Voltage - Maximum
15A
300V
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-35798-001
SD-35798-002
