36515-0098 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 36515-0098

36515-0098: Description96 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT; CategoryThe connector The connector; File Size206KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

36515-0098 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	36515-0098	-	-	View	Buy Now

36515-0098 Overview

96 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT

36515-0098 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	36515
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	96
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/13/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0365150098

Active

din_41612

2.54mm (0.100") Pitch DIN 41612 Header, Style R, Vertical, Press-fit, 13.25mm (.522")

PC Tail Length, 96 Circuits, 0.76µm (30µ") Gold (Au) Selective, Lead-Free

Documents:

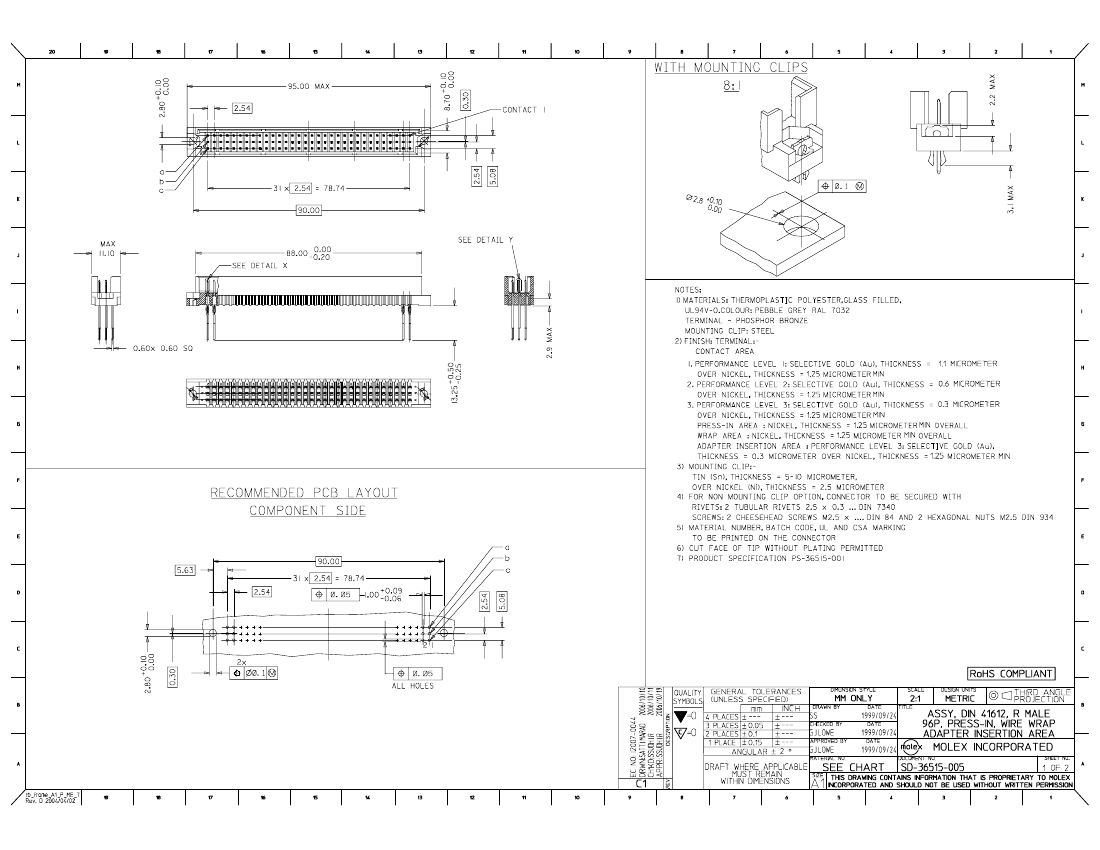

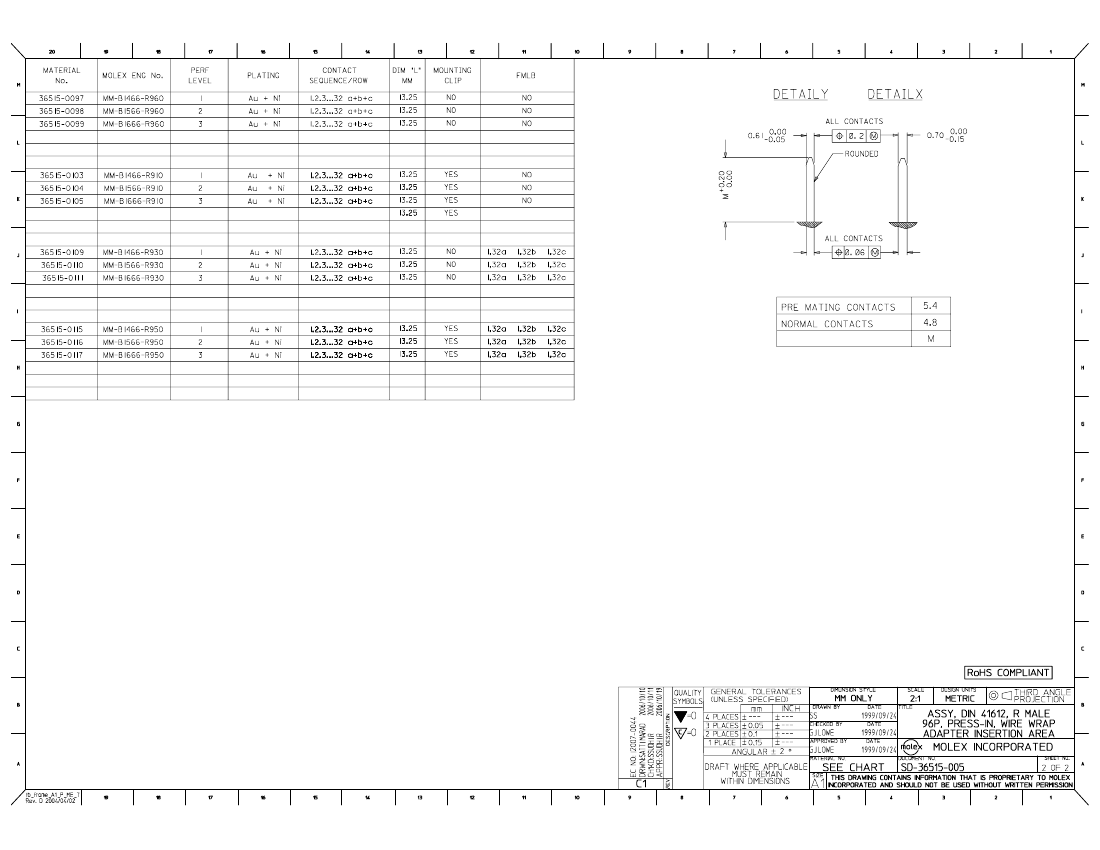

Drawing (PDF)

Product Specification PS-36515-001 (PDF)

RoHS Certificate of Compliance (PDF)

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Style

Backplane Connectors

36515

Backplane

"R" at Style Represents Vertical Male DIN Connectors

PCB Header

din_41612

IEC 603-2/DIN 41612

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Durability (mating cycles max)

Keying to Mating Part

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to PCB

Temperature Range - Operating

Termination Interface: Style

Rows A, B, & C

400

Yes

Open Pin Field

Vertical

0.522 In

13.25 mm

Yes

0.045 In, 0.157 In

1.20 mm, 4.00 mm

Bag

0.100 In

2.54 mm

0.100 In

2.54 mm

-55°C to +125°C

Through Hole - Compliant Pin, Wire Wrap

Search Parts in this Series

36515Series

Electrical

Current - Maximum per Contact

Data Rate

Voltage - Maximum

622.0 Mbps

250V AC (RMS)

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-36515-001

SD-36515-005

36515-0098 Related Products

	36515-0098	0365150098
Description	96 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT	96 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT
Is it Rohs certified?	conform to	conform to
Maker	Molex	Molex
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	unknown
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	YES	YES
Filter function	NO	NO
IEC compliance	NO	YES
MIL compliance	NO	NO
Manufacturer's serial number	36515	36515
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	96	96
Base Number Matches	1	1
