389690008 Overview

12.70mm

389690008 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompli
Base Number Matches1
This document was generated on 04/23/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0389690008
Active
12.70mm (.250") Pitch, Single Row Tri-Barrier Terminal Strip, without Mounting Ends, 8
Circuits
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Product Name
Type
Terminal Blocks
38969
Wire-to-Board
One Piece
TSE
Barrier Strip
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Circuits (maximum)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Wire Size AWG
8
8
90° Angle
None
1
Vertical
0.157 In
4.00 mm
None
0.062 In
1.57 mm
No
0.500 In
12.70 mm
0.500 In
12.70 mm
Yes
Tri-Barrier
No
No
-40°C to +120°C
10, 12, 14, 16, 18, 20, 8
Search Parts in this Series
38969Series
Mates With
N/A
Electrical
Current - Maximum per Contact
Voltage - Maximum
50A
600V
Material Info

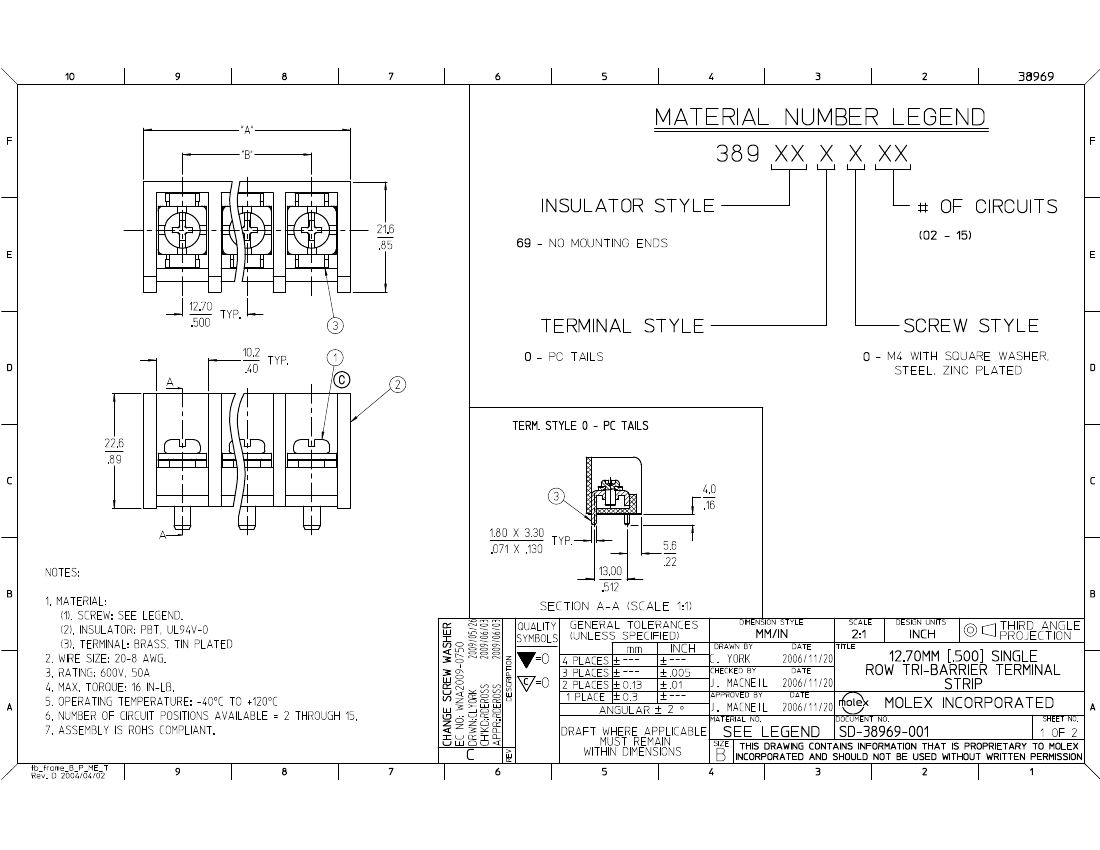

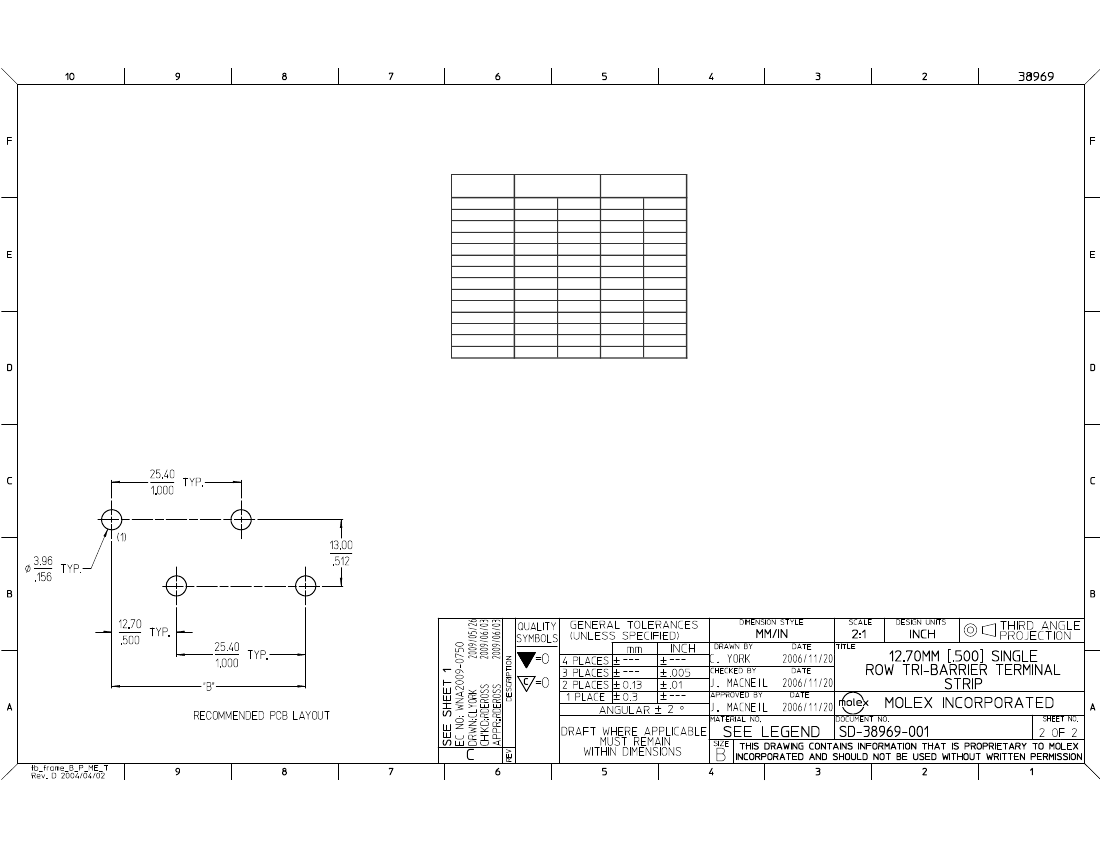

Reference - Drawing Numbers
Sales Drawing
SD-38969-001
This document was generated on 04/23/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
