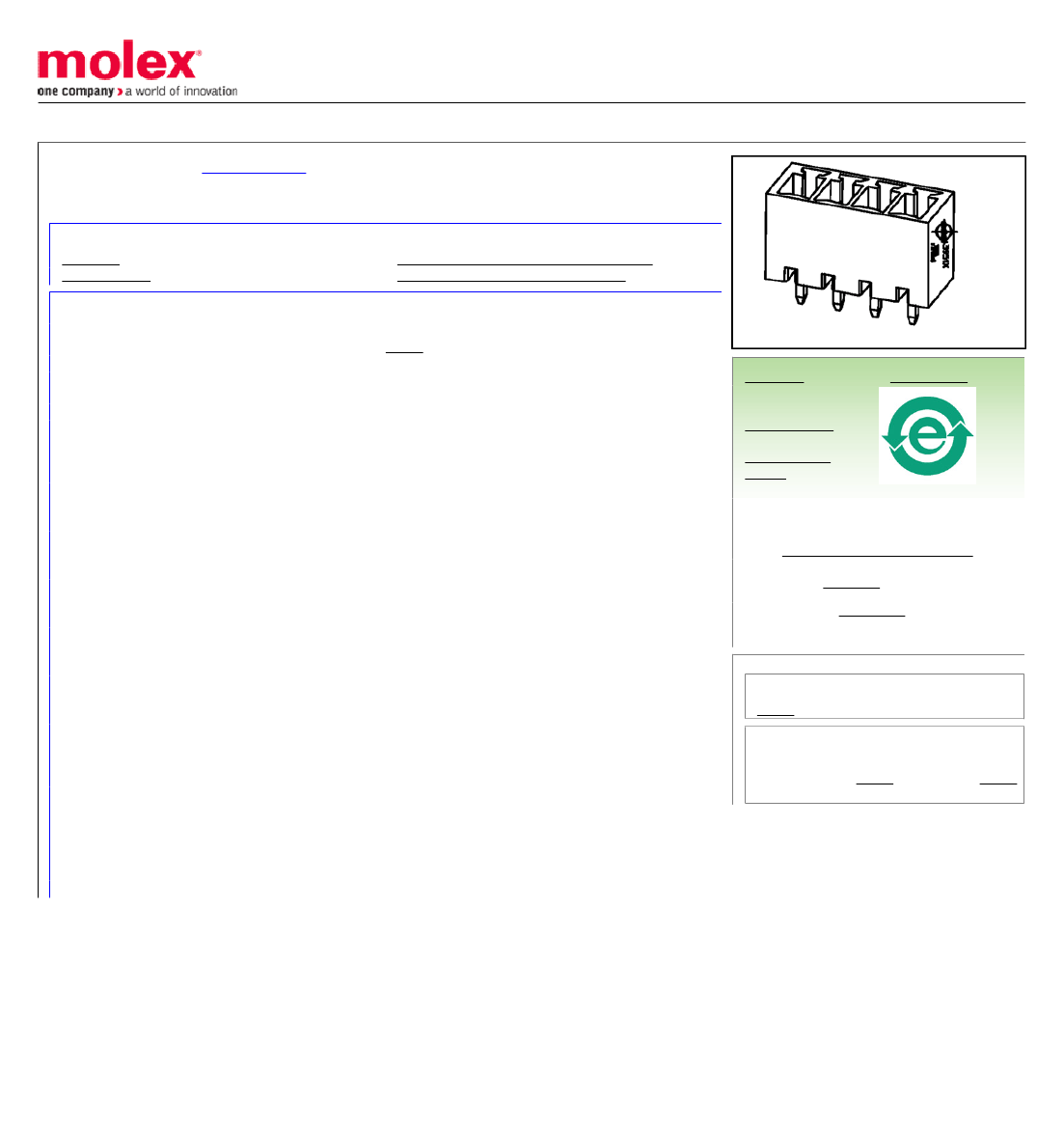

This document was generated on 04/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

Drawing (PDF)

0395111010

Active

3.81mm (.150") Pitch Eurostyle™ Vertical PCB Header, 10 Circuits

Product Specification PS-39500-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39511

Wire-to-Board

PCB Header

USA-355

ESE, Eurostyle™Pluggable

Euro Block

image - Reference only

Series

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Shrouded

Stackable

Temperature Range - Operating

Wire Size AWG

N/A

None

Vertical

0.138 In

3.50 mm

0.098 In

2.50 mm

0.150 In

3.81 mm

Yes

Fully

-40°C to +105°C

N/A

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

39511Series

Mates With

Most 3.81mm (.150") Pitch Industry

Standard Plugs, 39513 Vertical Plug, 39510

Horizontal Plug

Electrical

Current - Maximum per Contact

Voltage - Maximum

300V

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-39500-001

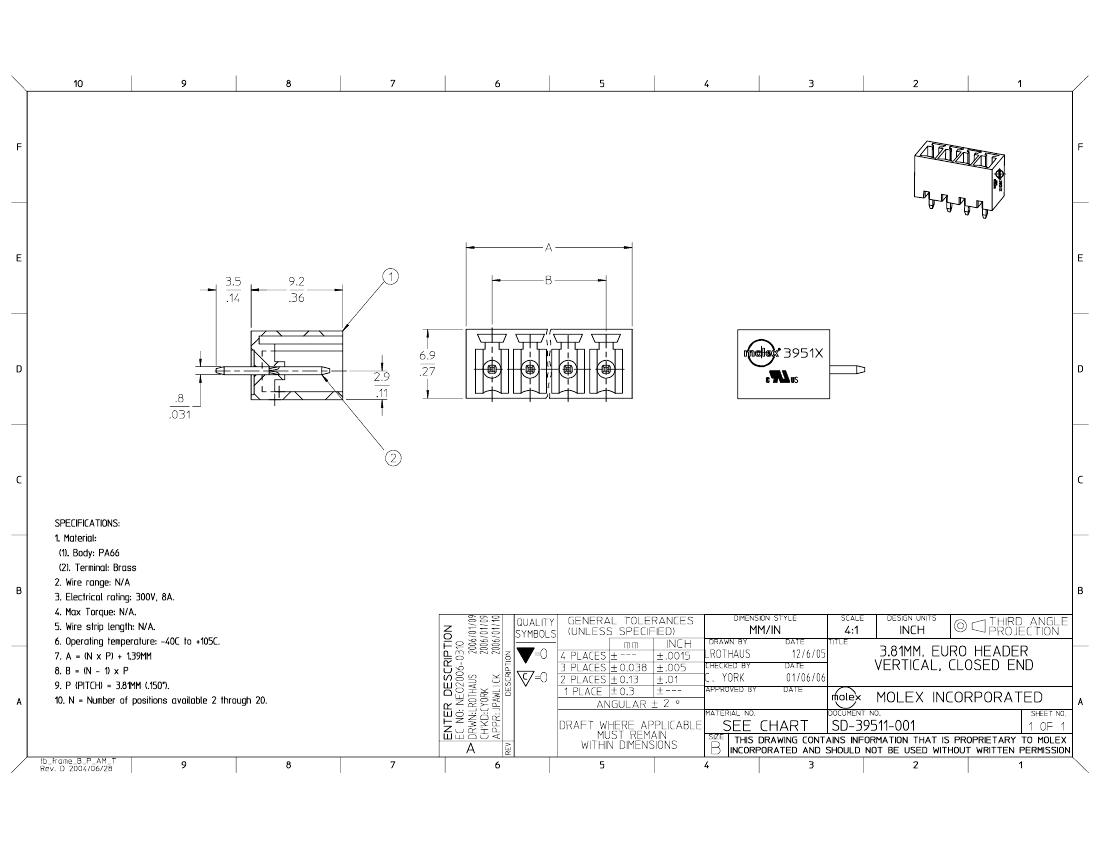

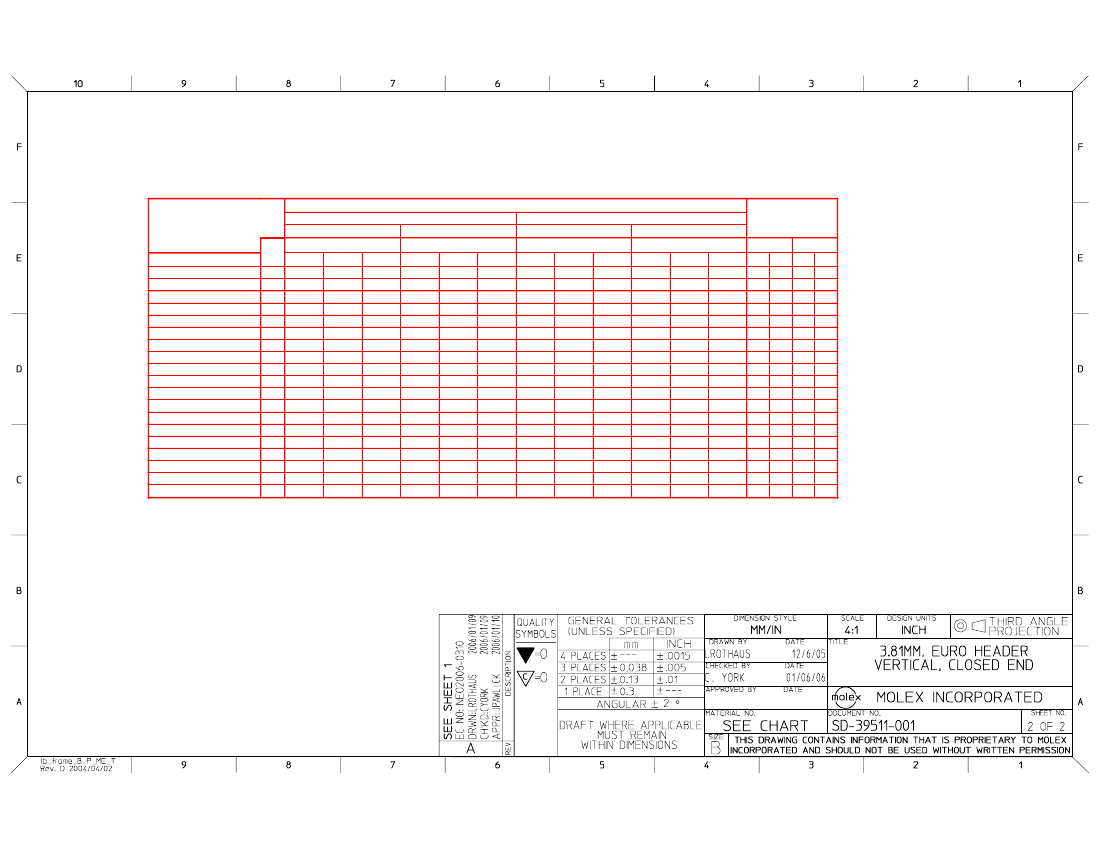

SD-39501-002, SD-39511-001

This document was generated on 04/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
