Part Number:
Status:
Description:
0395273002
Active
5.00mm (.197") Pitch Eurostyle™ Vertical Plug, with Retention Screws, Front Wire
Entry, 2 Circuits
Documents:

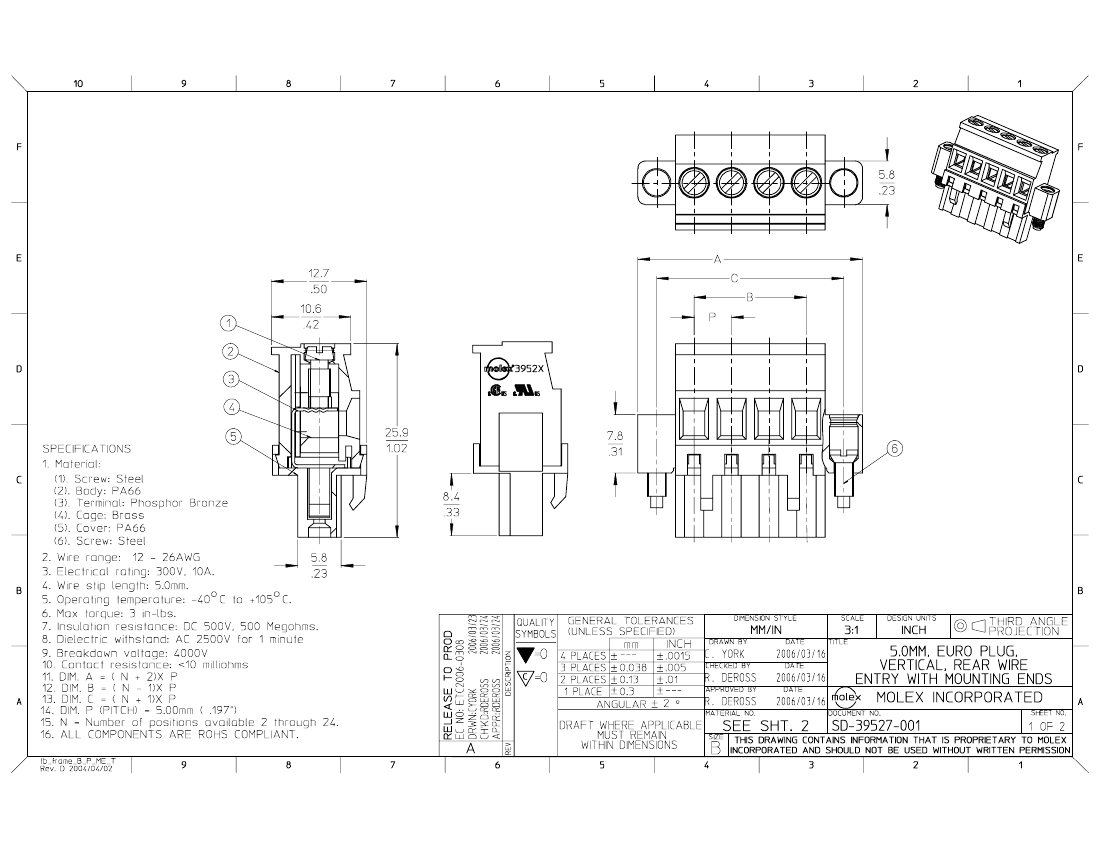

Drawing (PDF)
Product Specification PS-39500-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Comments
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39527
Wire-to-Board
Front Wire Entry
Plug
USA-355
ESE, Eurostyle™Pluggable
Euro Block
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
2
Horizontal
Yes
1
Vertical
0.197 In
5.00 mm
5.00 mm
No
0.197 In
5.00 mm
Yes
No
-40°C to +105°C
12, 14, 16, 18, 20, 22, 24, 26
0.13 - 3.31
Search Parts in this Series
39527Series
Mates With
Most 5.00mm (.197") Pitch Industry
Standard PCB Headers, 39525 Vertical
PCB Header with Threaded Retention
Inserts, 39526 Horizontal PCB Header with
Threaded Retention Inserts
Electrical
Current - Maximum per Contact
Voltage - Maximum
10A
300V
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-39500-001
SD-39527-001
This document was generated on 04/26/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Material Numbers
Black
100% Tin
Printing Options
Description
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
5.0mm, Euro Plug, Vertical RWE, Mounting Ends
Circuit size
None
10AV
11AV
None
30 u" Gold
Printing Options
10AV
11AV
None
100% Tin
Printing Options
10AV
11AV
None
Green
30 u" Gold
Printing Options
10AV
11AV
mm
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
125.0
130.0
Dim. A
inch
0.79
0.98
1.18
1.38
1.58
1.77
1.97
2.17
2.36
2.56
2.76
2.95
3.15
3.35
3.54
3.74
3.94
4.13
4.33
4.53
4.72
4.92
5.12
mm
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
Dimensional Information
Dim B
inch
0.20
0.39
0.59
0.79
0.98
1.18
1.38
1.58
1.77
1.97
2.17
2.36
2.56
2.76
2.95
3.15
3.35
3.54
3.74
3.94
4.13
4.33
4.53
mm
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
125.0
Dim C
inch
0.59
0.79
0.98
1.18
1.38
1.58
1.77
1.97
2.17
2.36
2.56
2.76
2.95
3.15
3.35
3.54
3.74
3.94
4.13
4.33
4.53
4.72
4.92
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
395273002 395273302 395273402 395273502 395273802 395273902 395278002 395278302 395278402 395278502 395278802 395278902
395273003 395273303 395273403 395273503 395273803 395273903 395278003 395278303 395278403 395278503 395278803 395278903
395273004 395273304 395273404 395273504 395273804 395273904 395278004 395278304 395278404 395278504 395278804 395278904
395273005 395273305 395273405 395273505 395273805 395273905 395278005 395278305 395278405 395278505 395278805 395278905
395273006 395273306 395273406 395273506 395273806 395273906 395278006 395278306 395278406 395278506 395278806 395278906
395273007 395273307 395273407 395273507 395273807 395273907 395278007 395278307 395278407 395278507 395278807 395278907
395273008 395273308 395273408 395273508 395273808 395273908 395278008 395278308 395278408 395278508 395278808 395278908
395273009 395273309 395273409 395273509 395273809 395273909 395278009 395278309 395278409 395278509 395278809 395278909
395273010 395273310 395273410 395273510 395273810 395273910 395278010 395278310 395278410 395278510 395278810 395278910
395273011 395273311 395273411 395273511 395273811 395273911 395278011 395278311 395278411 395278511 395278811 395278911
395273012 395273312 395273412 395273512 395273812 395273912 395278012 395278312 395278412 395278512 395278812 395278912
395273013 395273313 395273413 395273513 395273813 395273913 395278013 395278313 395278413 395278513 395278813 395278913
395273014 395273314 395273414 395273514 395273814 395273914 395278014 395278314 395278414 395278514 395278814 395278914
395273015 395273315 395273415 395273515 395273815 395273915 395278015 395278315 395278415 395278515 395278815 395278915
395273016 395273316 395273416 395273516 395273816 395273916 395278016 395278316 395278416 395278516 395278816 395278916
395273017 395273317 395273417 395273517 395273817 395273917 395278017 395278317 395278417 395278517 395278817 395278917
395273018 395273318 395273418 395273518 395273818 395273918 395278018 395278318 395278418 395278518 395278818 395278918
395273019 395273319 395273419 395273519 395273819 395273919 395278019 395278319 395278419 395278519 395278819 395278919
395273020 395273320 395273420 395273520 395273820 395273920 395278020 395278320 395278420 395278520 395278820 395278920
395273021 395273321 395273421 395273521 395273821 395273921 395278021 395278321 395278421 395278521 395278821 395278921
395273022 395273322 395273422 395273522 395273822 395273922 395278022 395278322 395278422 395278522 395278822 395278922
395273023 395273323 395273423 395273523 395273823 395273923 395278023 395278323 395278423 395278523 395278823 395278923
395273024 395273324 395273424 395273524 395273824 395273924 395278024 395278324 395278424 395278524 395278824 395278924
