395443006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 395443006

395443006: Description5.08mm; CategoryThe connector terminals; File Size189KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

395443006 Overview

5.08mm

395443006 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Fastening method	SCREW
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	6
Rated current	15 A
Rated voltage	300 V
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Wire gauge	12 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 06/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

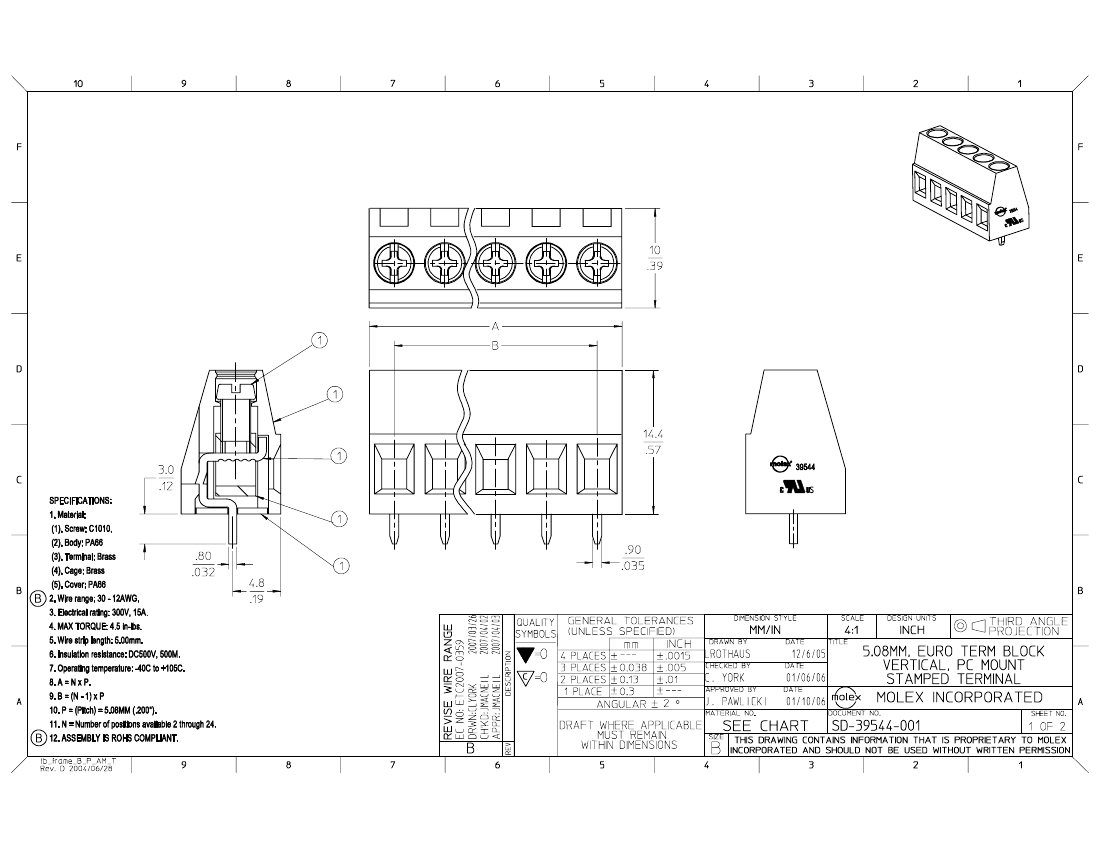

Drawing (PDF)

0395443006

Active

5.08mm (.200") Pitch Eurostyle™ Vertical Fixed Mount PCB Terminal Block, 6 Circuits

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Component Type

MolexKits

Product Literature Order No

Product Name

Type

Terminal Blocks

39544

Wire-to-Board

One Piece

Yes

USA-355

ESE, Eurostyle™Fixed Mount

Euro Block

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Wire Size AWG

Wire Size mm²

Horizontal

None

Vertical

0.118 In

3.00 mm

0.080 In

2.00 mm

0.200 In

5.08 mm

N/A

-40°C to +105°C

12, 14, 16, 18, 20, 22

0.33 - 3.31

Search Parts in this Series

39544Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

15A

300V

Solder Process Data

Duration at Max. Process Temperature (seconds)

Lead-free Process Capability

Max. Cycles at Max. Process Temperature

Process Temperature max. C

Wave Capable (TH only)

135

260

Material Info

Reference - Drawing Numbers

Sales Drawing

SD-39501-002, SD-39544-001

This document was generated on 06/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
