399400421 Overview

5.08mm

399400421 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresTHERMOPLASTIC
Fastening methodSCREW
Installation typeCABLE
Number of layers2
Rows2
Number of channels21
Rated current10 A
Rated voltage300 V
safety certificateUL; CSA
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Conductor cross section2.5 mm2
Wire gauge12 AWG
Base Number Matches1
This document was generated on 05/13/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0399400421
Active
5.08mm (.200") Pitch Beau™ EuroMate™ Pluggable PCB Terminal Block, Dual Level,
90° Wire Entry, with Retention Screws, 21 Circuits
Documents:
Drawing (PDF)
Product Specification PS-39940-001 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
UL
E48521
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39940
Wire-to-Board
Gold plating available
Plug
USA-264
EuroMate™Pluggable
Euro Block
Physical
Circuits (Loaded)
Color - Resin
Entry Angle
Flammability
Lock to Mating Part
Material - Resin
Number of Rows
Orientation
PCB Retention
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
Wire Size mm²
21
Black
Horizontal
94V-0
Yes
Nylon
2
Vertical
N/A
No
0.200 In
5.08 mm
0.200 In
5.08 mm
Yes
Tri-Barrier
No
130°C
Screw or Lug
12, 14, 16, 18, 20, 22
0.50 - 2.50
Search Parts in this Series
39940Series
Mates With
39535-0021 , 39535-4021 , 39536-0021 ,
39536-4021
Electrical
Current - Maximum per Contact
Voltage - Maximum
15A
300V
Material Info
Old Part Number
946821
Reference - Drawing Numbers
Product Specification

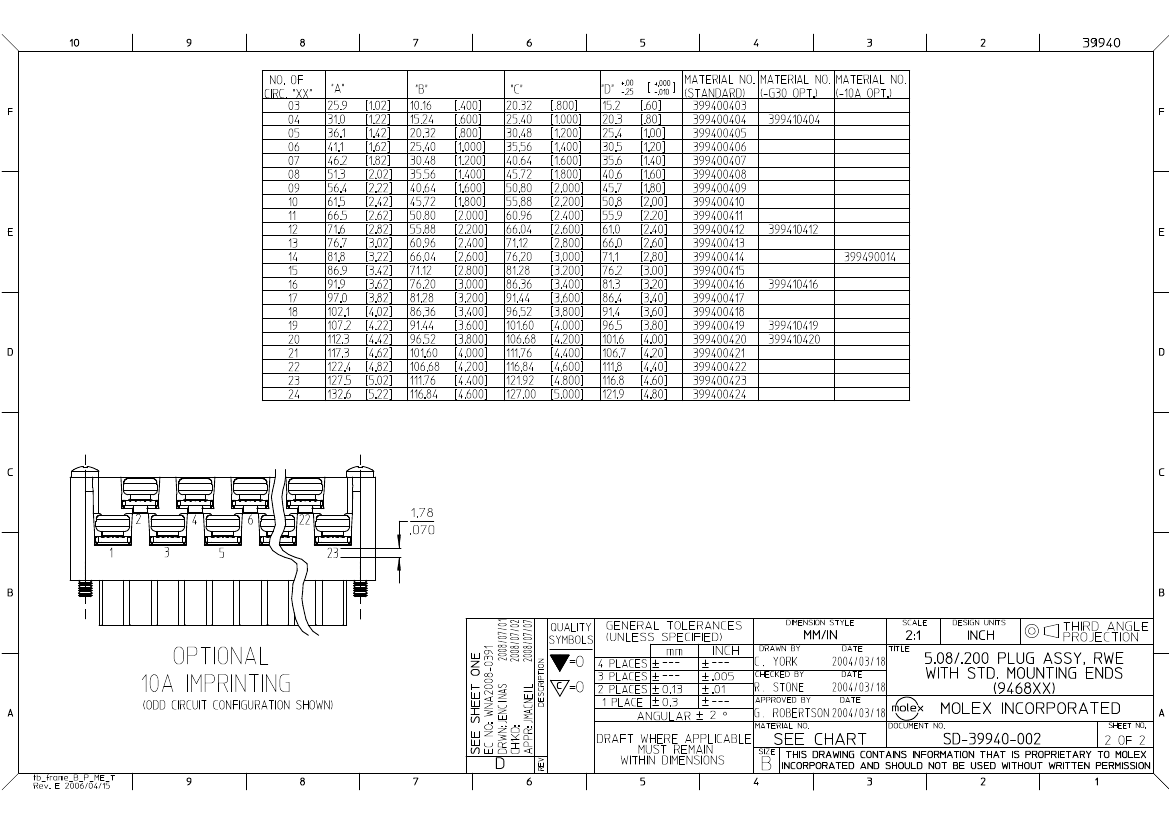

Sales Drawing
PS-39940-001
SD-39940-002

399400421 Related Products

399400421 946821
Description 5.08mm 5.08mm
Reach Compliance Code compli unknow
ECCN code EAR99 EAR99
Other features THERMOPLASTIC POLARIZATION AVAILABLE, NYLON 6.6, 94V-0
Fastening method SCREW SCREW
Installation type CABLE CABLE
Number of layers 2 1
Rows 2 2
Number of channels 21 21
Rated current 10 A 15 A
Rated voltage 300 V 300 V
safety certificate UL; CSA UL
Terminal and terminal strip types BARRIER STRIP TERMINAL BLOCK BARRIER STRIP TERMINAL BLOCK
Conductor cross section 2.5 mm2 2.5 mm2
Wire gauge 12 AWG 12 AWG
Base Number Matches 1 1
