Part Number:
Status:
Description:
0025021022
Active
2.54mm (.100") Pitch C-Grid® Header, Dual Row, Shrouded, with PC Slot and Guide
Ear, 22 Circuits, 0.76µm (30µ") Gold (Au) Selective Plating
Documents:
3D Model
Packaging Specification (PDF)

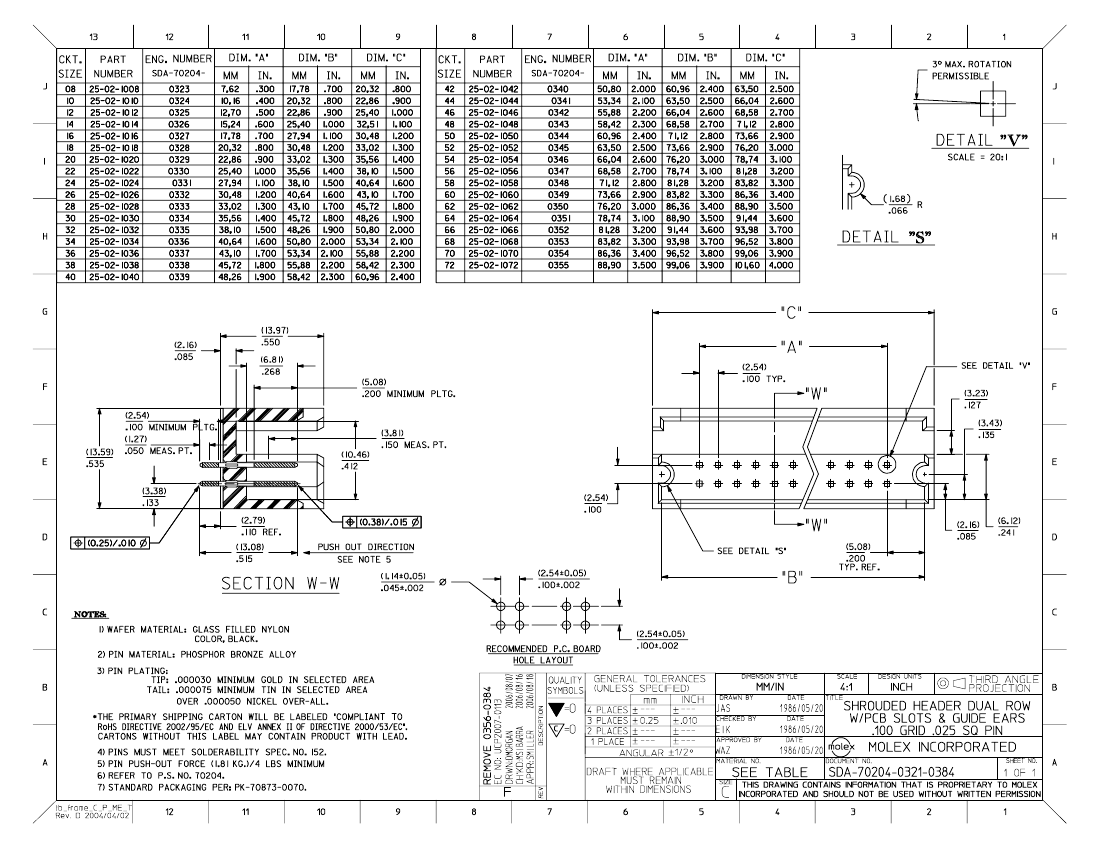

Drawing (PDF)
Product Specification PS-70204 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Application
Product Name
PCB Headers
70204
Board-to-Board
C-Grid®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Guide to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
No
22
22
50
94V-0
No
Yes
None
Brass, Phosphor Bronze
Gold
Tin
2
Vertical
0.110 In
2.79 mm
No
None
Tray
0.100 In
2.54 mm
30
0.75
75
1.91
Yes
No
Fully
No
-40°C to +105°C
Through Hole
Search Parts in this Series
70204Series
Mates With
71973
Electrical
Current - Maximum per Contact
Voltage - Maximum
3A
250V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
5
Wave Capable (TH only)
1
245
Material Info
Old Part Number
70204-0330
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-70204
SDA-70204-0321-0384
