35730-6810: Description1.30mm; CategoryThe connector Connector bracket; File Size109KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

35730-6810 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35730-6810	-	-	View	Buy Now

35730-6810 Overview

1.30mm

35730-6810 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	CONTACT FINISH: TIN
Assembly name	CONTACT
Maximum number of cable entries	0.1023 inch
Minimum cable entry	0.0511 inch
Connector bracket type	CONNECTOR ACCESSORY
Contact point gender	MALE
Contact style	ROUND PIN
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Material	BRASS
Installation method	STRAIGHT
Terminal length	0.1692 inch
Terminal type	CRIMP
Maximum wire diameter	20 AWG
Minimum wire diameter	26 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

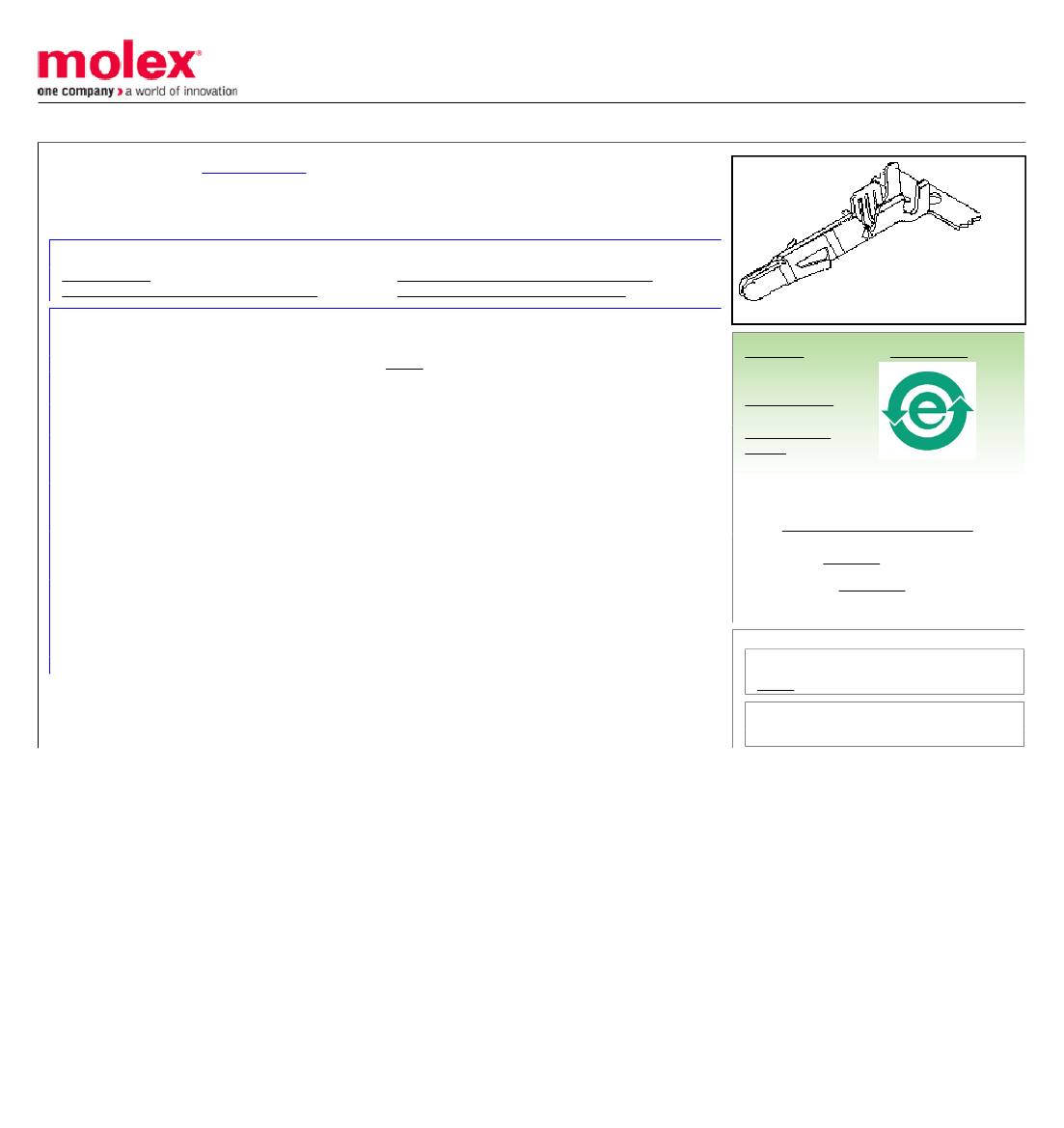

This document was generated on 03/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0357306810

Active

1.30mm (.051") Diameter Pin Terminal, Brass, 0.25mm (.010") Thickness, Wire Range

20-26 AWG (0.52-0.13mm²), Pre-Tin Plated

Documents:

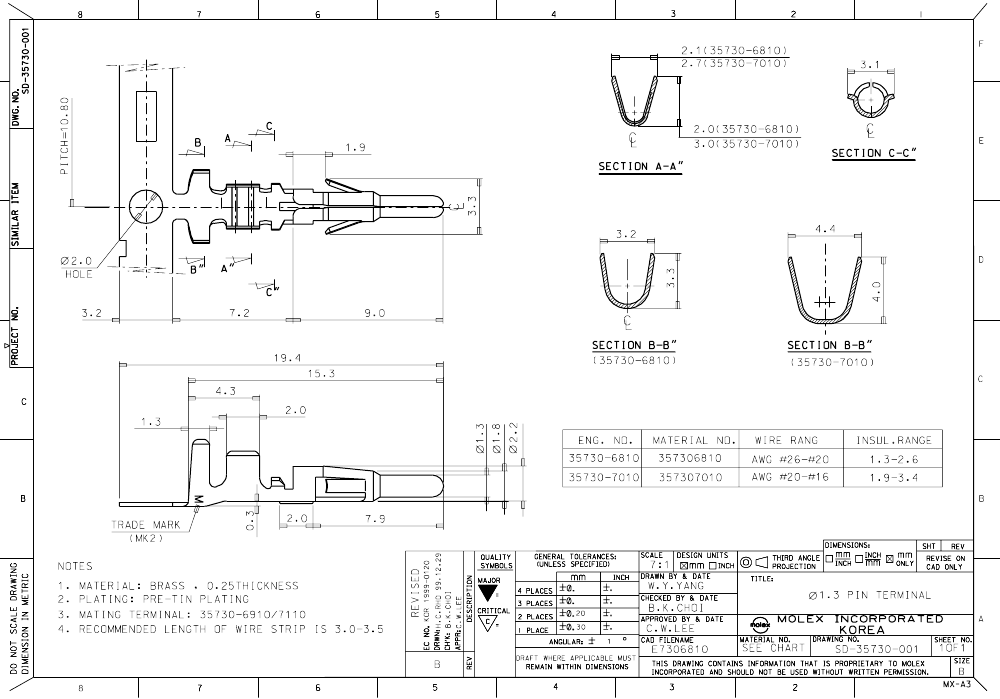

Drawing (PDF)

Product Specification PS-35730-002 (PDF)

Product Specification PS-35953-001 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

General

Product Family

Series

Crimp Quality Equipment

Product Name

Crimp Terminals

35730

Yes

N/A

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Packaging Type

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Male

Brass

Tin

Reel

Crimp or Compression

1.30-2.60mm (.051-.102")

20, 22, 24, 26

N/A

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-35730-002, PS-35953-001

SD-35730-**10

Search Parts in this Series

35730Series

Mates With

35730-6910

This document was generated on 03/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

35730-6810 Related Products

	35730-6810	357306810	0357306810
Description	1.30mm	1.30mm (.051") diameter pin terminal, brass, 0.25mm (.010") thickness, wire range 20-26 awg (0.52-0.13mm?), pre-tin plated	1.30mm (.051") diameter pin terminal, brass, 0.25mm (.010") thickness, wire range 20-26 awg (0.52-0.13mm?), pre-tin plated

Recommended Resources

Principle of single live wire power taking circuit

High-precision voltage stabilization circuit diagram

Double-channel three-phase power supply automatic switching circuit circuit diagram

Fluorescent lamp circuit with reactive power compensation

Three-phase motor Yanbian delta-shaped step-down starting circuit

DZW75-48/50(50II) reset control circuit
