359780370 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 359780370

Preview

359780370: Description9 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size102KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

359780370 Overview

9 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

359780370 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	35978
Plug information	35977-0400
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 06/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0359780370

Planned for Obsolescence

3.96mm (.156") Pitch Wire-to-Board Header, Vertical, Low Profile, 9 Circuits, 10

Postions with Pins 4 Voided, Natural, Nylon

Documents:

3D Model

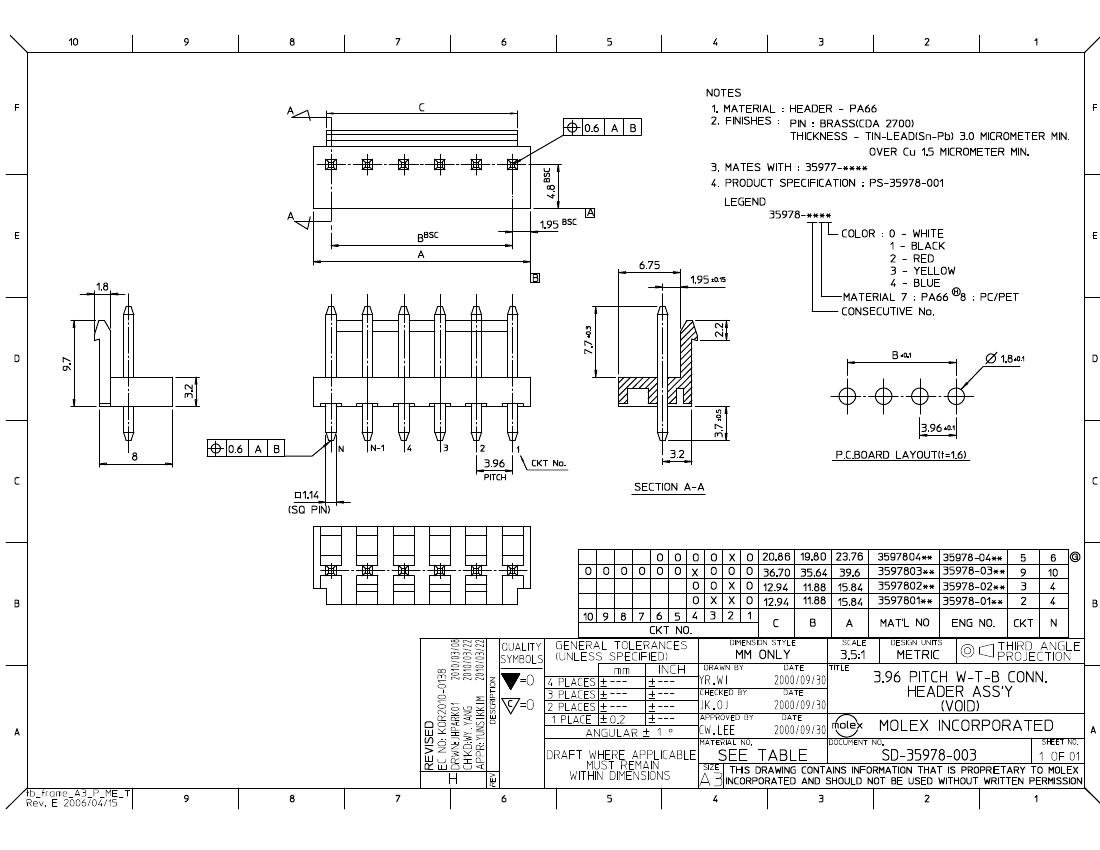

Drawing (PDF)

Product Specification PS-35978-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR19980

R72090224

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

TUV

UL

General

Product Family

Series

Application

Product Name

PCB Headers

35978

Wire-to-Board

MV-396™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

No

8

9

Natural

30

No

94V-0

No

None

Yes

Brass

Tin-Lead

Nylon

1

Vertical

0.146 In

3.70 mm

No

None

0.062 In

1.60 mm

Bag

0.156 In

3.96 mm

0.156 In

3.96 mm

No

Yes

No

-25°C to +85°C

Through Hole

Search Parts in this Series

35978Series

Mates With

35977 Wire-to-Board Housing

359780370 Related Products

	359780370	0359780370	35978-0370
Description	9 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	8 CONTACT(S), MALE, POWER CONNECTOR, SOLDER	9 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Reach Compliance Code	unknow	unknown	unknow
Connector type	BOARD CONNECTOR	RECTANGULAR POWER CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	35978	35978	35978
Plug information	35977-0400	MULTIPLE MATING PARTS AVAILABLE	35977-0400
Mixed contacts	NO	NO	NO
Installation type	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	9	8	9
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	1
Is it Rohs certified?	conform to	conform to	-
Installation method	STRAIGHT	-	STRAIGHT
Number of rows loaded	1	-	1
Terminal pitch	3.96 mm	-	3.96 mm
Contact to complete cooperation	-	NOT SPECIFIED	NOT SPECIFIED
Contact material	-	NOT SPECIFIED	NOT SPECIFIED
