36718-0003 Overview

2.54mm

This document was generated on 05/13/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0367180003
Active
din_41612
2.54mm (.100") Pitch DIN 41612 Receptacle, Style R, Female, Right Angle,Through
Hole, 0.6µm (24µ") Selective Gold (Au), PC Tail Length 3.00mm (.118"), 96 Circuits,
Lead free
Documents:

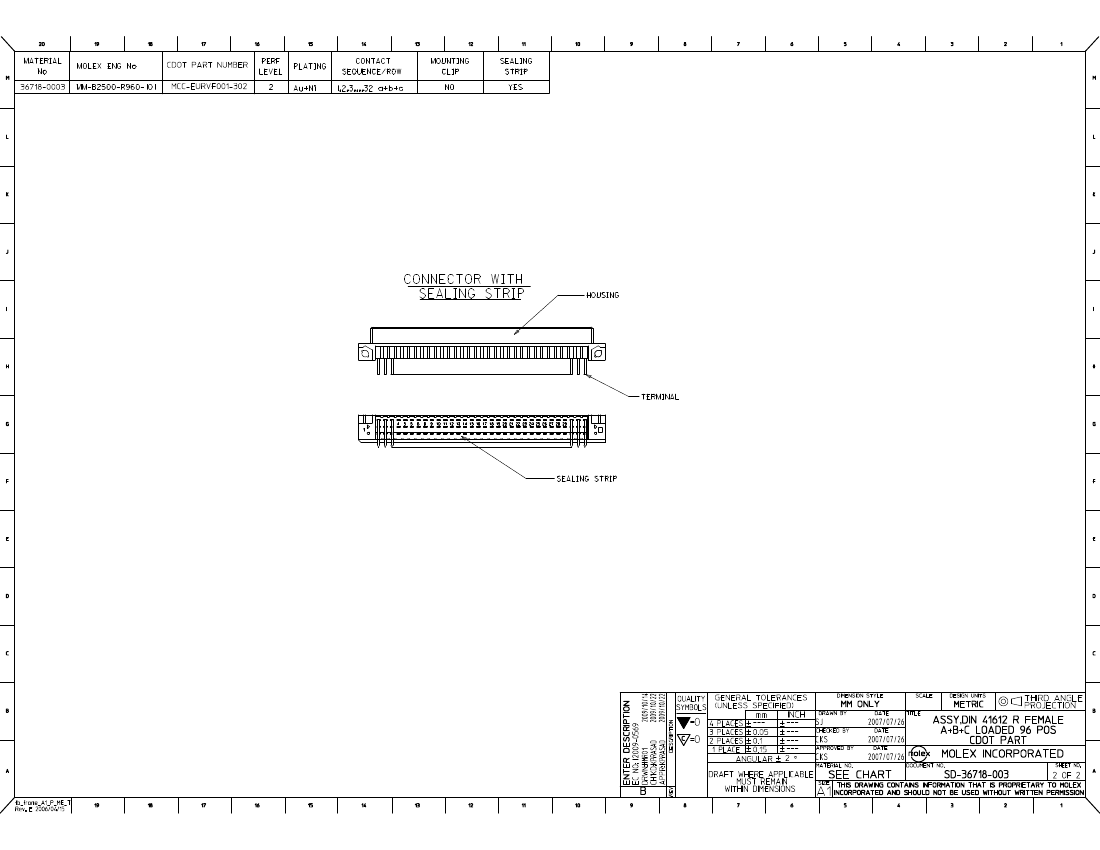

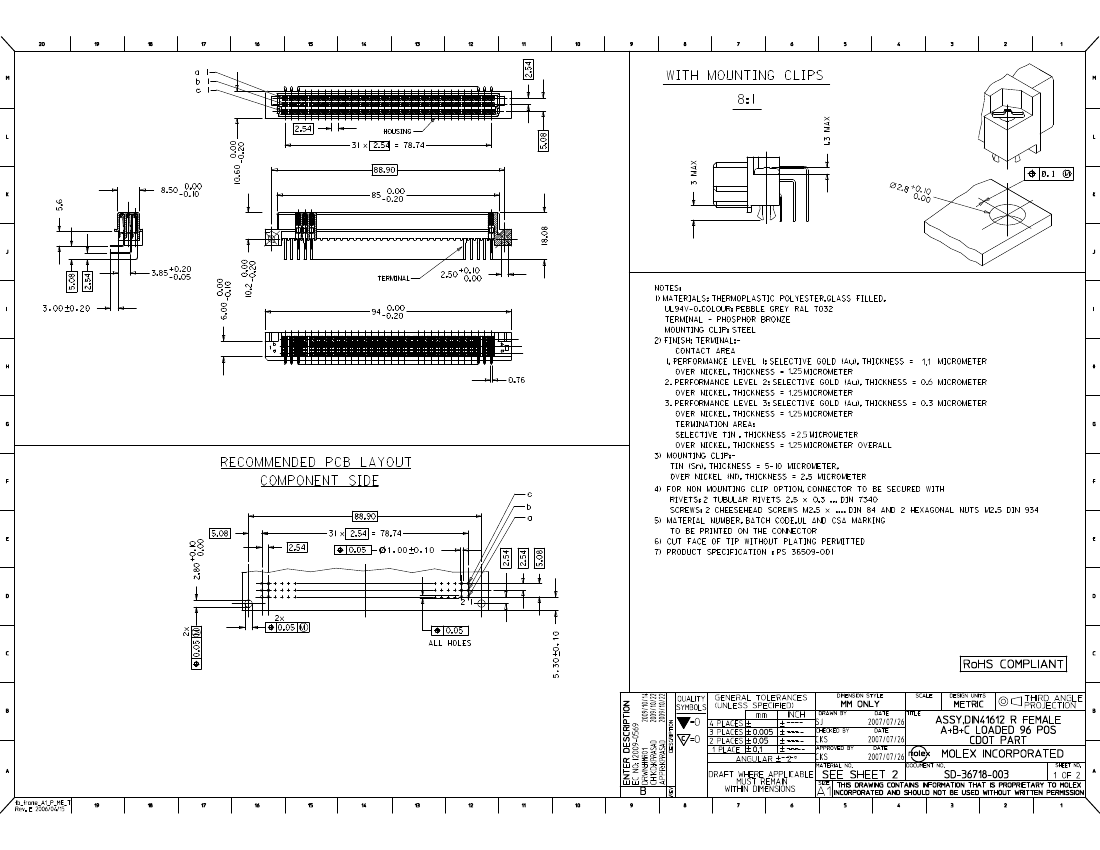

Drawing (PDF)
Product Specification PS-36509-001 (PDF)
RoHS Certificate of Compliance (PDF)
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Component Type
Overview
Product Name
Style
Backplane Connectors
36718
Daughtercard
No Mounting Clip. With Sealing Strip
PCB Receptacle
din_41612
IEC 603-2/DIN 41612
R
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
96
96
1,2,3,...32; a+b+c
Gray
400
No
No
Yes
Phosphor Bronze
Gold
Tin
Polyester
32
Open Pin Field
3
Right Angle
0.118 In
3.00 mm
No
Yes
0.063 In
1.60 mm
Carton
0.100 In
2.54 mm
0.100 In
2.54 mm
24
0.60
Yes
No
No
-55°C to +125°C
Through Hole
Search Parts in this Series
36718Series
