395000005 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 395000005

395000005: Description8 A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK; CategoryThe connector terminals; File Size166KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

395000005 Overview

8 A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK

395000005 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	12 weeks
Other features	PA66
Fastening method	SCREW
Number of layers	1
Rows	1
Number of channels	5
Rated current	8 A
Rated voltage	300 V
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Wire gauge	16 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

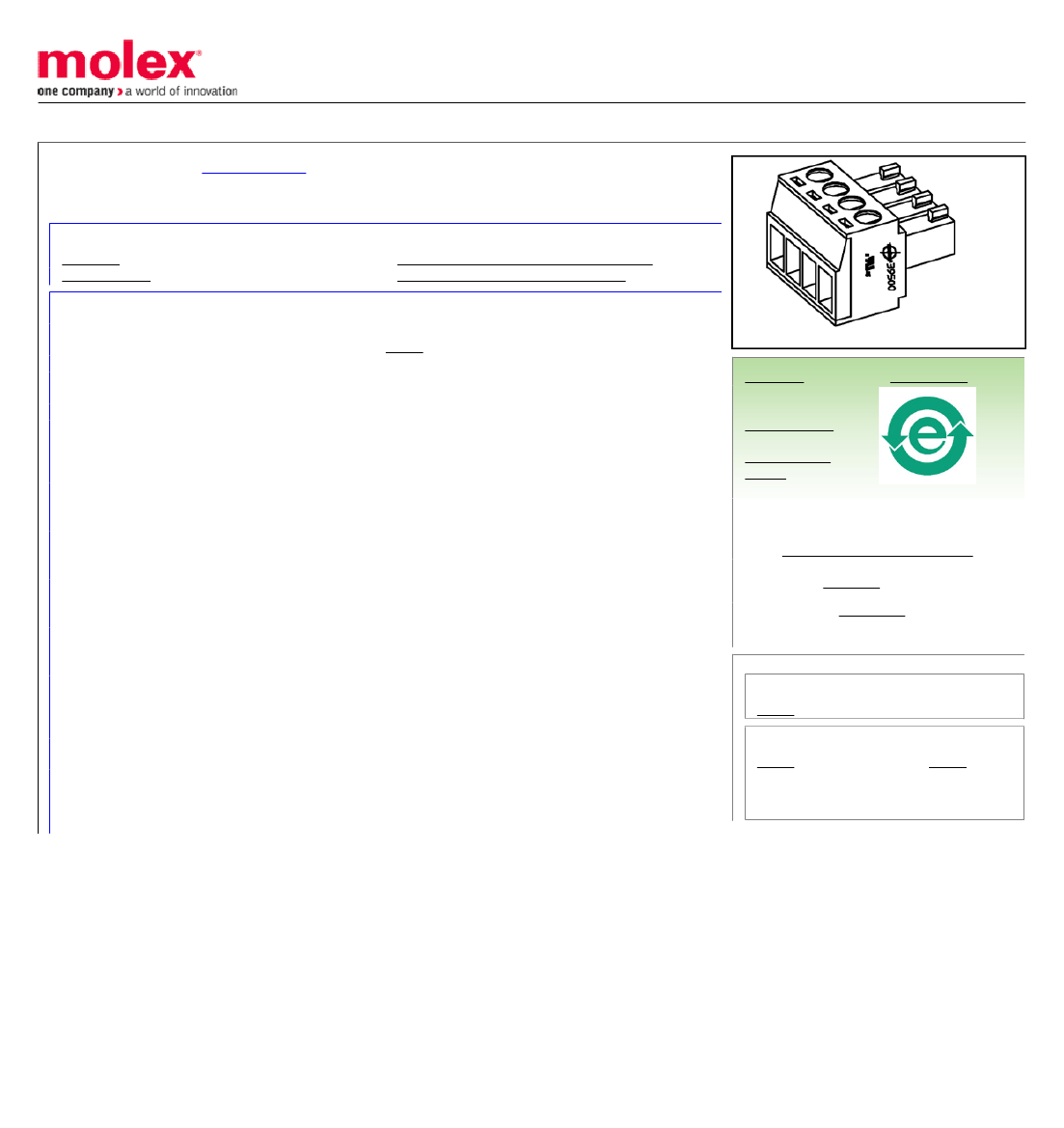

This document was generated on 04/22/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

Drawing (PDF)

0395000005

Active

3.50mm (.138") Pitch Eurostyle™ Horizontal Plug, 5 Circuits

Product Specification PS-39500-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39500

Wire-to-Board

Plug

USA-355

ESE, Eurostyle™Pluggable

Euro Block

image - Reference only

Series

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Wire Size AWG

Wire Size mm²

Vertical

None

Horizontal

0.138 In

3.50 mm

Yes

-40°C to +105°C

16, 18, 20, 22, 24

0.20 - 1.31

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Electrical

Current - Maximum per Contact

Voltage - Maximum

300V

Search Parts in this Series

39500Series

Mates With

39501 Vertical PCB Header, 39502

Horizontal PCB Header, Most 3.50mm

(.138") Pitch Industry Standard PCB

Headers

Material Info

Reference - Drawing Numbers

Product Specification

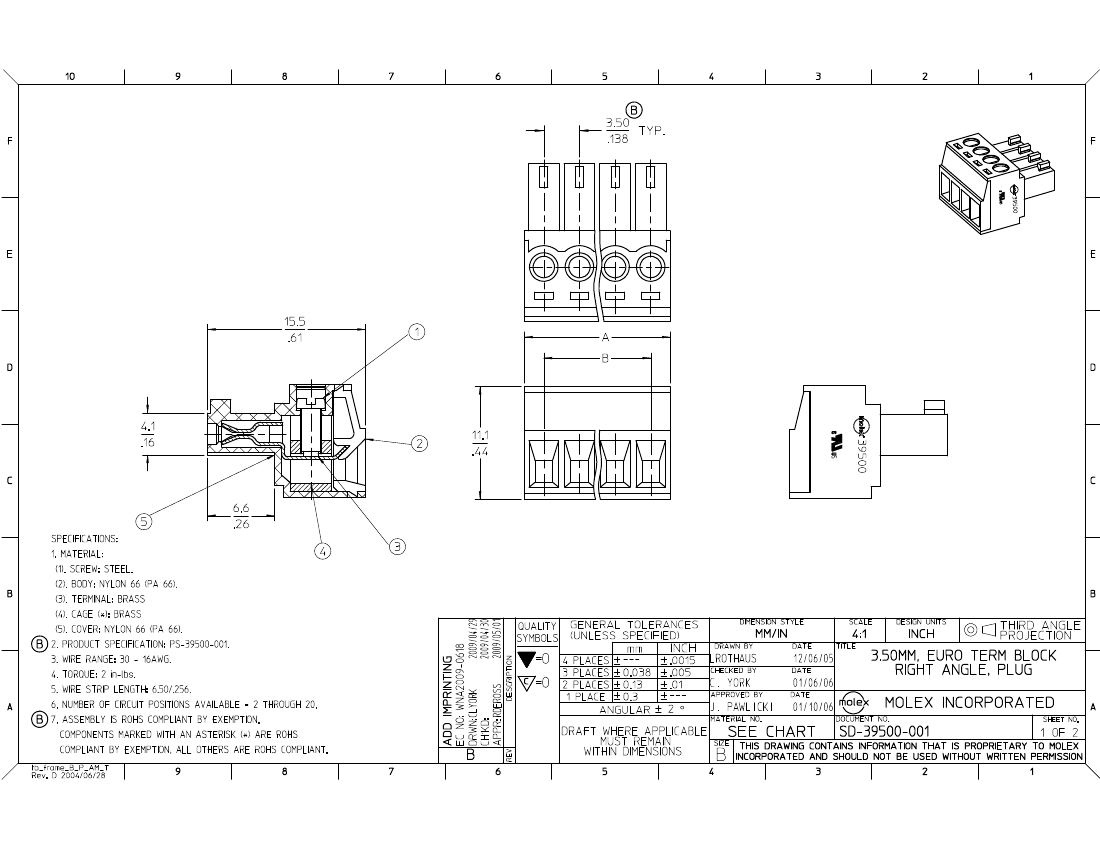

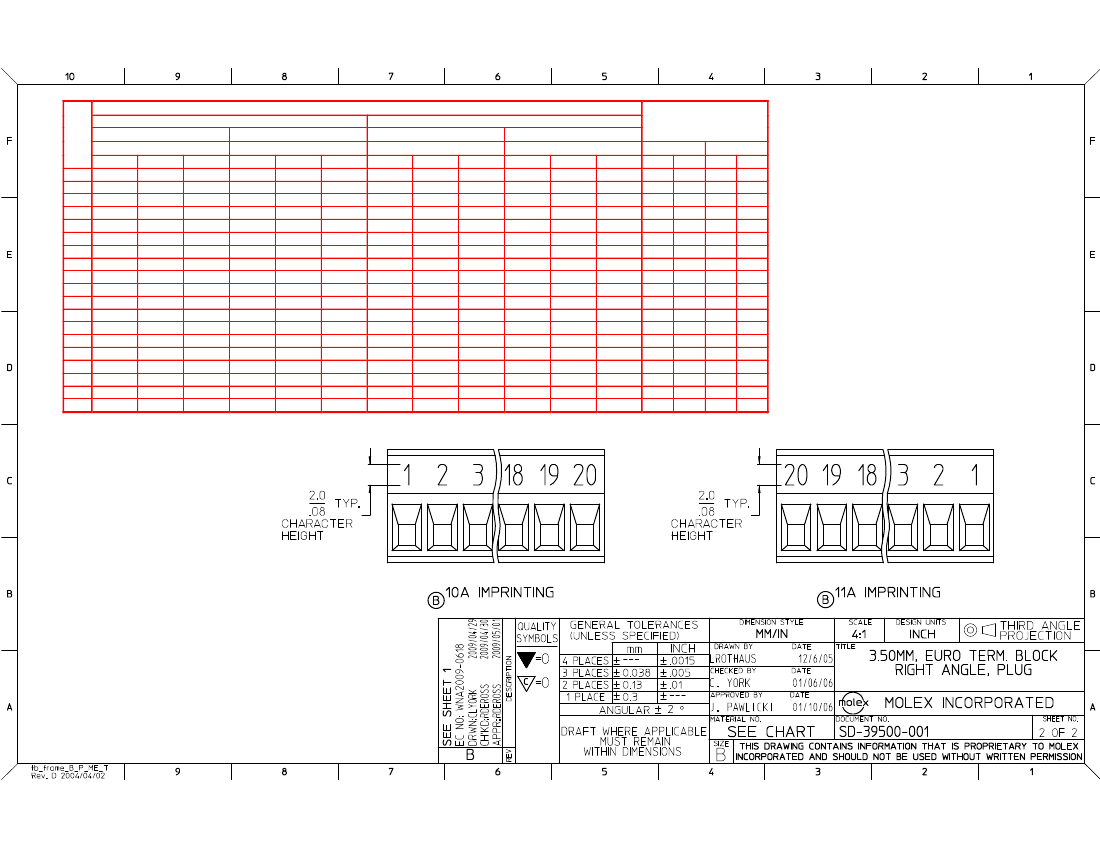

Sales Drawing

PS-39500-001

SD-39500-001

This document was generated on 04/22/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
