Part Number

Search

395311002

Description
5.08mm
CategoryThe connector    terminals
File Size263KB,6 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

395311002 Overview

5.08mm

395311002 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresPA66
Fastening methodSOLDER
Installation typeBOARD
Number of layers1
Rows1
Number of channels2
Rated current15 A
Rated voltage300 V
Terminal and terminal strip typesMODULAR TERMINAL BLOCK
This document was generated on 06/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
3D Model
Drawing (PDF)

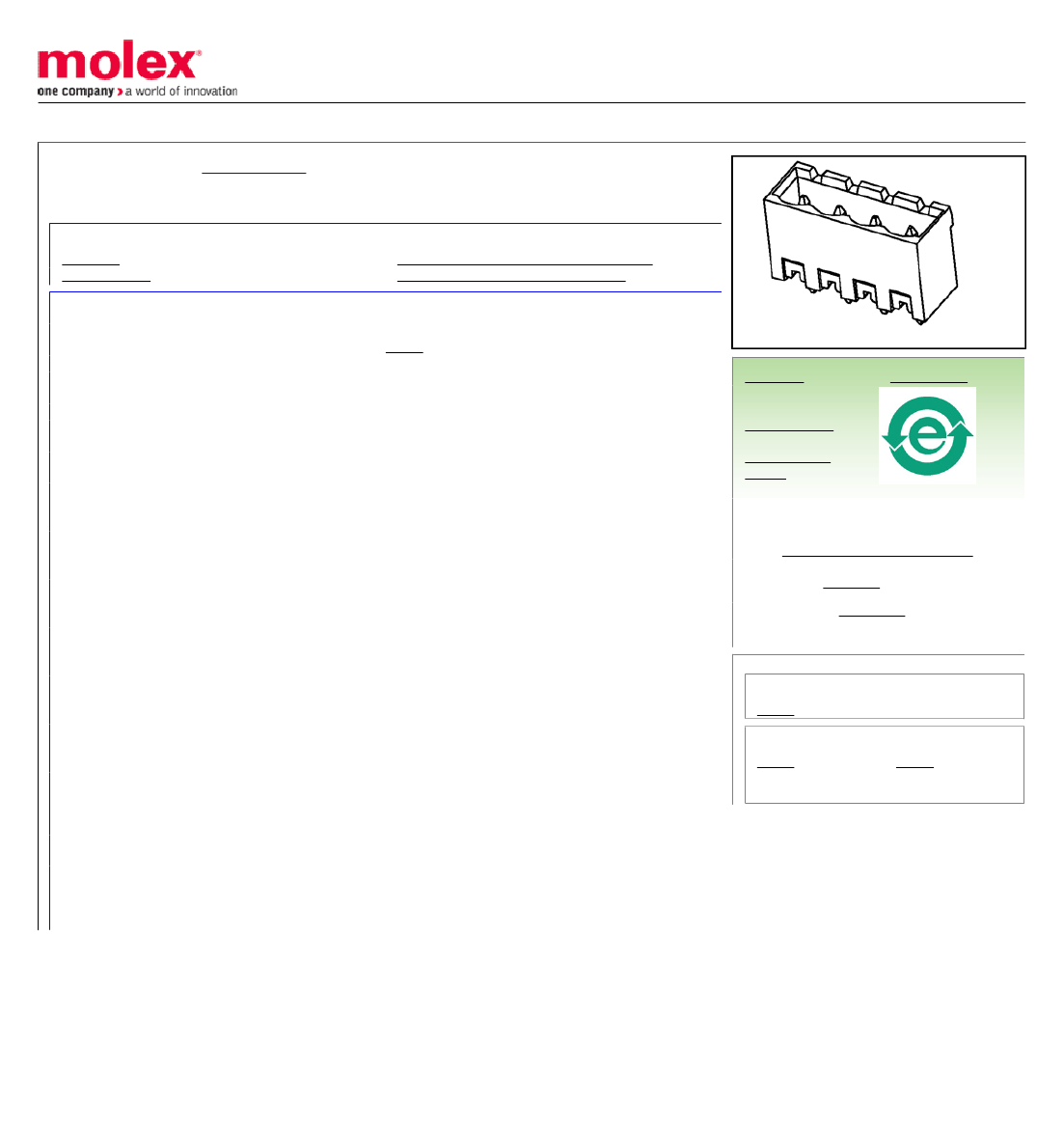

0395311002
Active
5.08mm (.200") Pitch Eurostyle™ Vertical PCB Header, 2 Circuits
Product Specification PS-39500-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
MolexKits
Product Literature Order No
Product Name
Type
Terminal Blocks
39531
Wire-to-Board
PCB Header
Yes
USA-355
ESE, Eurostyle™Pluggable
Euro Block
image - Reference only
Series
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Wire Size AWG
2
N/A
Yes
1
Vertical
0.200 In
5.08 mm
0.125 In
5.08 mm
No
0.200 In
5.08 mm
Yes
Closed Ends
No
N/A
-40°C to +105°C
N/A
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
39531Series
Mates With
39530 Horizontal Plug, 39533 Vertical
Plug, Most 5.08mm (.200") Pitch Industry
Standard Plugs
Electrical
Current - Maximum per Contact
Voltage - Maximum
15A
300V
Material Info
Reference - Drawing Numbers
Product Specification

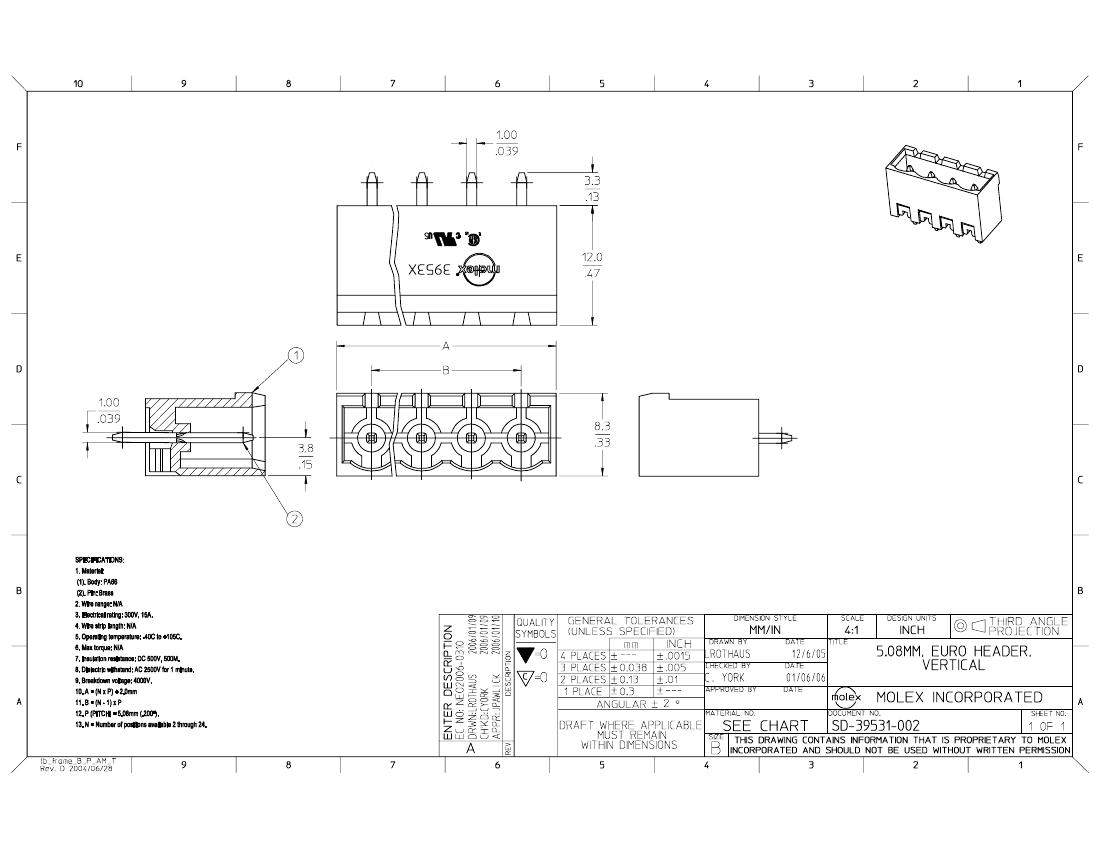

Sales Drawing
PS-39500-001
SD-39501-002, SD-39531-002
This document was generated on 06/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
