Part Number:
Status:
Description:
0395434305
Active
5.00mm (.197") Pitch Eurostyle™ 45° Wire Entry Fixed Mount PCB Terminal Block, 5
Circuits
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39543
Wire-to-Board
One Piece
USA-355
ESE, Eurostyle™Fixed Mount
Euro Block
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
5
45° Angle
None
1
45° Angle
0.173 In
4.40 mm
0.134 In
3.40 mm
No
0.197 In
5.00 mm
N/A
No
-40°C to +105°C
14, 16, 18, 20, 22
0.33 - 2.08
Search Parts in this Series
39543Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
10A
300V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
5
Wave Capable (TH only)
135
260
Material Info
Reference - Drawing Numbers
Sales Drawing
SD-39501-002, SD-39543-002
This document was generated on 04/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Material Numbers
Black
100% Tin
Circuit
size
Printing Options
None
395434302
395434303
395434304
395434305
395434306
395434307
395434308
395434309
395434310
395434311
395434312
395434313
395434314
395434315
395434316
395434317
395434318
395434319
395434320
395434321
395434322
395434323
395434324
10A
395436302
395436303
395436304
395436305
395436306
395436307
395436308
395436309
395436310
395436311
395436312
395436313
395436314
395436315
395436316
395436317
395436318
395436319
395436320
395436321
395436322
395436323
395436324
11A
395438302
395438303
395438304
395438305
395438306
395438307
395438308
395438309
395438310
395438311
395438312
395438313
395438314
395438315
395438316
395438317
395438318
395438319
395438320
395438321
395438322
395438323
395438324
None
395934302
395934303
395934304
395934305
395934306
395934307
395934308
395934309
395934310
395934311
395934312
395934313
395934314
395934315
395934316
395934317
395934318
395934319
395934320
395934321
395934322
395934323
395934324
Green
100% Tin
Printing Options
10A
395936302
395936303
395936304
395936305
395936306
395936307
395936308
395936309
395936310
395936311
395936312
395936313
395936314
395936315
395936316
395936317
395936318
395936319
395936320
395936321
395936322
395936323
395936324
11A
395938302
395938303
395938304
395938305
395938306
395938307
395938308
395938309
395938310
395938311
395938312
395938313
395938314
395938315
395938316
395938317
395938318
395938319
Dim. A
mm
inch
Dim B
mm
5.00
inch
0.197
Dimensional Information
Description

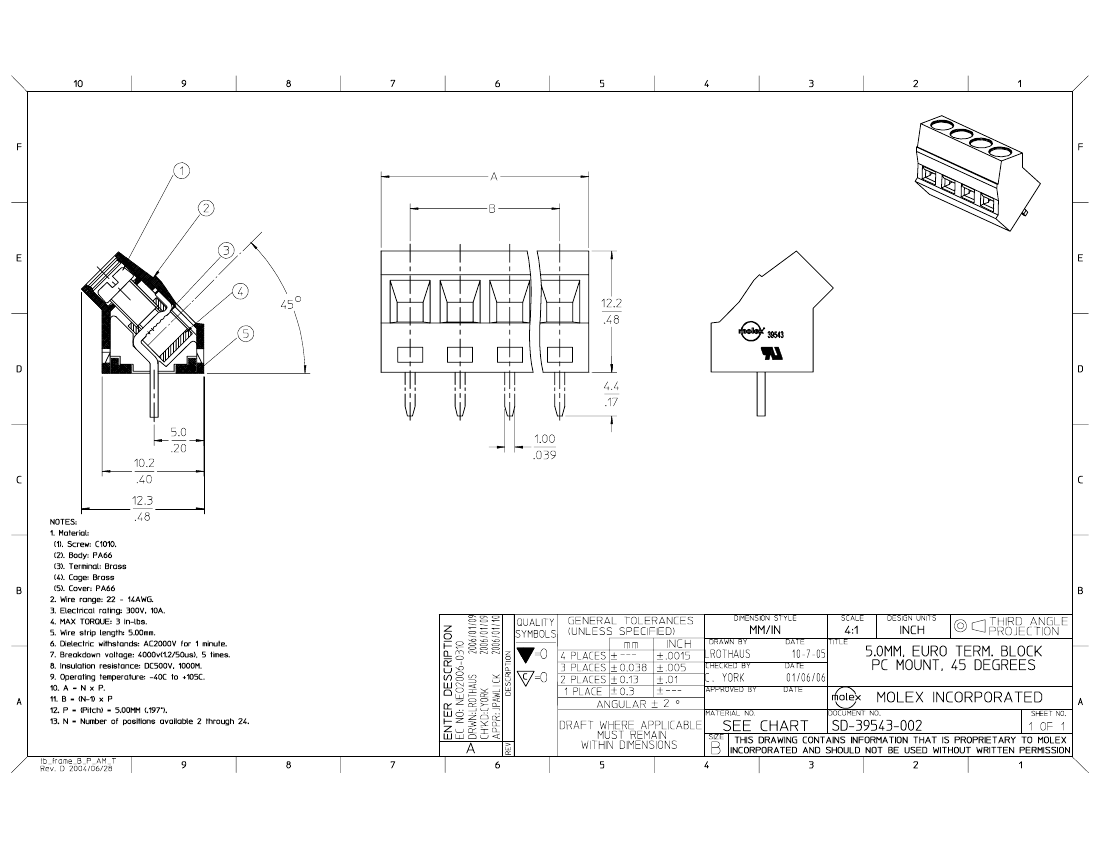

5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
5.0mm, Euro Block, PC Mount, 45 Deg
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
10.80 0.425
15.80 0.622 10.00 0.394
20.80 0.819 15.00 0.591
25.80 1.016 20.00 0.787
30.80 1.213 25.00 0.984
35.80 1.409 30.00 1.181
40.80 1.606 35.00 1.378
45.80 1.803 40.00 1.575
50.80 2.000 45.00 1.772
55.80 2.197 50.00 1.969
60.80 2.394 55.00 2.165
65.80 2.591 60.00 2.362
70.80 2.787 65.00 2.559
75.80 2.984 70.00 2.756
80.80 3.181 75.00 2.953
85.80 3.378 80.00 3.150
90.80 3.575 85.00 3.346
95.80 3.772 90.00 3.543
395938320 100.80 3.968 95.00 3.740
395938321 105.80 4.165 100.00 3.937
395938322 110.80 4.362 105.00 4.134
395938323 115.80 4.559 110.00 4.331
395938324 120.80 4.756 115.00 4.528
