395434502 Overview

5.00mm

395434502 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresPA66
Fastening methodSCREW
Installation typeBOARD
Number of layers1
Rows1
Number of channels2
Rated current10 A
Rated voltage300 V
Terminal and terminal strip typesMODULAR TERMINAL BLOCK
Wire gauge16 AWG

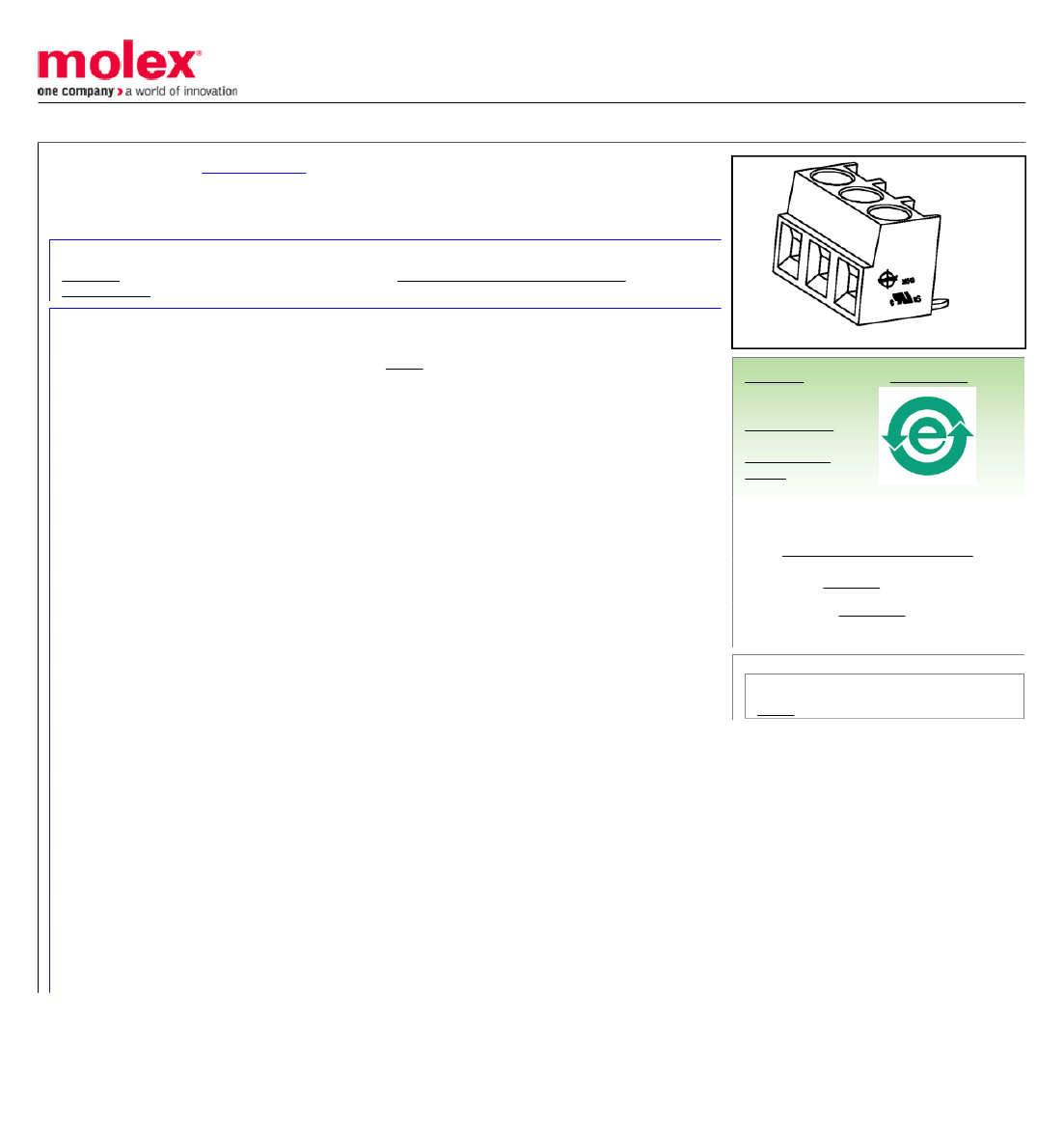

This document was generated on 04/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0395434502
Active
5.00mm (.197") Pitch Eurostyle™ Horizontal Fixed Mount PCB Terminal Block,
Modular, 2 Circuits
Documents:
3D Model

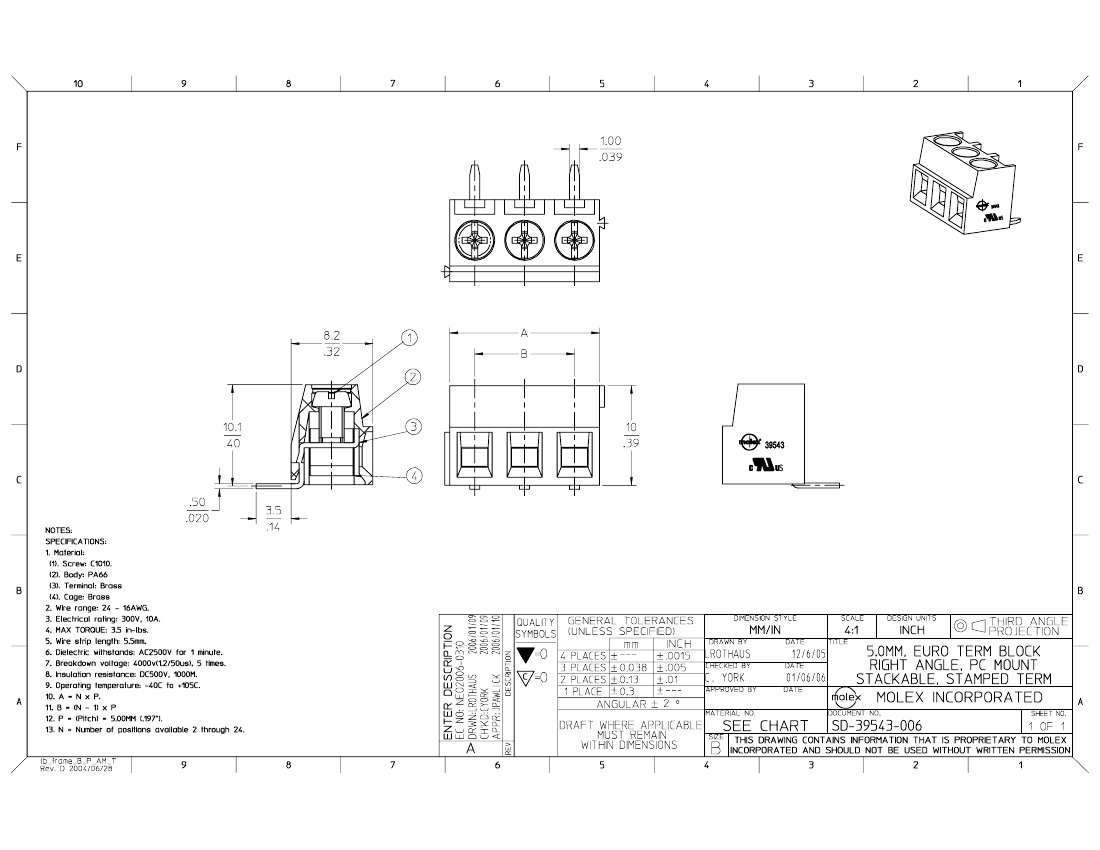

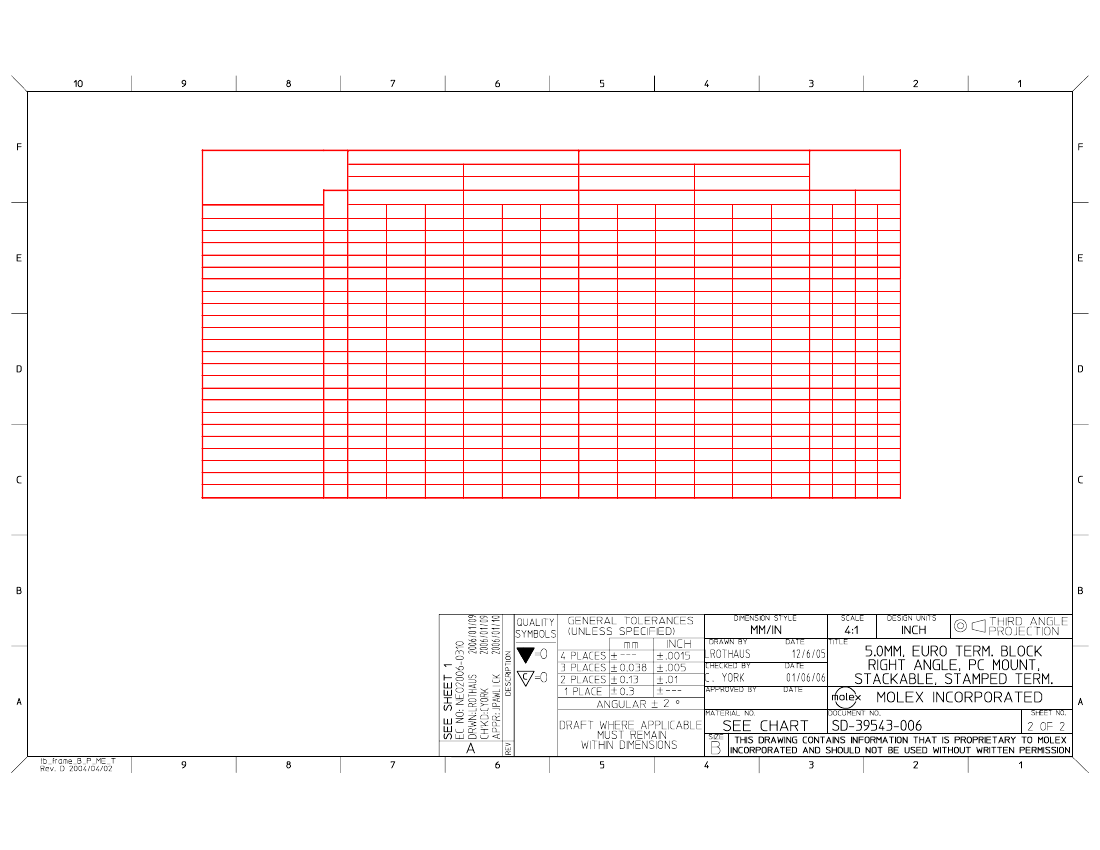

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39543
Wire-to-Board
One Piece
USA-355
ESE, Eurostyle™Fixed Mount
Euro Block
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
2
Vertical
None
1
Horizontal
0.138 In
3.50 mm
0.098 In
2.50 mm
No
0.197 In
5.00 mm
N/A
Yes
-40°C to +105°C
16, 18, 20, 22, 24
0.20 - 1.31
Search Parts in this Series
39543Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
10A
300V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
5
Wave Capable (TH only)
135
260
Material Info
Reference - Drawing Numbers
Sales Drawing
SD-39501-002, SD-39543-006
This document was generated on 04/27/2010
