22-05-2211 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 22-05-2211

22-05-2211: Description21 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size454KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

22-05-2211 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	22-05-2211	-	-	View	Buy Now

22-05-2211 Overview

21 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

22-05-2211 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	KK
body width	0.248 inch
subject depth	0.092 inch
body length	2.09 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	50000000000 Ω
Insulator color	RED
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	4094
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	75 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	4 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.124 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	21
UL Flammability Code	94V-0
Base Number Matches	1

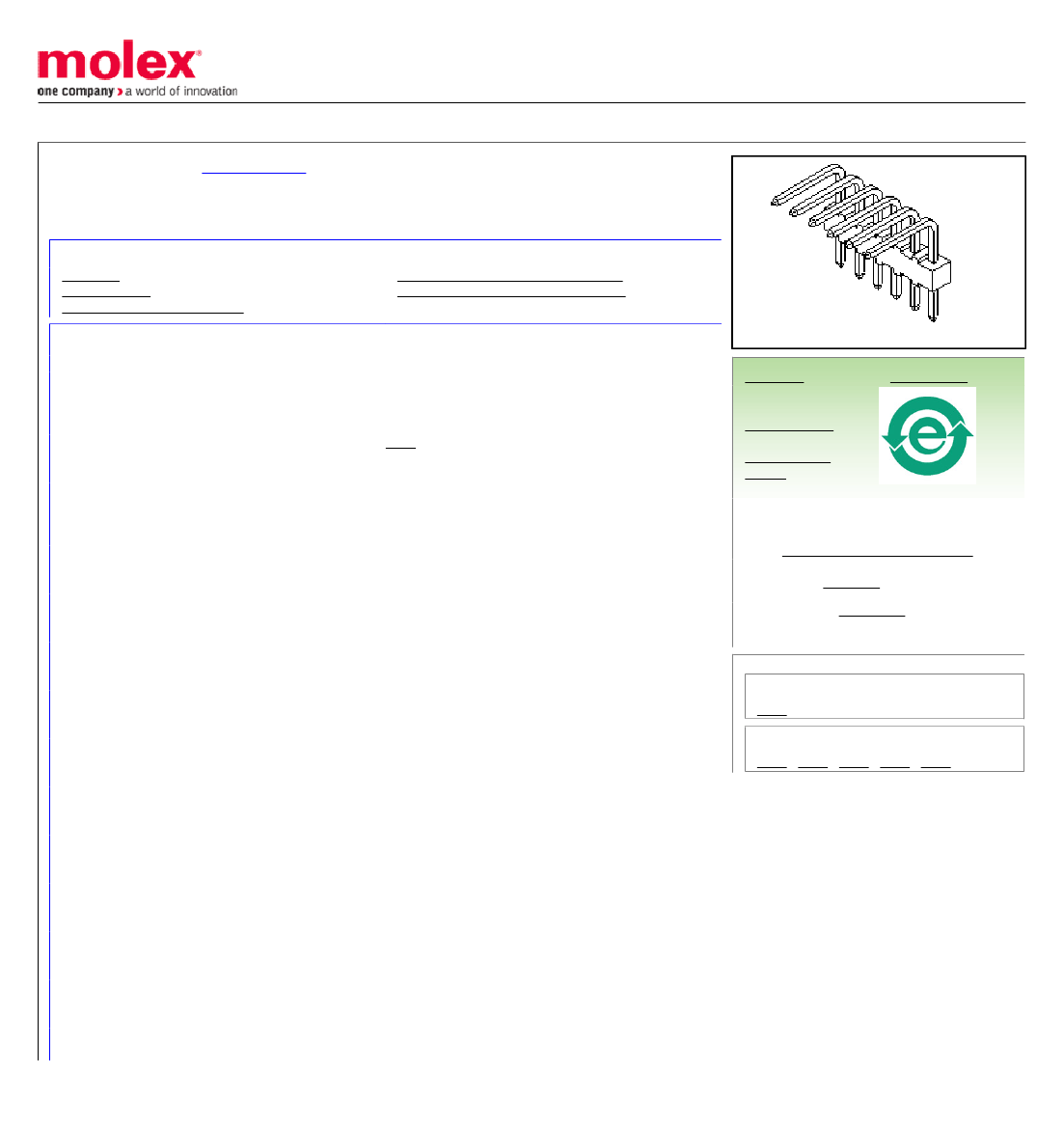

Preview

Download Datasheet

View All

This document was generated on 04/08/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0022052211

Active

2.54mm (.100") Pitch KK® Wire-to-Board Header, Single Row, Right Angle, 21 Circuits,

PA Polyamide Nylon, Tin (Sn) Plating

Documents:

3D Model

Drawing (PDF)

Packaging Specification (PDF)

Product Specification PS-10-07 (PDF)

RoHS Certificate of Compliance (PDF)

Series

Agency Certification

CSA

LR19980

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Product Name

PCB Headers

4094

Board-to-Board, Wire-to-Board

KK®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural (White)

94V-0

None

Brass

Tin

Nylon

Right Angle

0.124 In

3.15 mm

None

0.062 In

1.60 mm

Bag

0.100 In

2.54 mm

200

Yes

0°C to +75°C

Through Hole

Search Parts in this Series

4094Series

Mates With

2695 , 6471 , 7880 , 4455 , 7720

22-05-2211 Related Products

	22-05-2211	A-4094-21A102	0022052211
Description	21 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	21 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	21 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
Is it Rohs certified?	conform to	-	conform to
package instruction	ROHS COMPLIANT	-	ROHS COMPLIANT
Reach Compliance Code	compli	-	unknown
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	TIN
Contact point gender	MALE	-	MALE
Contact material	NOT SPECIFIED	-	BRASS
DIN compliance	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
MIL compliance	NO	-	NO
Manufacturer's serial number	4094	-	4094
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	-	NO
Installation method	RIGHT ANGLE	-	RIGHT ANGLE
Installation type	BOARD	-	BOARD
Number of rows loaded	1	-	1
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Terminal pitch	2.54 mm	-	2.54 mm
Termination type	SOLDER	-	SOLDER
Total number of contacts	21	-	21
UL Flammability Code	94V-0	-	94V-0
Base Number Matches	1	-	1
