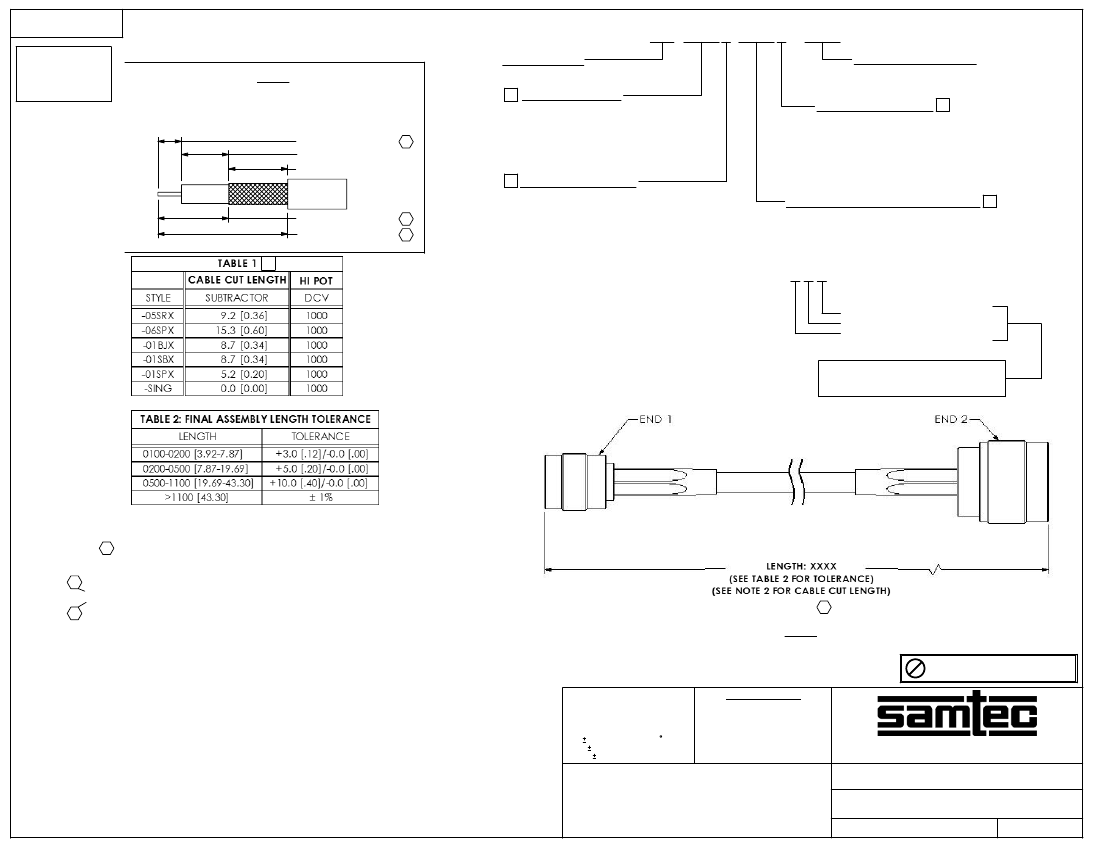

REVISION L
DO NOT
SCALE FROM
THIS PRINT
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
FIG.2
RF058-XXXXX-XXXXXX-XXXX
L
END 1 CONNECTOR
OVERALL CABLE LENGTH
MILLIMETERS OF CABLE
0100 MIN. (SEE NOTE 8 & 9)
END 2 PLATING OPTION
L
1: GOLD ALL COMPONENTS
2: GOLD/NICKEL
3: ALTERNATE GOLD / NICKEL
7. ALTERNATE GOLD MEDIUM/ GOLD FLASH
(SEE SHEET 2 FOR PLATING SPECIFICS)
(LEAVE BLANK FOR -SING OR -XXXXXX
END 2 PREPARATION)
END 2 CONNECTOR OR PREPARATION
L
-05SR: TNC-P-C-XX-SR-C10 (SEE SHEET 2)
-06SP: NTPE-P-C-XX-ST-C10 (SEE SHEET 2)
* -01BJ: SMA-J-C-XX-ST-B10 (SEE SHEET 2)
* -01SB: SMA-J-C-XX-ST-S10 (SEE SHEET 2)
* -01SP: SMA-P-C-XX-ST-C10 (SEE SHEET 2)
-SING: SINGLE ENDED (ONE END ONLY, SEE NOTE 11)
-XXXXXX: STRIPPED AND TINNED (THIS END ONLY-
SEE NOTES 11-16 & SHEET 2, FIG. 3)
(SEE FIG. 2) "C" FORMAT: X.X mm
(SEE FIG. 2) "B" FORMAT: X.X mm
(SEE FIG. 2) "A" FORMAT: X.X mm
DO NOT LEAVE ANY SPACE BLANK,
EACH MUST CONTAIN A
NUMERIC CHARACTER 0 THRU 9.
CABLE CALLOUT
058: CCA-058 (RG-58 COAXIAL CABLE)
-05SR: TNC-P-C-XX-SR-C10 (SEE SHEET 2)
-06SP: NTPE-P-C-XX-ST-C10 (SEE SHEET 2)
* -01BJ: SMA-J-C-XX-ST-B10 (SEE SHEET 2)
* -01SB: SMA-J-C-XX-ST-S10 (SEE SHEET 2)
* -01SP: SMA-P-C-XX-ST-C10 (SEE SHEET 2)
CABLE STRIPPING DIMENSIONS
PER CONFIGURATIONS
(SEE TABLE 1)(SEE NOTES 12,13,14,15)
"A" mm
"B" mm
"C" mm
C
L
END 1 PLATING OPTION
C
C
"D" mm
"E" mm
1: GOLD ALL COMPONENTS
2: GOLD/NICKEL
3: ALTERNATE GOLD / NICKEL
7. ALTERNATE GOLD MEDIUM/ GOLD FLASH
(SEE SHEET 2 FOR PLATING SPECIFICS)
(* = NOT RELEASED FOR PRODUCTION)
L
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION
2. CABLE CUT LENGTH:
= (LENGTH: XXXX) - (SUBTRACTOR FOR END 1) - (SUBTRACTOR FOR END 2).
(SEE TABLE 1 FOR SUBTRACTORS)
C
3. ASSEMBLY TO BE 100% TESTED FOR OPENS & SHORTS
4. ASSEMBLY TO BE 100% HI-POT TESTED PER TABLE 1
C
5. AFTER FINAL ELECTRICAL TESTS, LABEL EACH CABLE ASSEMBLY WITH 1 LABEL -ET
6. CRITICALS ON CONNECTOR PRINTS TO BE CHECKED IN PROCESS
7. FINISHED ASSEMBLIES TO BE PACKAGED PER PACKAGING STANDARD CO-HD-WI-3033-M.
8. CABLE STOCKED IN INCHES, 1 INCH = 25.4 MILLIMETERS
9. CABLE LENGTHS LONGER THAN 1000 MILLIMETERS ARE NOT SUPPORTED BY S.I. TEST DATA
10. MINIMUM BEND RADIUS FOR RG058 = 48.3 [1.90]
11. FOR SING ENDED OR STRIPPED AND TINNED ASSEMBLIES: MAKE A DOUBLE ENDED
ASSEMBLY AT TWICE THE CABLE LENGTH AND TEST BEFORE CUTTING ASSEMBLY IN HALF.
12. DIM "A", "B", AND "C" HAVE A MINIMUM VALUE OF 0.0mm & A MAXIMUM VALUE OF 9.9mm
13. PRODUCTION OF STRIP AND TIN FOR CENTER DIELECTIC USE: A
14. PRODUCTION OF STRIP AND TIN FOR SHIELD USE: D=A+B
15. PRODUCTION OF STRIP AND TIN FOR JACKET USE: E=A+B+C
16. FOR STRIPPED AND TINNED OPTION, ONLY THE CENTER CONDUCTOR IS TINNED
C
RF058-05SRX-06SPX-XXXX SHOWN
Pb
THIS PRODUCT MANUFACTURED
WITH LEAD-FREE PROCESSING
FIG.1
F:\DWG\MISC\MKTG\RF058-XXXXX-XXXXXX-XXXX-MKT.SLDDRW
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN
MILLIMETERS [INCHES].
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
TOLERANCES ARE:
DECIMALS
.X: 0.3 [.01]
2
.XX: 0.13 [.005]
.XXX: 0.051 [.0020]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
SEE END 1 AND END 2 ASSEMBLY PRINTS
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
RF058 CABLE ASSEMBLY
RF058-XXXXX-XXXXXX-XXXX
5/6/2005
BY:
TIM P.
SHEET
1
OF
2
REVISION L

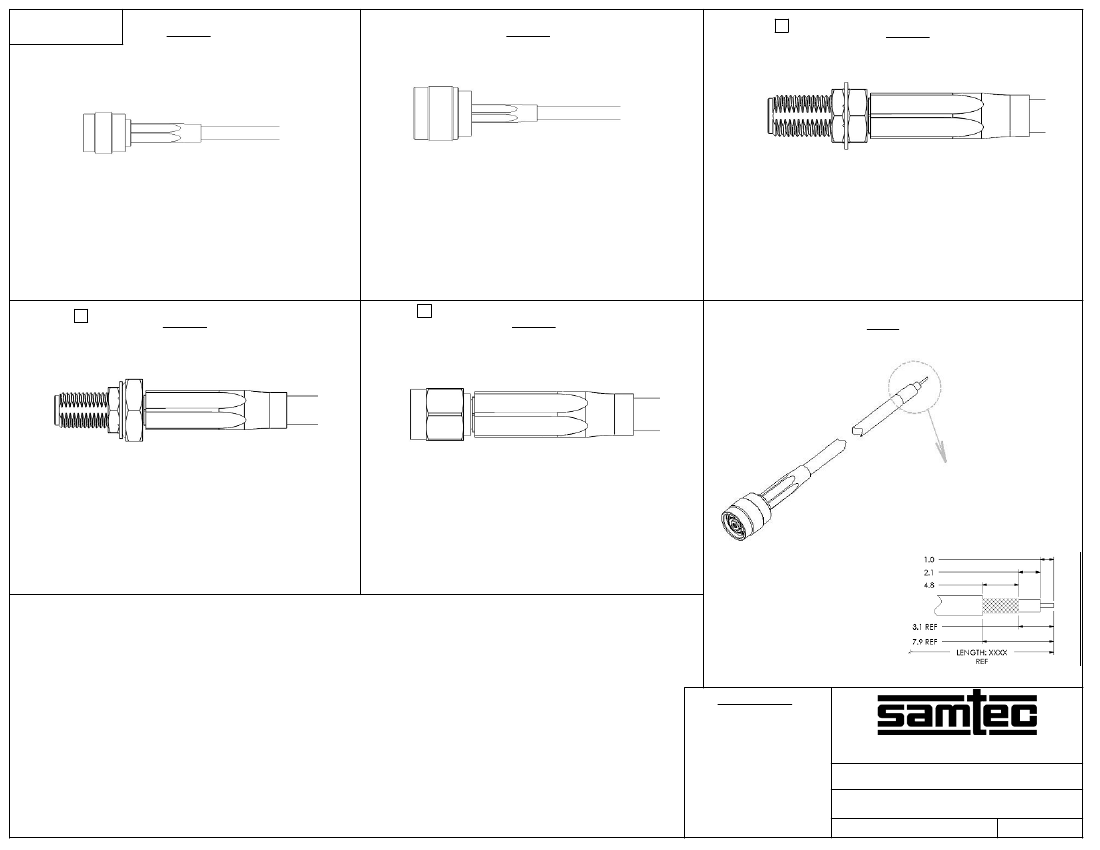

(STRAIGHT PLUG)
-05SR
(STRAIGHT PLUG)
(USE DRAWING No. NTPE-P-C-XX-ST-C10
FOR ASSEMBLY INSTRUCTIONS)
-06SP
L
(STRAIGHT BULKHEAD JACK)
(USE DRAWING No. SMA-J-C-XX-ST-B10
FOR ASSEMBLY INSTRUCTIONS)
*-01BJ
(USE DRAWING No. TNC-P-C-XX-SR-C10
FOR ASSEMBLY INSTRUCTIONS)
PLATING OPTION
3: 10μ" MIN. GOLD CENTER CONTACT
100μ" MIN. NICKEL OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: TNC-P-C-GN-SR-C10)
NOTE: ALL CRITICAL DIMENSIONS ON TNC-P-C-XX-SR-C10
THAT APPLY MUST BE VERIFIED.
PLATING OPTIONS
2: 30μ" MIN. GOLD CENTER CONTACT
100μ" MIN. NICKEL OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: NTPE-P-C-HN-ST-C10)
3: 10μ" MIN. GOLD CENTER CONTACT
100μ" MIN. NICKEL OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: NTPE-P-C-GN-ST-C10)
NOTE: ALL CRITICAL DIMENSIONS ON NTPE-P-C-XX-ST-C10
THAT APPLY MUST BE VERIFIED.
PLATING OPTIONS
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMA-J-C-H-ST-B10)
7: 10μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMA-J-C-GF-ST-B10)
NOTE: ALL CRITICAL DIMENSIONS ON SMA-J-C-XX-ST-B10
THAT APPLY MUST BE VERIFIED.
L
(SEALED STRAIGHT BULKHEAD JACK)
(USE DRAWING No. SMA-J-C-XX-ST-S10
FOR ASSEMBLY INSTRUCTIONS)
*-01SB
L
(STRAIGHT PLUG)
(USE DRAWING No. SMA-P-C-XX-ST-C10
FOR ASSEMBLY INSTRUCTIONS)
*-01SP
RF058-05SRX-102148-XXXX SHOWN
FIG.3
PLATING OPTIONS
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMA-J-C-H-ST-S10)
7: 10μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMA-J-C-GF-ST-S10)
NOTE: ALL CRITICAL DIMENSIONS ON SMA-J-C-XX-ST-S10
THAT APPLY MUST BE VERIFIED.
PLATING OPTIONS
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMA-P-C-H-ST-C10)
7: 10μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMA-P-C-GF-ST-C10)
NOTE: ALL CRITICAL DIMENSIONS ON SMA-P-C-XX-ST-C10
THAT APPLY MUST BE VERIFIED.
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
RF058 CABLE ASSEMBLY
RF058-XXXXX-XXXXXX-XXXX
5/6/2005
F:\DWG\MISC\MKTG\RF058-XXXXX-XXXXXX-XXXX-MKT.SLDDRW
BY:
TIM P.
SHEET
2
OF
2
