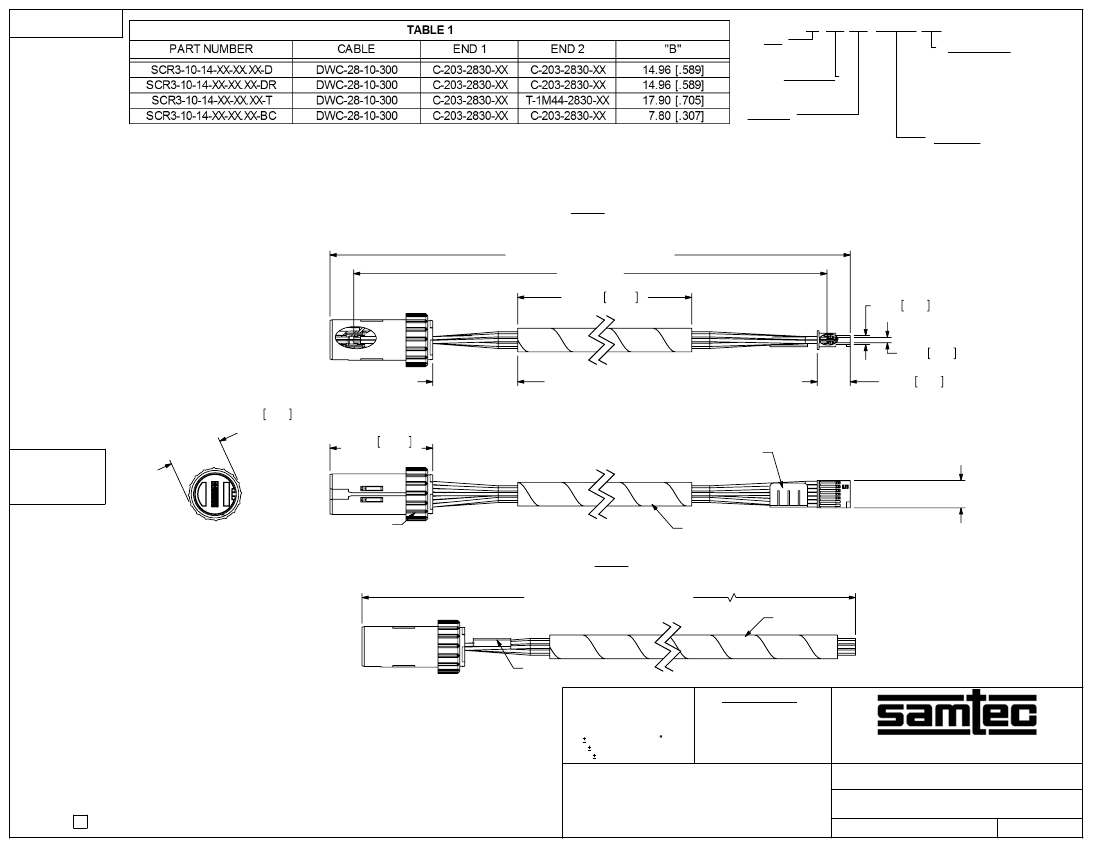

REVISION L
SCR3-10-14-XX-XX.XX-XX
SIZE
-10
POSITIONS
-14
PLATING
-GF: GOLD FLASH
-G: LIGHT SELECTIVE GOLD
-H: HEAVY GOLD
END OPTION
-D: DOUBLE
-DR: DOUBLE LATCHING
(SEE SHT 2, FIG 4)
-T: TRANSFER END
(SEE SHT 2, FIG 5)
-BC: BLUNT CUT
(SEE FIG. 2)
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
SCR3-10-14-XX-XX.XX-D SHOWN
ASSEMBLY LENGTH: XX.XX + "B"
XX.XX ±2%
114.30 4.500
LENGTH*
-XX.XX: (IN METER)
-00.25[9.84] MIN,
-01.00[39.37] MAX
FIG. 1
*NOTE:
-00.25, -00.50, AND -01.00 ARE CATALOG STANDARD
LENGTHS. FOR OTHER LENGTHS CONTACT SAMTEC.
3.05 .120 REF
1.78 .070 REF
CENTER OVER CABLE (XX.XX) ±30
18.08 .712
REF
DO NOT
SCALE FROM
THIS PRINT
11.18 .440 REF
END 1
34.79 1.370
REF
LABEL-ET
END 2
((No OF POS X 1.27[.050])/2) + .38[.015]
SPN-10-02
CWP-01
SCR3-10-14-XX-XX.XX-BC SHOWN
ASSEMBLY LENGTH: XX.XX + "B"
CWP-01
FIG. 2
NOTES:
LABEL-ET
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
L
1.
REPRESENTS A CRITICAL DIMENSION.
2. ASSEMBLY TO BE 100% TESTED FOR OPENS AND SHORTS.
3. NOTE DELETED.
4. NOTE DELETED.
5. WIRING TO BE POS 1 TO POS 1, POS 2 TO POS 2, POS 3 TO POS 3, ETC.
6. ASSEMBLY TO BE 100% HI-POT TESTED AT 1000V DC. AFTER FINAL ELECTRICAL
TEST, LABEL EACH ASSEMBLY WITH 1 LABEL-ET.
7. PANEL THICKNESS: 0.08[.03] - 5.2[.205].
8. ASSEMBLY TO BE SHIPPED WITH SUB-SCRX-10-01 IN SEAL-TOP BAGS, SEE FIG. 3, SHEET 2.
9. MINIMUM RETENTION FORCE FROM WIRE TO PULLOUT OF BODY: 2.22N[.5 LBS].
10. PUSHOUT FORCE ON BODY: 13.34N[3 LBS].
11. REFER TO CRIMP SPECIFICETIONS PRINT FOR CRIMP AND STRIP DIMENSIONS,
TOLERANCING, AND TOOLING.
12. NOTE REMOVED.
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
TOLERANCES ARE:
DECIMALS
.X: 0.3 [.01]
2
.XX: 0.13 [.005]
.XXX: 0.051 [.0020]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
SUB-SCR3-10-14-01: PBT
ISDF-05-D: LCP
CONTACTS: BeCu
SPN-10-02: PA66
DO NOT SCALE DRAWING
SHEET SCALE: 1:1.33333
UNSEALED 28 AWG CABLE ASSEMBLY
F:\DWG\MISC\MKTG\SCR3-10-14-XX-XX.XX-XX-MKT.SLDDRW
BY:
SCR3-10-14-XX-XX.XX-XX
LENNY K
7/18/06
SHEET
1
OF
6
REVISION L

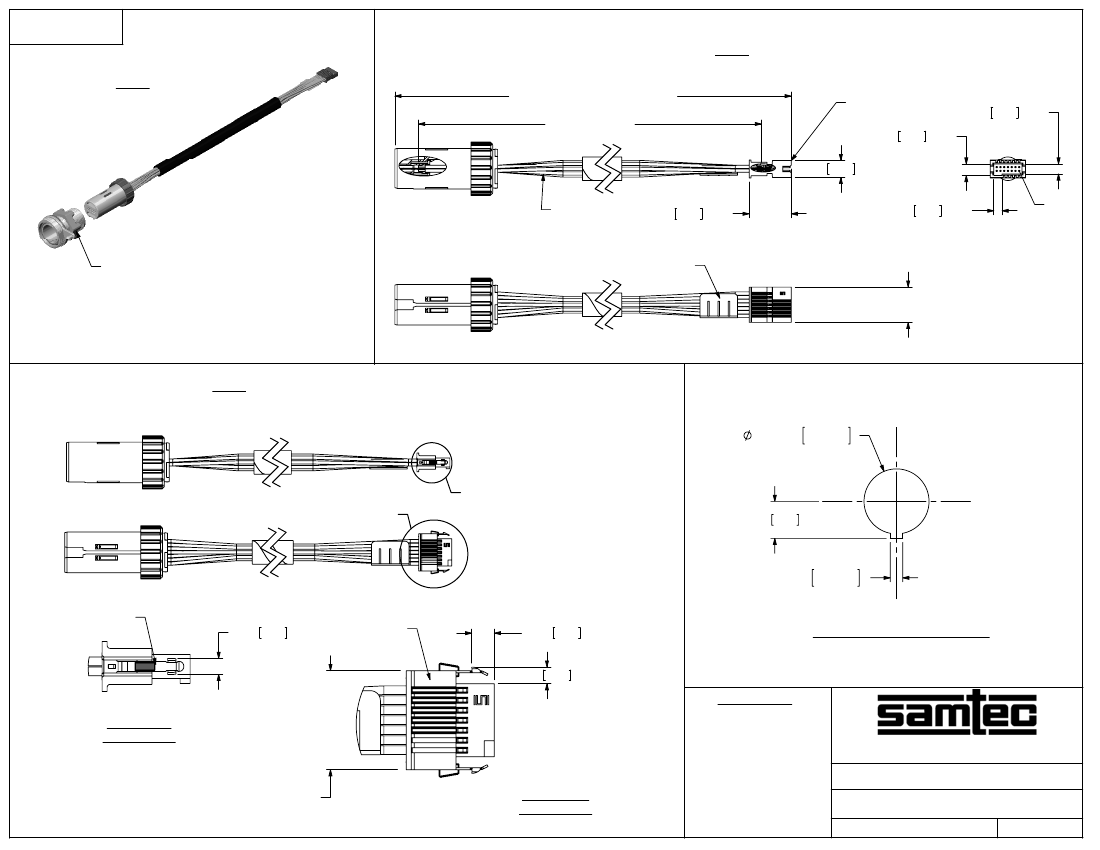

FIG. 3
SCR3-10-14-X-XX.XX-T SHOWN AS SHIPPED
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
ASSEMBLE LENGTH: XX.XX + "B"
LENGTH: XX.XX
TFSD-XX-D-S
3.89 .153 REF
5.72 .225 REF
01
FIG. 5
SCR3-10-14-X-XX.XX-D SHOWN AS SHIPPED
(SEE NOTE 8)
3.38 .133 REF
SEE TABLE 1
14.26 .562 REF
2.79 .110 REF
SOME COMPONENTS
REMOVED FOR CLARITY
SUB-SCRX-10-01
(PANEL MOUNT HARDWARE)
CABLES SHIPPED WITH PANEL MOUNT
HARDWARE BUT NOT ASSEMBLED
TOGETHER.
LABEL-ET
((No OF POS X .050[1.27])/2) + .100[2.54]
SCR3-10-14-XX-XX.XX-DR SHOWN AS SHIPPED
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
16.51
- 0.52
.650
- .020
+0.00
+.000
FIG. 4
'B'
'A'
9.39 .370
3.18
- 0.13
.125
- .005
SUB-IM-LTC-07-01-N
2.03 .080
REF
+0.00
+.000
ISDF-XX-D-R
2.86 .113
RECOMMENDED PANEL HOLE
(SEE NOTE 7)
2.11 .083
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
DETAIL 'B'
SCALE 2 : 1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
No OF POS x .050[1.27] + .145[3.68] REF
DETAIL 'A'
SCALE 2 : 1
F:\DWG\MISC\MKTG\SCR3-10-14-XX-XX.XX-XX-MKT.SLDDRW
DO NOT SCALE DRAWING
SHEET SCALE: 0.75:1
UNSEALED 28 AWG CABLE ASSEMBLY
SCR3-10-14-XX-XX.XX-XX
LENNY K
7/18/06
BY:
SHEET
2
OF
6
REVISION L

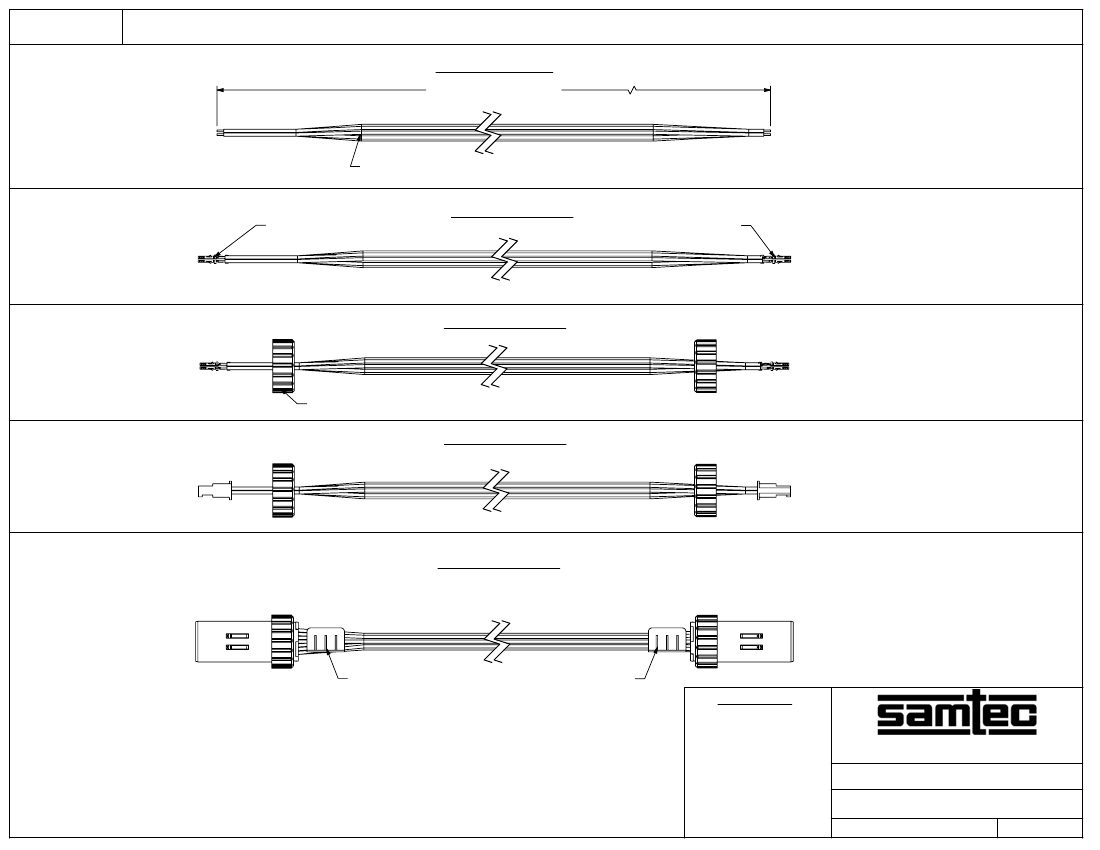

IN-PROCESS VIEWS FOR -D END OPTIONS
