22-43-8104 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 22-43-8104

22-43-8104: Description10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size106KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

22-43-8104 Overview

10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

22-43-8104 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	SPOX, POLARIZED, SHROUDED
body width	0.164 inch
subject depth	0.283 inch
body length	1.079 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	17.792 N
Insulation resistance	1000000000 Ω
Insulator color	YELLOW
insulator material	POLYESTER
MIL compliance	NO
Manufacturer's serial number	42267
Plug contact pitch	0.098 inch
Plug information	NO
Mixed contacts	NO
Installation option 1	DETENT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Evacuation force-minimum value	1.4734 N
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 06/08/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

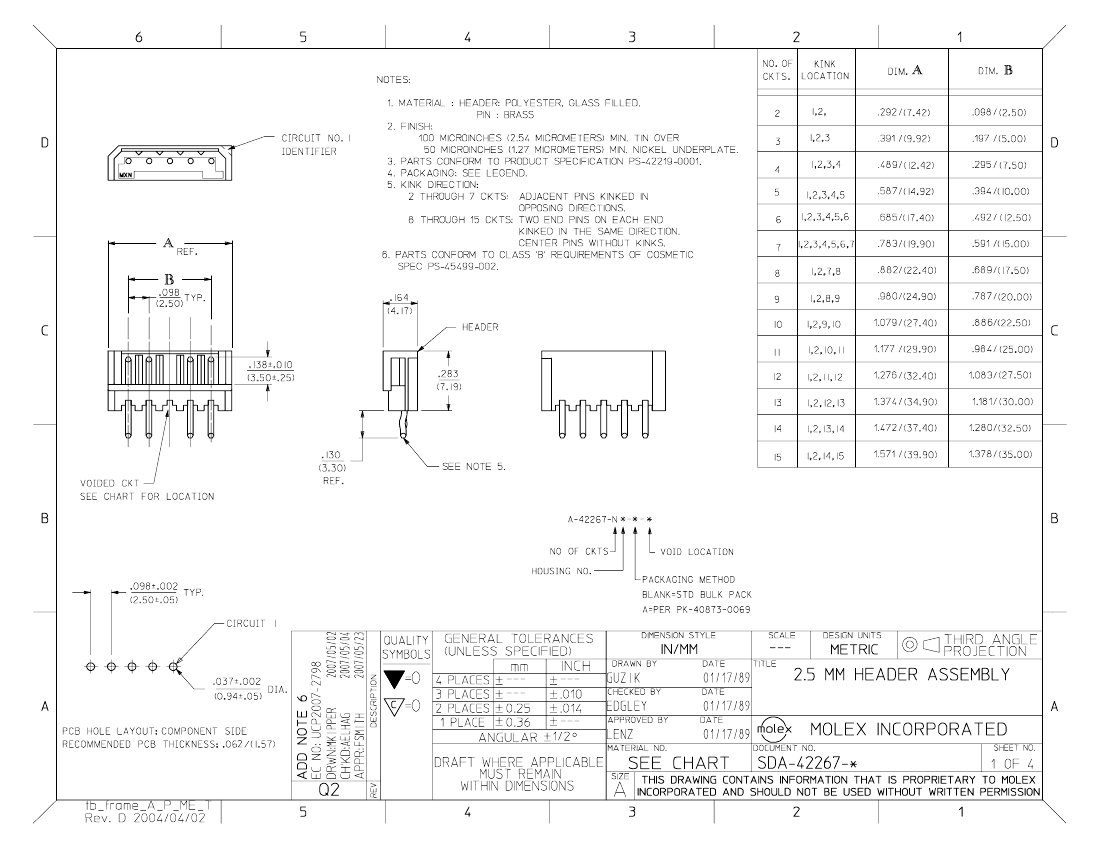

Drawing (PDF)

0022438104

Active

2.50mm (.098") Pitch SPOX™ Header, Shrouded, In-line Footprint, 10 Circuits, Yellow

Product Specification PS-42219-0001 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

Series

image - Reference only

EU RoHS

China RoHS

Compliance Status

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Product Name

PCB Headers

42267

Wire-to-Board

SPOX™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Plating Mating

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

94V-0

None

Tin

Vertical

0.130 In

3.30 mm

Yes

0.062 In

1.60 mm

Bag

0.098 In

2.50 mm

Yes

Partial

0°C to +75°C

Through Hole

Search Parts in this Series

42267Series

Mates With

42219

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Solder Process Data

Lead-free Process Capability

Process Temperature max. C

Wave Capable (TH only)

230

Material Info

Reference - Drawing Numbers

Application Specification

AS-42249-001

22-43-8104 Related Products

	22-43-8104	A-42267-10F	0022438104
Description	10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Reach Compliance Code	unknow	unknown	-
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	-
Contact to complete cooperation	SN	NOT SPECIFIED	-
Contact completed and terminated	GOLD	TIN (100) OVER NICKEL	-
Contact point gender	MALE	MALE	-
DIN compliance	NO	NO	-
Filter function	NO	NO	-
IEC compliance	NO	NO	-
MIL compliance	NO	NO	-
Manufacturer's serial number	42267	A-42267	-
Mixed contacts	NO	NO	-
Installation method	STRAIGHT	STRAIGHT	-
Installation type	BOARD	BOARD	-
Number of rows loaded	1	1	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	-
Terminal pitch	2.5 mm	2.5 mm	-
Termination type	SOLDER	SOLDER	-
Total number of contacts	10	10	-
Base Number Matches	1	1	-
