Part Number:
Status:
Overview:
Description:
0365120196
Active
din_41612
2.54mm (.100") Pitch DIN 41612 Header, Vertical, Through Hole, 0.4µm (16µ")
Selective Gold (Au), 48 Circuits, PC Tail Length 2.900mm (.114"),Lead Free
Documents:

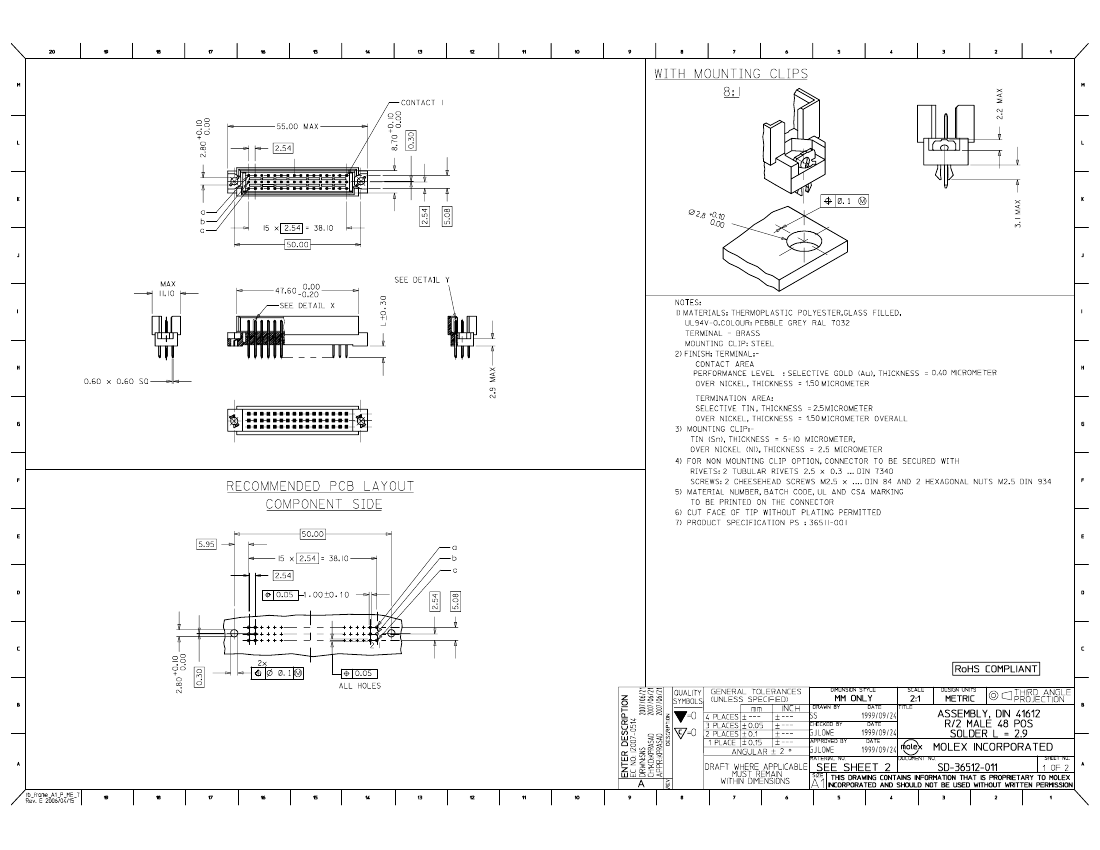

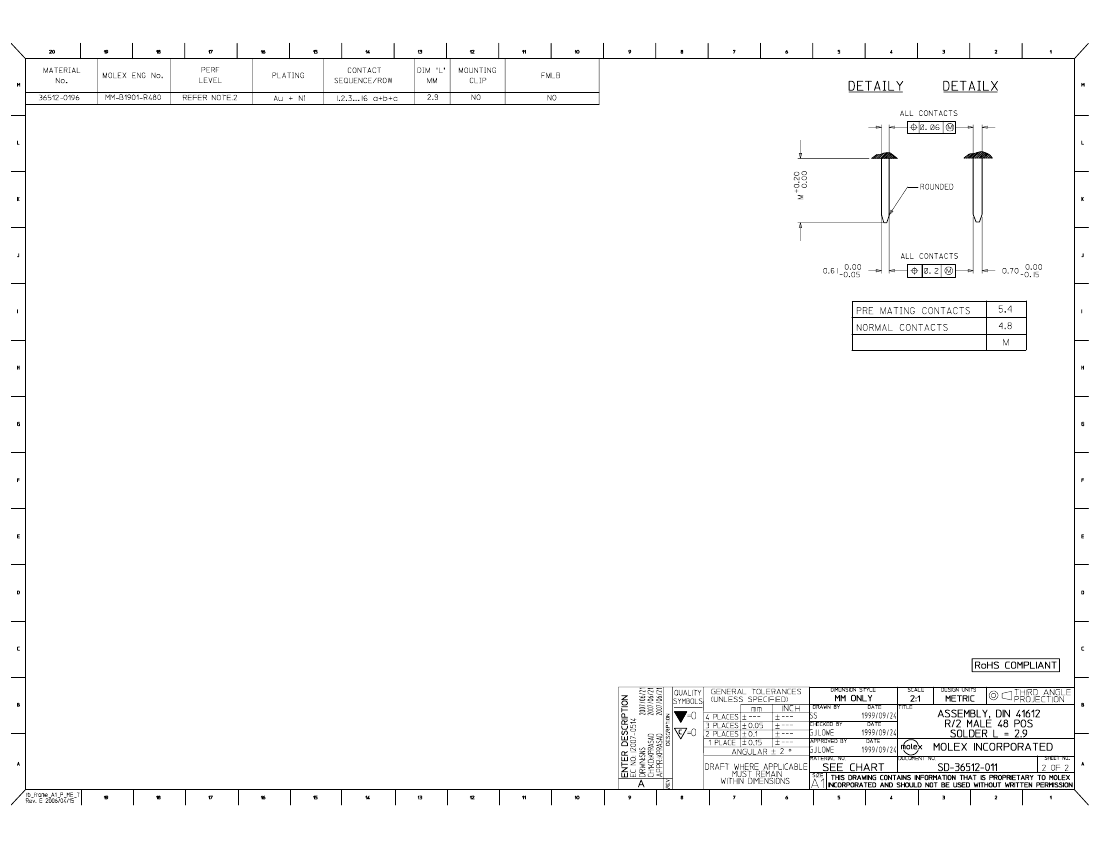

Drawing (PDF)
Product Specification PS-36511-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
General
Product Family
Series
Application
Component Type
Overview
Product Name
Style
Backplane Connectors
36512
Backplane
PCB Header
din_41612
IEC 603-2/DIN 41612
R/2
image - Reference only
EU RoHS
China RoHS
Compliance Status
Not Reviewed
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
48
48
1,2,3,...16; a+b+c
Gray
Contact Molex
No
No
None
Brass
Gold
Tin
Polyester
16
Open Pin Field
2
Vertical
0.114 In
2.90 mm
No
Yes
0.062 In, 0.125 In
1.60 mm, 3.20 mm
Bag
0.100 In
2.54 mm
0.100 In
2.54 mm
16
0.40
No
No
No
-55°C to +125°C
Through Hole
Search Parts in this Series
36512Series
Mates With
36510 PCB Receptacle
Electrical
Current - Maximum per Contact
Data Rate
Voltage - Maximum
1A
622.0 Mbps
N/A
Material Info
Old Part Number
MMB1901R480
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-36512-001
PS-36511-001
SD-36512-011
