38-00-5371

Description
18 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size429KB,6 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

38-00-5371 Overview

18 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

38-00-5371 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN (200)
Contact completed and terminatedTIN (200)
Contact point genderMALE
Contact materialBRASS
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number6410
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts18
UL Flammability Code94V-0
Base Number Matches1
This document was generated on 05/26/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0038005371
Active
kk
2.54mm (.100") Pitch KK® Wire-to-Board Header, Vertical Square Pin, 19 Circuits,
Circuit 12 Voided
Documents:

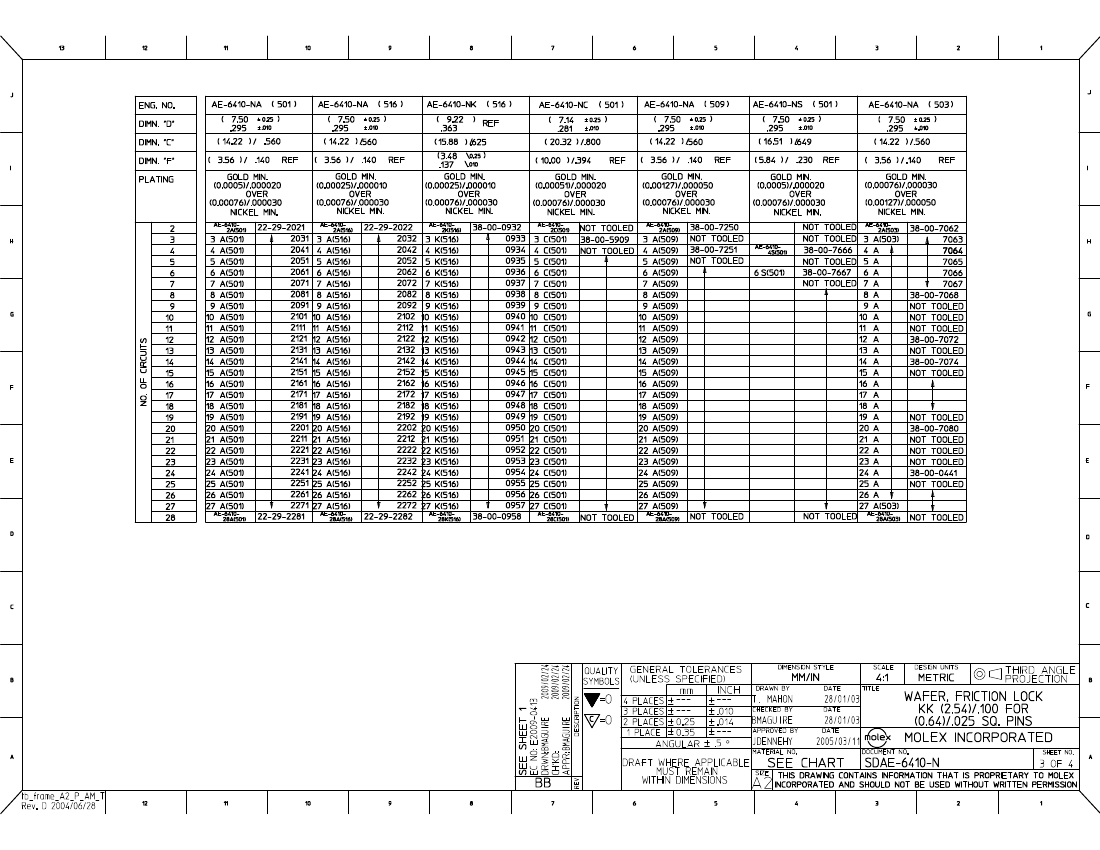

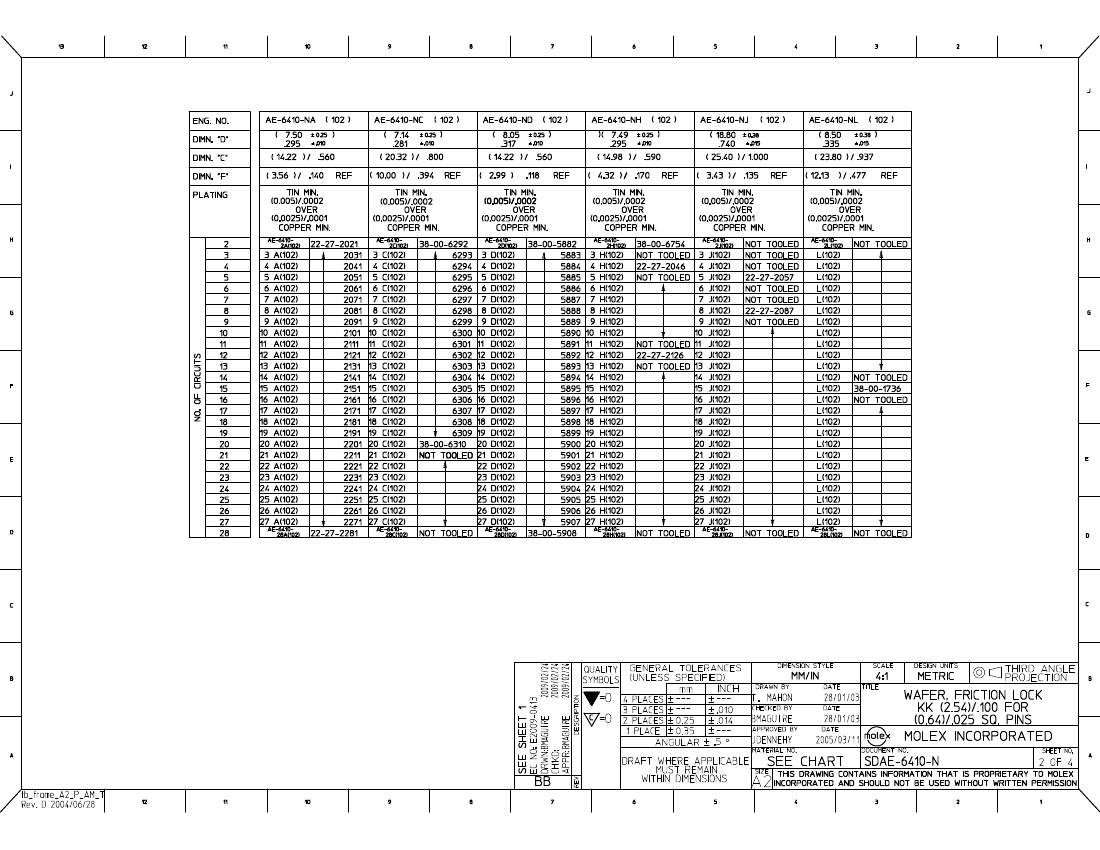

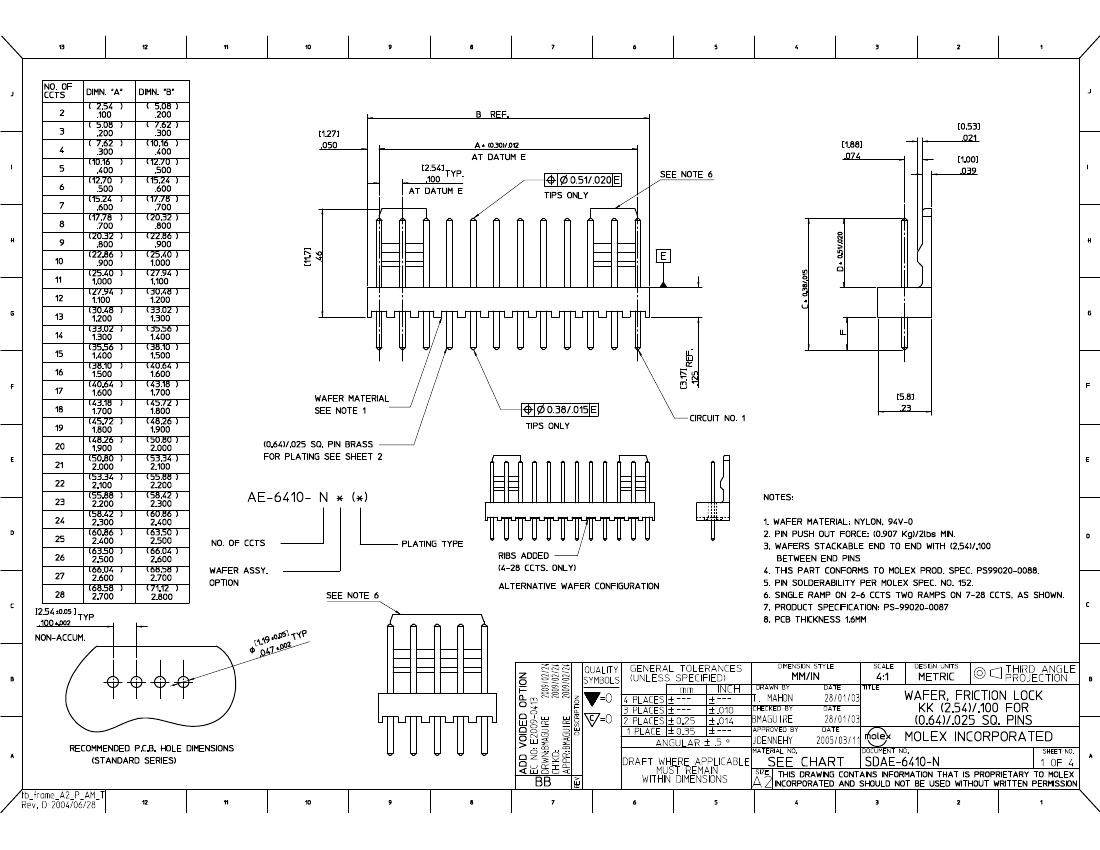

Drawing (PDF)
Product Specification PS-10-07 (PDF)
Product Specification PS-99020-0088 (PDF)
RoHS Certificate of Compliance (PDF)
Series

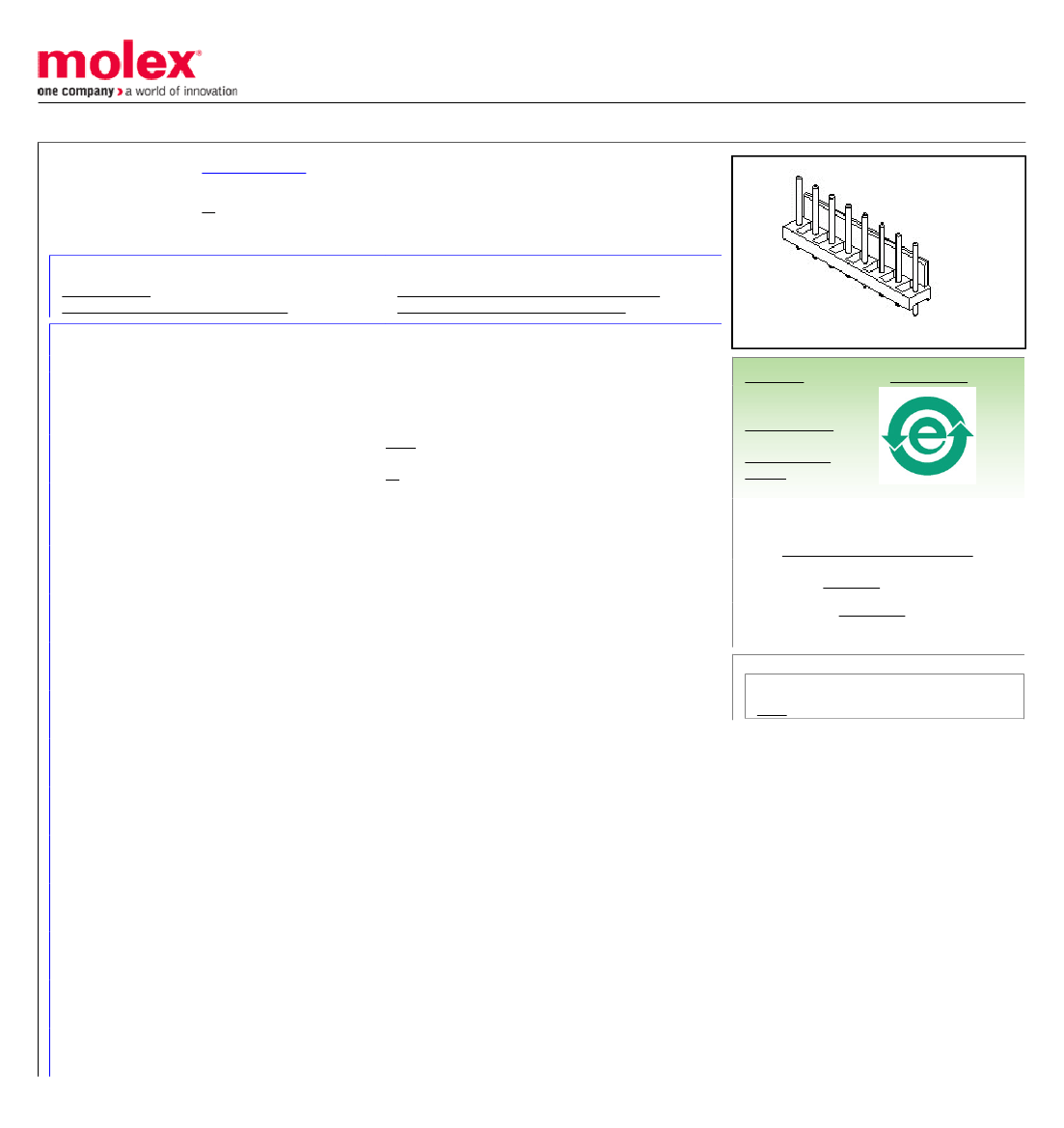

image - Reference only
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
6410
Board-to-Board
kk
KK®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
No
18
19
Natural (White)
25
No
94V-0
No
No
None
None
Brass
Tin
Tin
Nylon
1
Vertical
0.139 In
3.53 mm
No
None
0.063 In
1.60 mm
Bag
0.100 In
2.54 mm
0.100 In
2.54 mm
200
5
200
5
Yes
No
Search Parts in this Series
6410Series
