LM2V228M51105LD datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> LM2V228M51105LD

LM2V228M51105LD: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 350V, 20% +Tol, 20% -Tol, 2200uF, Chassis Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size188KB，2 Pages; ManufacturerSAMWHA; Websitehttp://www.samwha.com/; Environmental Compliance

Download Datasheet Parametric View All

LM2V228M51105LD Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 350V, 20% +Tol, 20% -Tol, 2200uF, Chassis Mount, RADIAL LEADED

LM2V228M51105LD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMWHA
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	2200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	2.63248 mA
Manufacturer's serial number	LM
Installation features	CHASSIS MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	350 V
ripple current	4860 mA
surface mount	NO
Delta tangent	0.24
Terminal surface	Tin (Sn)
Terminal shape	LUG

Preview

Download Datasheet

View All

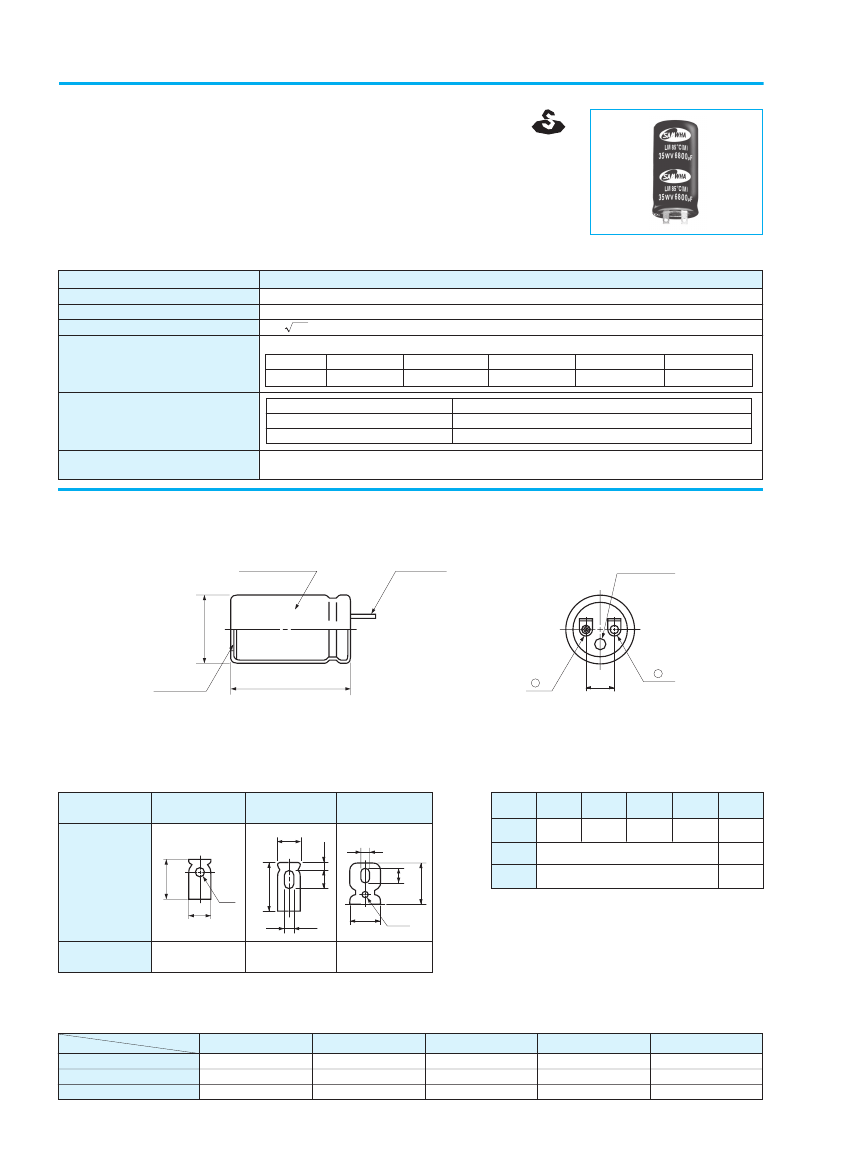

LARGE ALUMINUM ELECTROLYTIC CAPACITORS

Lug Terminal Type

Series

Solvent Proof

WV≦100V

·Lug

terminal series

·Suited

for use in power supplies and industrial controls

·Complied

to the RoHS directive

Item

Operating temperature range

Capacitance tolerance

Leakage current max.

Dissipation factor max.

(at 120Hz, 20°

Load life

(after application of the rated

voltage for 2000 hours at 85°

Shelf life (at 85°

Characteristics

WV< 350 : -40 ~ +85° WV≧350 : -25 ~ +85°

±20%

at 120Hz, 20°

I=3 CV (μ (after 5 minutes)

Capacitance > 1000μ : tanδ

increases by 0.01 for each 1000μ from below value.

tanδ

0.35

0.30

35~63

0.25

80~350

0.20

400~450

0.25

Leakage current

Capacitance change

tanδ

Less than specified value

Within

±20%

of initial value

Less than 200% of specified value

After 1000 hours no load test, leakage current, capacitance and tanδ same as load life value.

are

The measurement shall be performed at 20° by the KS C 6035 clause 5.4.

Unit : mm

●

DRAWING

Insulating sleeve

●Terminal

Safety vent

ØD+α

max.

Bottom plate

L+β

max.

－

P±1

＋

●

TERMINAL

For solder tag

ØD

≦35

4.5

2.6

ØD

13.0

25.4

4.8

8.0

Dimensions

Ø3

4.5

13.0

2.5

Code

●

FREQUENCY COEFFICIENT OF PERMISSIBLE RIPPLE CURRENT

Frequency

~ 100

160 ~ 250

315 ~

50Hz

0.85

120Hz

1.00

Ø2

300Hz

1.06

1.20

1.15

1kHz

1.15

1.25

1.20

10kHz≦

1.20

1.45

1.40

200
