SC1H106M6L005TS: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 2626, CHIP; CategoryPassive components capacitor; File Size27KB，1 Pages; ManufacturerSAMWHA; Websitehttp://www.samwha.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SC1H106M6L005TS Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 2626, CHIP

SC1H106M6L005TS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMWHA
package instruction	, 2626
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	10 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
Manufacturer's serial number	SC
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TR
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	42.6 mA
size code	2626
surface mount	YES
Delta tangent	0.09
Terminal surface	Tin (Sn)
Terminal shape	FLAT

Preview

Download Datasheet

View All

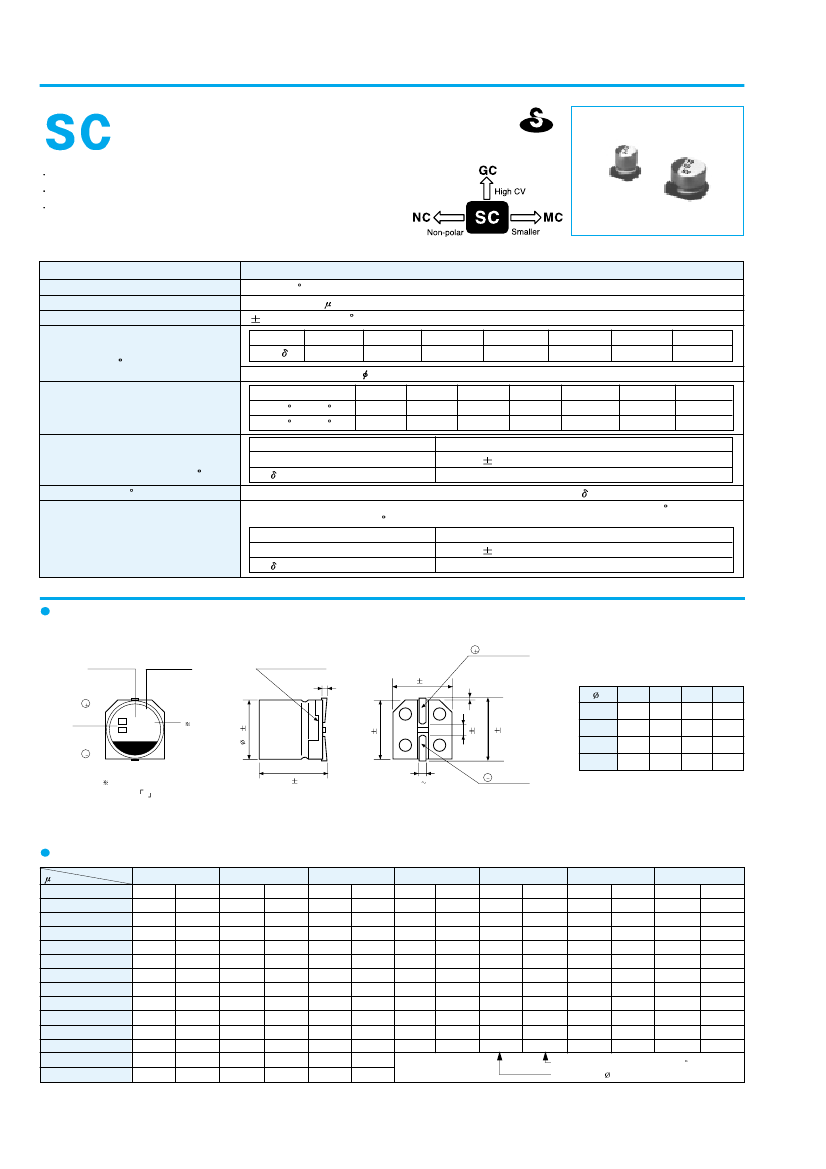

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

Chip type, For Surface Mounting

Series

Chip type with 5.5mm height

Designed for surface mounting on high density PC board

Applicable to automatic insertion machine using carrier tape

Solvent Proof

Item

Operating temperature range

Leakage current max.

Capacitance tolerance

Dissipation factor max.

(at 120Hz, 20 C)

Characteristics

-40 ~ +85 C

I = 0.01CV or 3 A whichever is greater (after 2 minutes)

20% at 120Hz, 20 C

WV

tan

Figures in (

4

6.3

0.35(0.40) 0.24(0.30)

) are for

3 products.

4

6

12

6.3

4

8

10

3

6

16

2

4

25

2

4

35

2

4

50

2

4

10

0.20

16

0.16(0.19)

25

0.13(0.16)

35

50

0.12(0.14) 0.09(0.14)

Low temperature characteristics

(Impedance ratio at 120Hz)

Load life

(after application of the rated

voltage for 2000 hours at 85 C)

Shelf life (at 85 C)

WV

Z-25 C/Z+20 C

Z-40 C/Z+20 C

Leakage current

Capacitance change

tan

Less than specified value

Within 20% of initial value

Less than 200% of specified value

Resistance to soldering heat

After 1000 hours no load test, leakage current, capacitance and tan are same as load life value.

The following specifications shall be satisfied when the capacitors are restored to 20 C

after exposing them at 250 C for 30 seconds.

Less than specified value

Leakage current

Within 10% of initial value

Capacitance change

Less than specified value

tan

DRAWING

Positive

0.4 max.

Capacitance

Temp. Code

Plastic plateform

0.3 max.

C

0.2

Unit : mm

Voltage

B 0.2

E 0.2

Lot No.

D

3

4

5

6.3

W

3.9

4.8

6.0

7.1

B

3.3

4.3

5.3

6.6

C

3.3

4.3

5.3

6.6

E

0.8

1.0

1.4

2.2

10

6V

0.5

D

Voltage mark for

6.3V is 6

5.3 0.2

0.5 0.8

DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT

F

0.1

0.22

0.33

0.47

1.0

2.2

3.3

4.7

10

22

33

47

100

150

WV

4

6.3

10

16

25

35

4(3)

4

5

6.3

50

3.2(2.4)

4.7(3.5)

5.7(4.3)

6.8(5.2)

10.0(7.5)

14.8

18.1

25.0

42.6

W

Negative

0.2

4(3)

4

6.3

16(13)

24(19)

29

35

68

84

4(3)

4

5

6.3

19(16)

29

41

48

82

4

5

6.3

21

36

44

62

4(3)

4

5

6.3

16(13)

24

41

58

69

4(3)

4

5

6.3

15(12)

18

30

53

64

4(3)

4

5

6.3

11(10)

16

19

32

55

Ripple current (mA rms) at 85 C, 120Hz

Case size D (mm)
