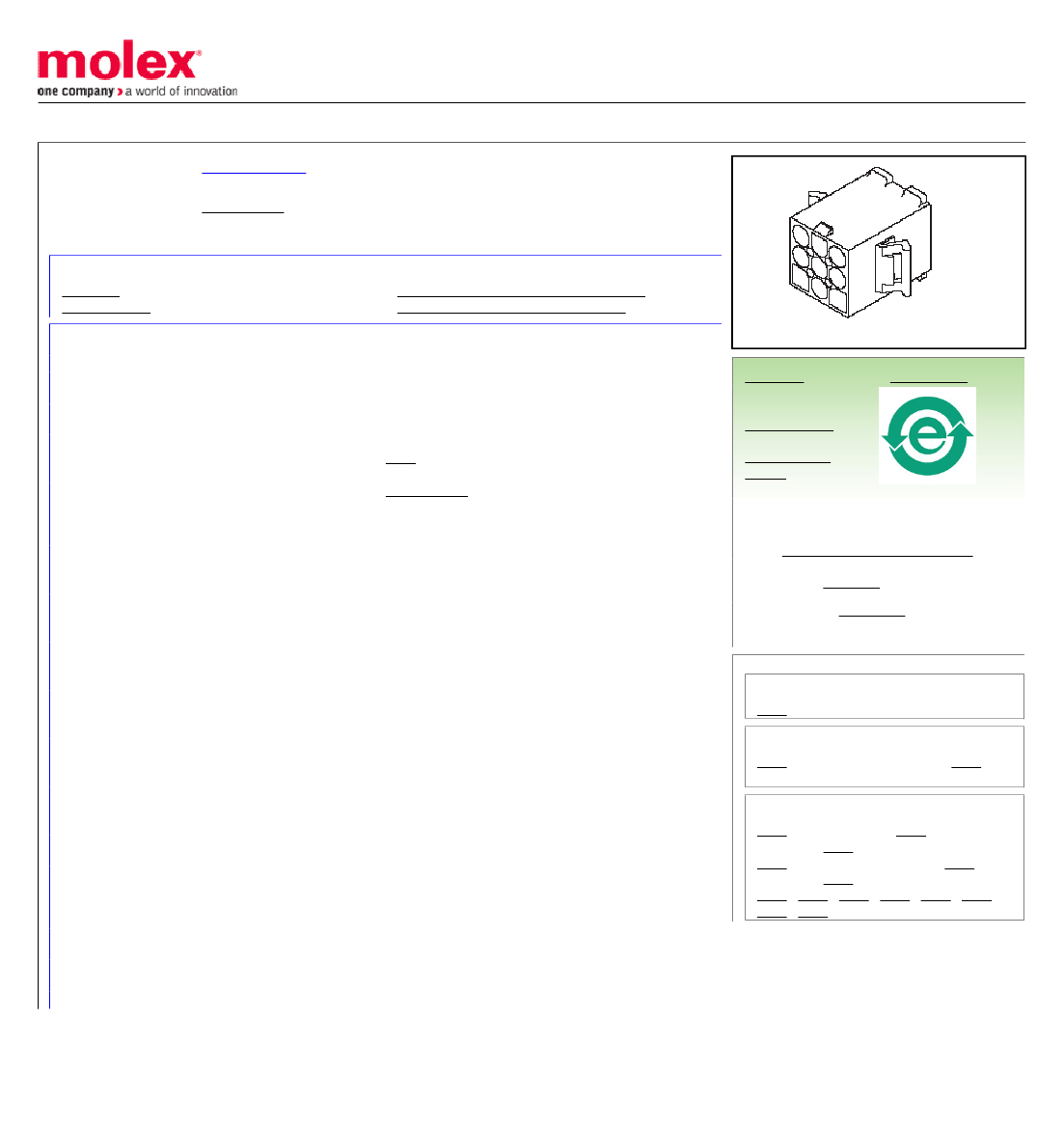

This document was generated on 05/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0039036060
Active
standard_093
2.36mm (.093") Diameter Standard .093" Pin and Socket Plug Housing With Positive
Latch, UL 94V-2, Panel Mount, 6 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-3191-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
R72081037
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
TUV
UL
General
Product Family
Series
Comments
Overview
Product Name
Crimp Housings
3191
Polarized to Mating Part
standard_093
Standard .093"
Physical
Breakaway
Circuits (maximum)
Circuits Detail
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
No
6
2x3
Natural
94V-2
Dual
No
None
Yes
Nylon
2
Bag
Yes
0.264 In
6.71 mm
Yes
No
-40°C to +105°C
Search Parts in this Series
3191Series
Mates With
3191 Pin and Socket Recptacle, 5219
Vertical PCB Header
Use With
1189 Crimp Terminals, 1190 Crimp
Terminals, 1380 Male Crimp Terminals,
1381 Female Crimp Terminals, 1433 Crimp
Terminals, 1434 Male Crimp Terminals,
2605 , 2606 , 1973 , 2151 , 2273 , 2870 ,
2871 , 4272 , Lin
Electrical
Current - Maximum per Contact
9A
Material Info
Old Part Number
3191-06P
Reference - Drawing Numbers
Packaging Specification
Product Specification

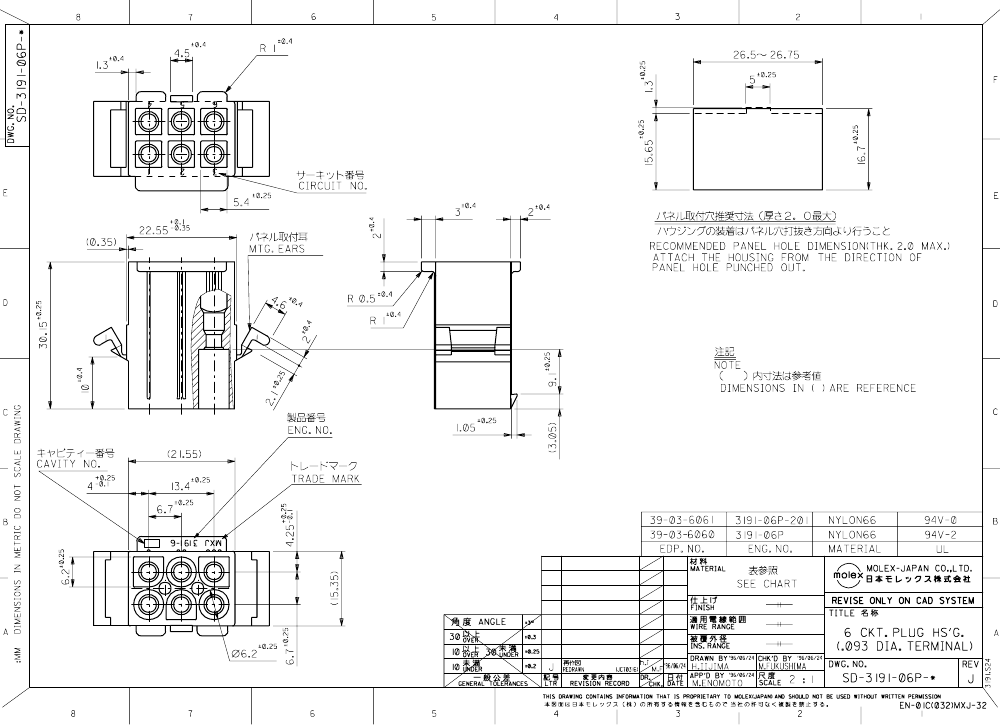

Sales Drawing
SPK-3191-001
PS-3191-001
SD-3191-06P-*
This document was generated on 05/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
