35507-0203 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 35507-0203

35507-0203: Description2 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR; CategoryThe connector The connector; File Size305KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

35507-0203 Overview

2 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR

35507-0203 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMPITABLE CONTACT: 50212-8000
body width	0.224 inch
subject depth	0.295 inch
body length	0.283 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	8.0064 N
Insulation resistance	1000000000 Ω
Insulator color	YELLOW
insulator material	POLYESTER
MIL compliance	NO
Manufacturer's serial number	35507
Plug contact pitch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	POLARIZED LCK
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length
Terminal pitch	2 mm
Termination type	CRIMP
Total number of contacts	2
UL Flammability Code	94V-0
Maximum wire diameter	24 AWG
Minimum wire diameter	30 AWG
Evacuation force-minimum value	.695 N
Base Number Matches	1

Preview

Download Datasheet

View All

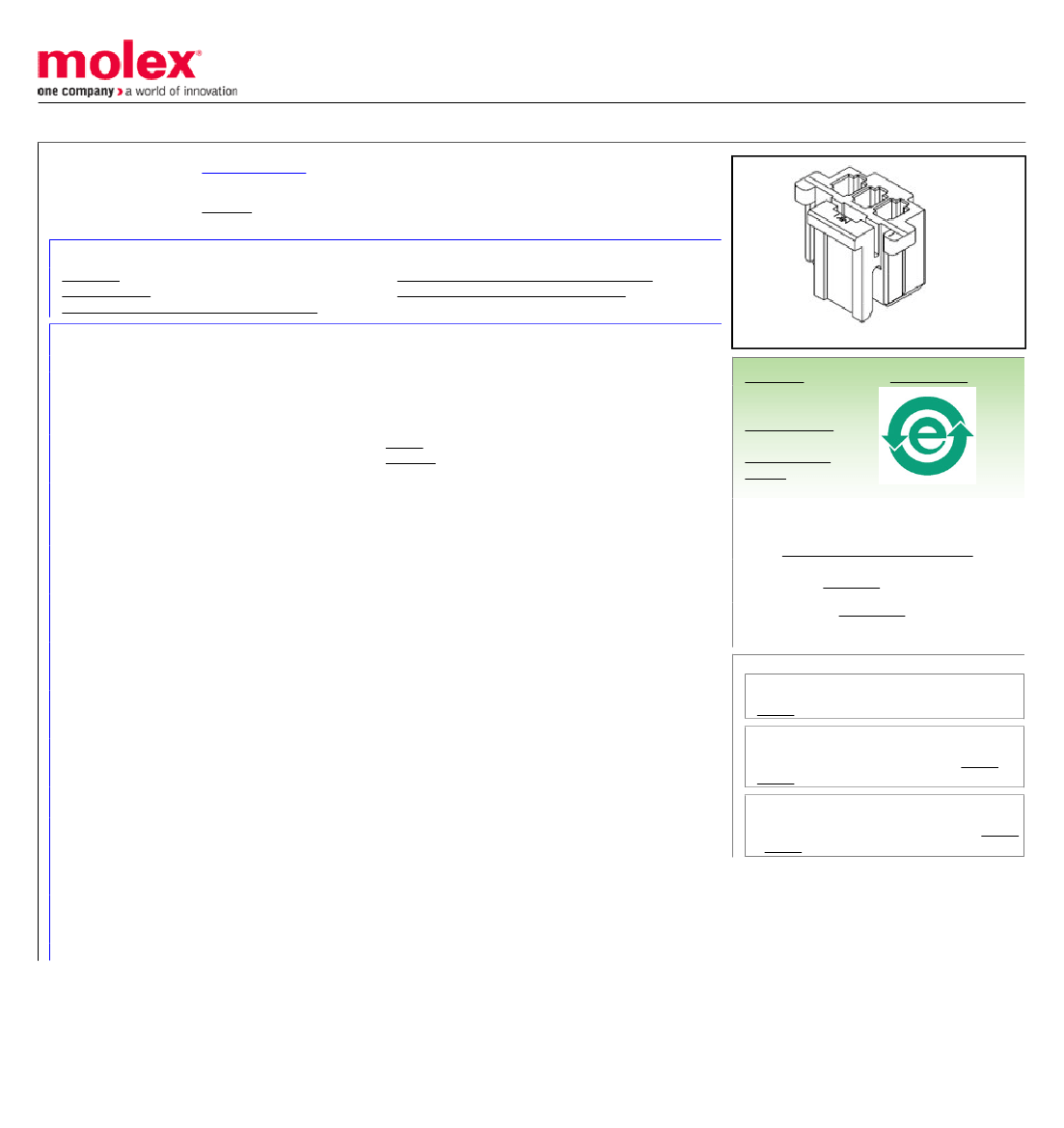

This document was generated on 06/01/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0355070203

Active

sherlock

2.00mm (.079") Pitch Sherlock™ Wire-to-Board Housing, Yellow, 2 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-35507-001 (PDF)

Product Specification PS-35507-002 (PDF)

RoHS Certificate of Compliance (PDF)

Series

Agency Certification

CSA

LR19980

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Overview

Product Name

Crimp Housings

35507

sherlock

Sherlock™

Physical

Circuits (maximum)

Circuits Detail

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Yellow

94V-0

Female

None

Yes

Polyester

Bag

0.079 In

2.00 mm

Yes

-40°C to +105°C

Search Parts in this Series

35507Series

Mates With

Sherlock™ Wire-to-Board Header 35362 ,

35363

Use With

2.00mm (.079") Pitch Crimp Terminal 50212

, 10440

Electrical

Current - Maximum per Contact

Material Info

Reference - Drawing Numbers

Product Specification

PS-35507-001, PS-35507-002, RPS-35507-003,

RPS-35507-004, RPS-35507-005, RPS-35507-009,

RPS-35507-011

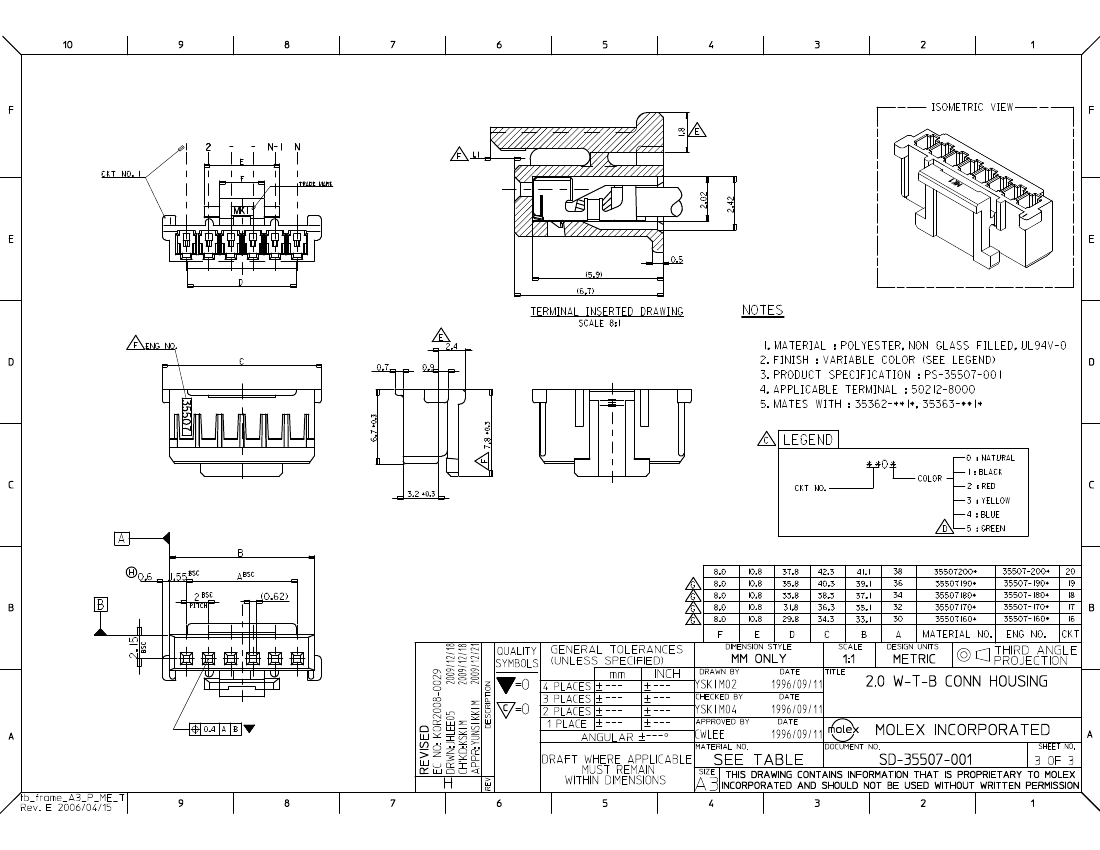

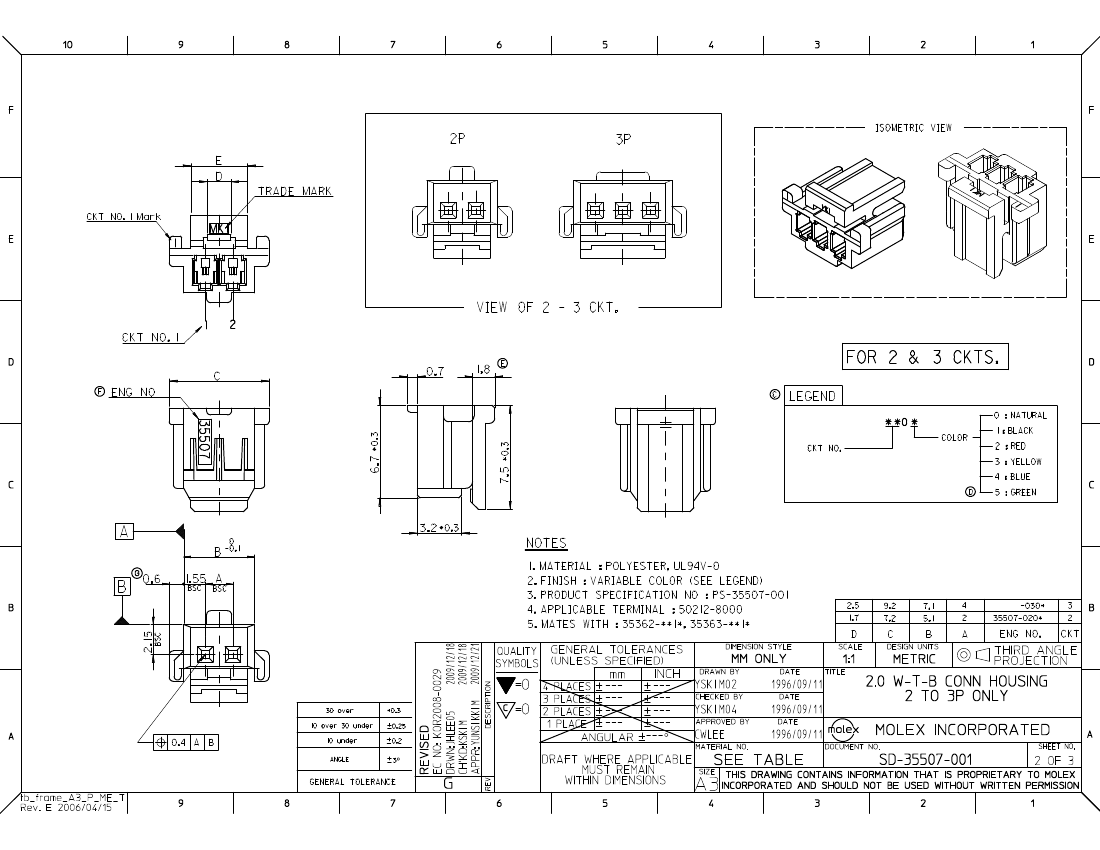

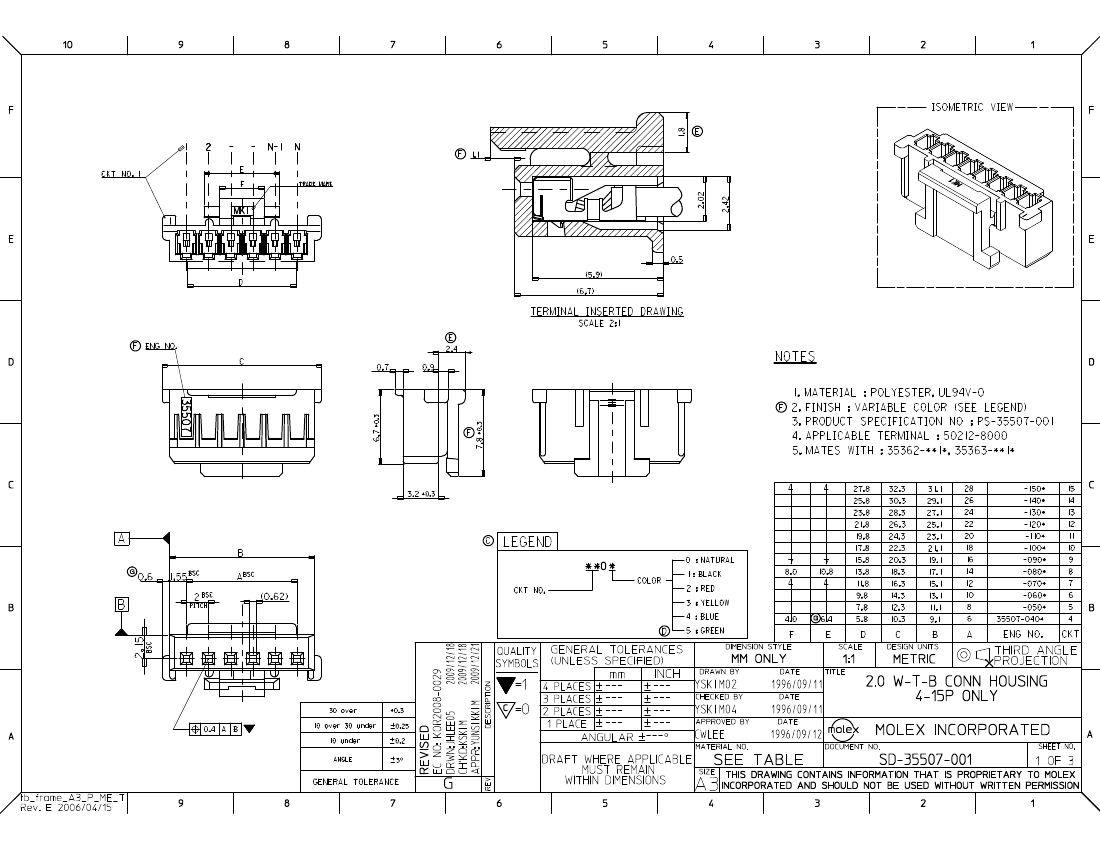

SD-35507-001

Sales Drawing

This document was generated on 06/01/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
