This document was generated on 06/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0357110710
Active
2.79mm (.110") Slip-On Receptacle Terminal, Quick Disconnect, 0.50mm (.020") Tab
Thickness, Wire Range 16-20 AWG (1.31-0.52mm²), Post-Tin Plated
Documents:
Drawing (PDF)
Product Specification PS-35544-001 (PDF)
Product Specification PS-35702-001 (PDF)
Product Specification PS-68428-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Agency Certification
UL
E92853
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Product Name
Type
Quick Disconnects
35711
Yes
Slip-On
Quick Disconnect
Physical
Barrel Type
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Orientation
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Tab Thickness
Tab Width
Temperature Range - Operating
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Open
Female
No
None
None
Brass
Tin
Tin
Straight
Reel
40
1
40
1
No
0.51mm (.020")
2.79mm (.110")
-40°C to +120°C
Crimp or Compression
2.80mm (.110") max.
16, 18, 20
0.50 - 1.30
Search Parts in this Series
35711Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Mini-Mac™
0638018000
Applicator Rear Feed
Electrical
Voltage - Maximum
Per Wire Specification
Material Info
Reference - Drawing Numbers
Product Specification

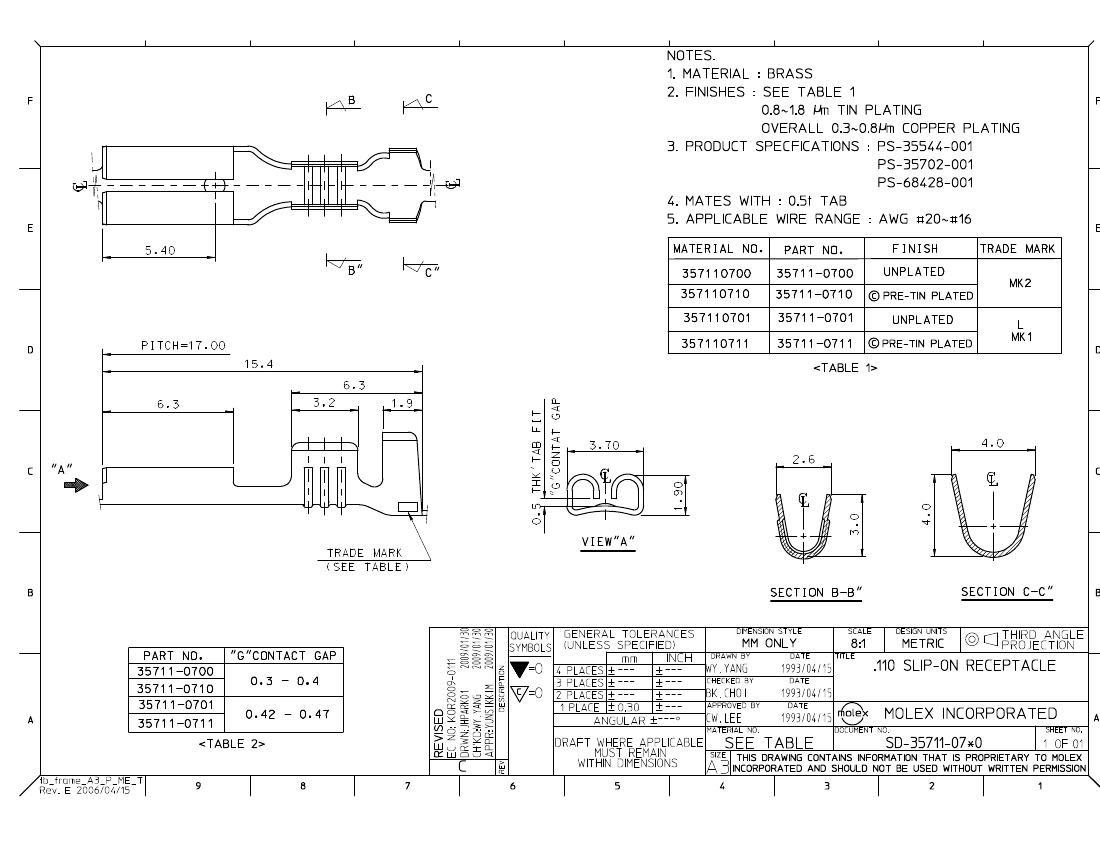

Sales Drawing
PS-35544-001, PS-35702-001, PS-68428-001
SD-35711-07*0
This document was generated on 06/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
