35798-0392: Description3 CONTACT(S), MALE, POWER CONNECTOR, SOLDER; Categorysemiconductor Other integrated circuit (IC); File Size107KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

35798-0392 Overview

3 CONTACT(S), MALE, POWER CONNECTOR, SOLDER

Preview

Download Datasheet

View All

This document was generated on 04/14/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0357980392

Active

6.00mm (.236") Pitch Wire-to-Board Header, 1.78mm (.070") Tab, Vertical, Red, 3

Circuits

Documents:

3D Model

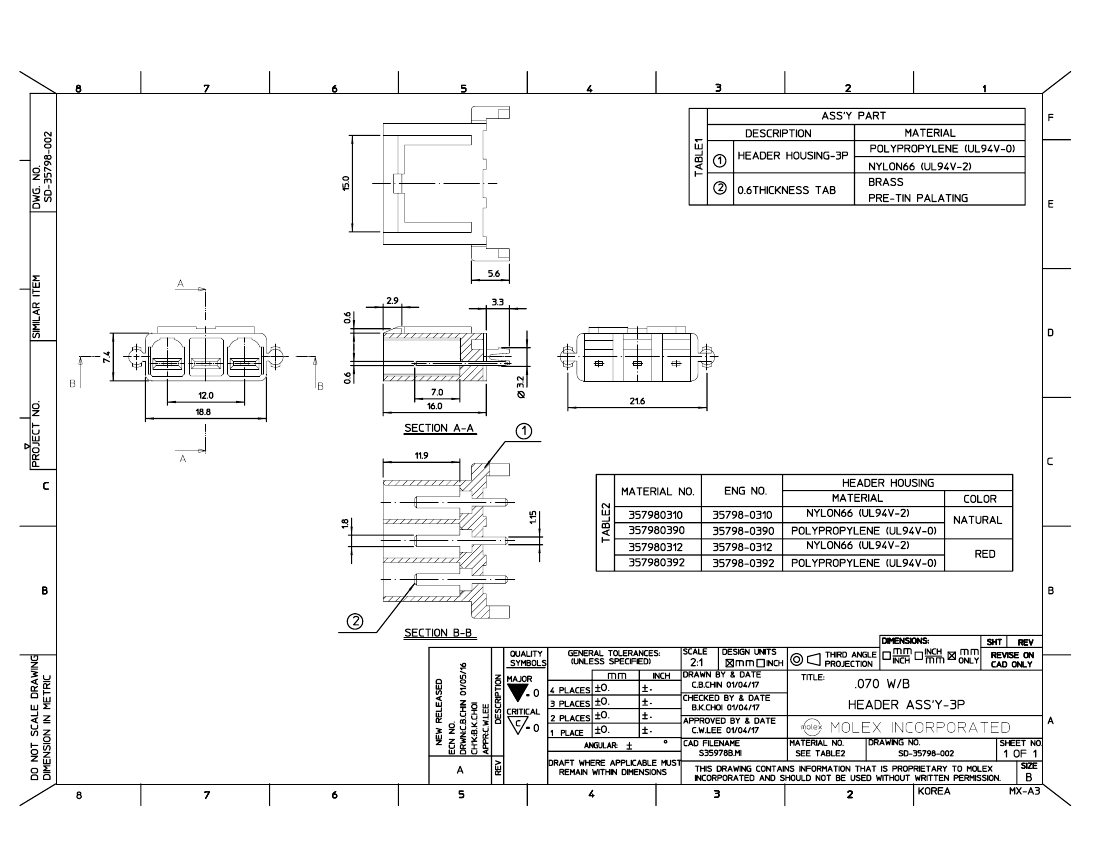

Drawing (PDF)

Product Specification PS-35798-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Product Name

PCB Headers

35798

Wire-to-Board

N/A

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

None

Yes

Tin

Vertical

0.130 In

3.30 mm

Yes

0.062 In

1.60 mm

Bag

0.236 In

6.00 mm

Partial

-40°C to +120°C

Through Hole

Search Parts in this Series

35798Series

Mates With

35799 Wire-to-Board Housing

Electrical

Current - Maximum per Contact

Voltage - Maximum

15A

300V

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-35798-001

SD-35798-002

This document was generated on 04/14/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

35798-0392 Related Products

	35798-0392	NX7363JB-BC_15	357980390	357980392
Description	3 CONTACT(S), MALE, POWER CONNECTOR, SOLDER	LASER DIODE InGaAsP MQW DC-PBH PULSED LASER DIODE MODULE 1 310 nm OTDR APPLICATION	6.00mm (.236") pitch wire-to-board header, 1.78mm (.070") tab, vertical, white, 3 circuits	6.00mm (.236") pitch wire-to-board header, 1.78mm (.070") tab, vertical, red, 3 circuits
