FMAD NEO
1-stage filter for 3-phase systems
Case 5B-16
Case 5A-4
See below:
Approvals and Compliances
Description
-
-
-
-
-
-
-
-
Terminals for three phases, neutral conductor and ground
1 stage
Very high attenuation
Industrial or low leakage current versions
Compact design with small footprint
Single-stage filter for high efficiency
Light weight design
Wide temperature range
Applications
Unique Selling Proposition
- Voltage rating 520 VAC for world wide acceptance
- Protection against interference voltage from the mains
- Especially designed for industrial applications such as: Frequency Con-
verters, Stepper Motor Drives, UPS-Systems, Inverters
- Suitable for use in equipment according to IEC/UL 60950
Weblinks
pdf data sheet, html datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Microsite
Technical Data
Rated Current
Rated voltage
Approval for
Overload Current
Dielectric Strength
␣
Number of Filter Stages
Weight
Material: Housing
Sealing Compound
16 - 230 A
300/520 VAC, 50/60 Hz
16 - 230 A @ 50 °C / 300/520 VAC;
50/60 Hz
1.5 x Ir for 1 minute, per hour
> 2.25 kVDC between L-L
> 2.75 kVDC between L-PE
Test voltage 2 sec
1-stage
0.9 - 4.1 kg
Metal
UL 94V-0
Mounting
Terminal
Operating Temperature
Climatic Category
Degree of Protection
Protection Class
MTBF
Screw-on mounting on chassis
Screw clamps
-40 °C to 100 °C
40/100/21 acc. to IEC 60068-1
IP20 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
> 200'000 h acc. to MIL-HB-217 F
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national
and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF
16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agree-
ments by SCHURTER.
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FMAD NEO
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40049000
UL File Number: E495089
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Standard
IEC 60939
UL 1283
Description
Passive filters for suppressing electromagnetic interference
Electromagnetic interference filters
EMC Products
1
FMAD NEO
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

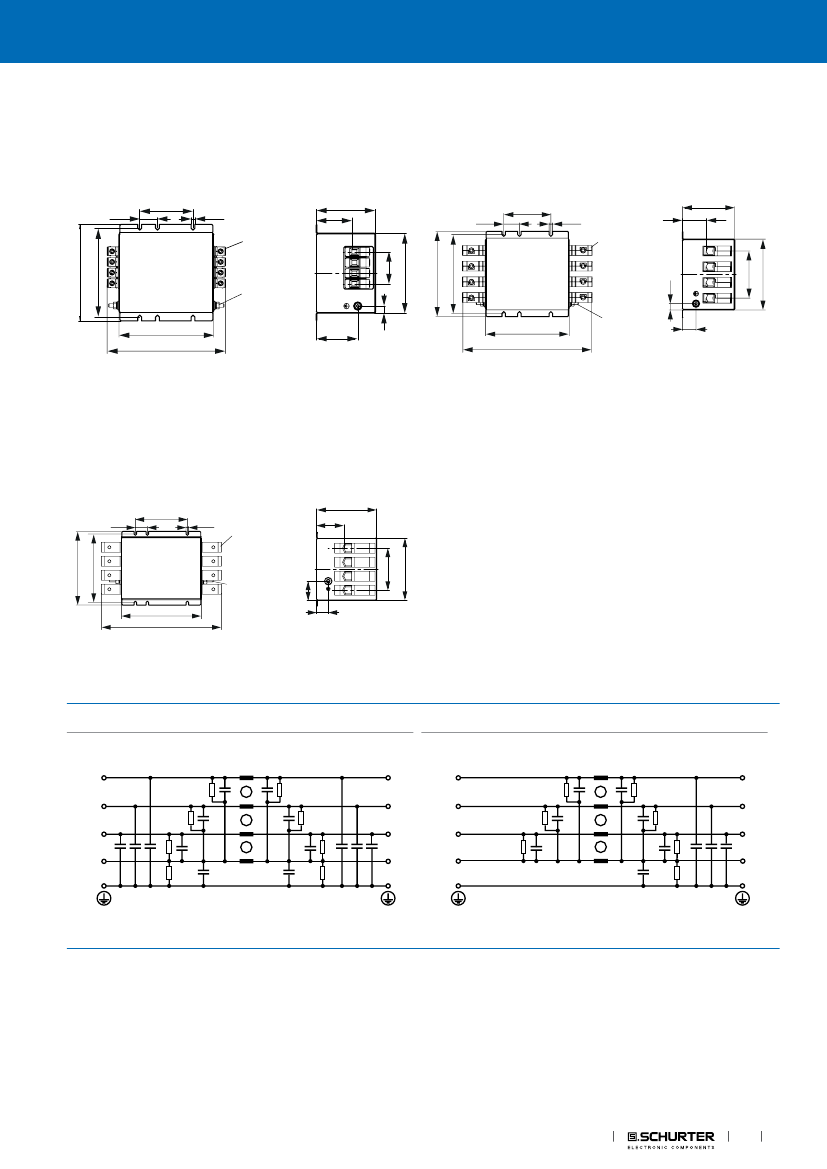

Dimension [mm]
Case 5A-4
Case 5A-10
30
±0.2
90
±0.3
110 max.
34.5
81 max.
6.5
±0.3
4 mm
²
max. 0.5 [Nm]
(8x)
LOAD
91 max.
60
90
±0.3
30
±0.2
6.5
±0.3
10 mm
²
max. 1.2 [Nm]
(8x)
91 max.
58
92.5
-1
0
LINE
110 max.
121 max.
157 max.
64
121 max.
157 max.
64
Case 5B-10
Case 5B-16
100
±0.3
30
±0.2
6.5
±0.3
91 max.
57
124 max.
0
-1
30
±0.2
100
±0.3
6.5
±0.3
151 max.
51
124 max.
34.5
95 max.
0
106.5
-1
130 max.
165 max.
63
130 max.
170 max.
2
EMC Products
12
M6
5-7 [Nm]
(2x)
M6
5-7 [Nm]
(2x)
59
45
max. 95
LOAD
106.5
LINE
LOAD
10mm
²
max. 1.2 [Nm]
(8x)
16mm
²
2-2.2 [Nm]
(8x)
LINE
12
M6
5-7 [Nm]
(2x)
12
M6
5-7 [Nm]
(2x)
34.5
81 max.
92.5
-1
0
LOAD
LINE
12
3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80
FMAD NEO
Case 5C-25
Case 5C-50
30
±0.2
90
±0.3
6.5
±0.3
25mm
²
2 [Nm]
(8x)
101 max.
60
30
±0.2
90
±0.3
6.5
±0.3
(4x)
50 mm
²
max. 6 [Nm]
(8x)
101 max.
46
165 max.
136 max.
165 max.
M6
3-4 [Nm]
(2x)
161 max.
201 max.
70
12
161 max.
248 max.
M6
Max. 7 [Nm]
(2x)
12
26
Case 5D-95
30
±0.2
130
±0.3
6.5
±0.3
(4x)
151 max.
95mm
²
3.5-14.7 [Nm]
(8x)
68
186 max.
M10
max. 20 [Nm]
(2x)
48
201 max.
301 max.
29
Diagrams
Industrial version
L1
L2
L1’
L2’
L3’
N
PE
max. 157
171
-1
LOAD
LINE
0
105
Low leakage current version
L1
L2
L1’
L2’
L3’
N
PE
1)
L3
N
PE
1)
L3
N
PE
1) Line
1) Line
EMC Products
3
136 max.
150
-1
LOAD
LINE
0
54
150
-1
LOAD
0
LINE
90
FMAD NEO

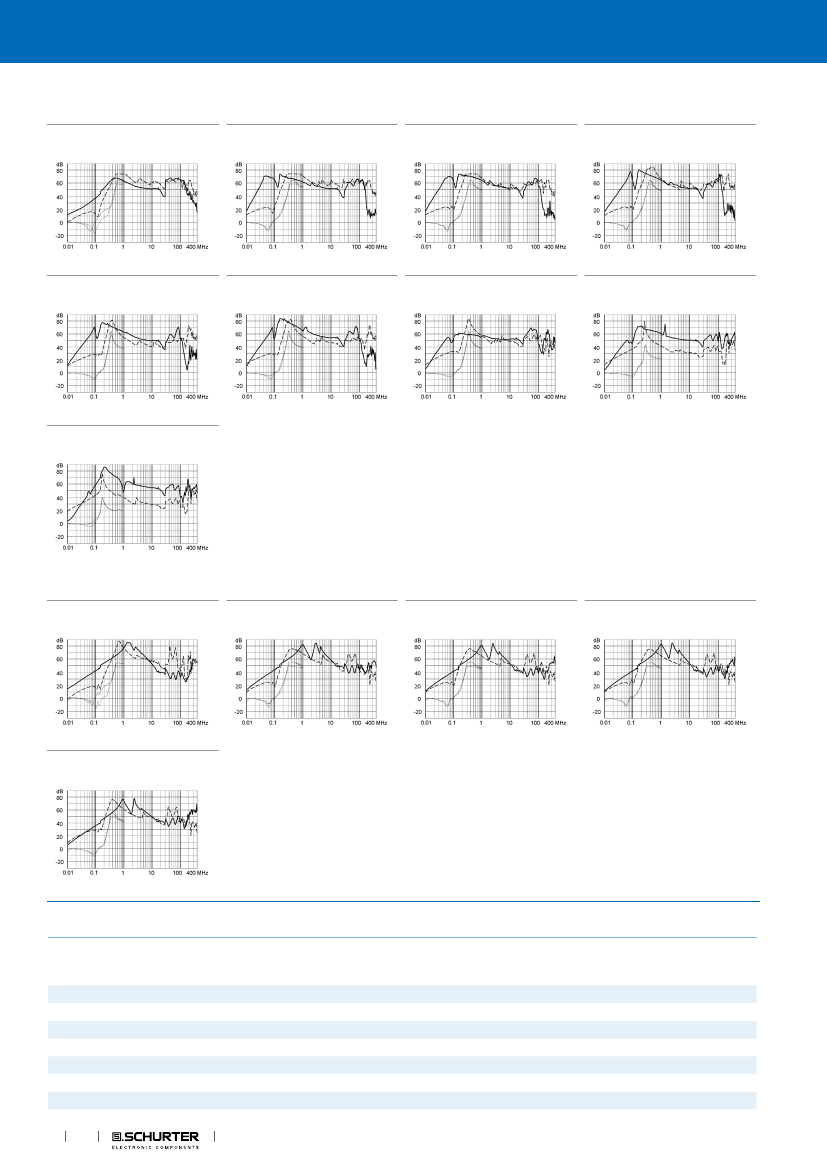

Attenuation Loss
Industrial version
3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80
- - - - 50Ω differential mode _____ 50Ω common mode
16 A
25 A
36 A
50 A
64 A
80 A
110 A
180 A
230 A
Low leakage current version
16 A
25 A
36 A
50 A
64 A
All Variants
Rated Current @
Ta 50°C [A]
Filter Type
Tripped Power
Dissipation [W]
Contact Resi-
stance [mΩ]
Leakage Cur-
rent [mA] @ 440V,
60Hz 1)
10.5
10.7
10.7
11.4
11.4
12.2
12.2
Weight [kg]
Screw clamps
[mm2] 2)
Housings
Order Number
16
25
36
50
64
80
110
Industrial Version
Industrial Version
Industrial Version
Industrial Version
Industrial Version
Industrial Version
Industrial Version
1.5
1.6
2.1
4.1
3.9
5.2
6.3
5.7
2.5
1.65
1.65
0.94
0.82
0.52
0.9 kg
1.1 kg
1.3 kg
1.3 kg
1.35 kg
1.45 kg
2.5 kg
4
10
10
10
16
25
50
5A-4
5A-10
5B-10
5B-10
5B-16
5C-25
5C-50
3-108-700
3-108-701
3-108-712
3-108-713
3-108-714
3-108-715
3-108-716
█
█
█
█
█
█
█
4
EMC Products
3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80
FMAD NEO
Tripped Power
Dissipation [W]
Contact Resi-
stance [mΩ]
Leakage Cur-
rent [mA] @ 440V,
60Hz 1)
12.2
13.1
1.4
3
3
3
3
Weight [kg]
Screw clamps
[mm2] 2)
Housings
Order Number
Rated Current @
Ta 50°C [A]
Filter Type
180
230
16
25
36
50
64
█
Most Popular.
Industrial Version
Industrial Version
Low leakage current version
Low leakage current version
Low leakage current version
Low leakage current version
Low leakage current version
12
14.3
1.5
1.6
2.1
4.1
3.9
0.37
0.27
5.7
2.5
1.65
1.65
0.94
3.1 kg
4.1 kg
0.9 kg
1.1 kg
1.3 kg
1.3 kg
1.35 kg
95
95
4
10
10
10
16
5D-95
5D-95
5A-4
5A-10
5B-10
5B-10
5B-16
3-108-717
3-108-718
3-109-852
3-109-853
3-109-854
3-109-855
3-109-856
█
█
█
█
█
█
█
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
1) Nominal leakage current acc. to IEC60950 - 5.2.5. under normal operating conditions. Note: worst case leakage current acc. to IEC60950 - Annex G4 (situation with two
interrupted lines) can be much higher.
2) Maximum conductor cross section (wire gauge) to be used; a comparative table for AWG and mm² values can be found in the general product information
https://www.schurter.com/en/FAQ#10
Packaging unit
1 Pcs
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
EMC Products
5
15.11.2019
