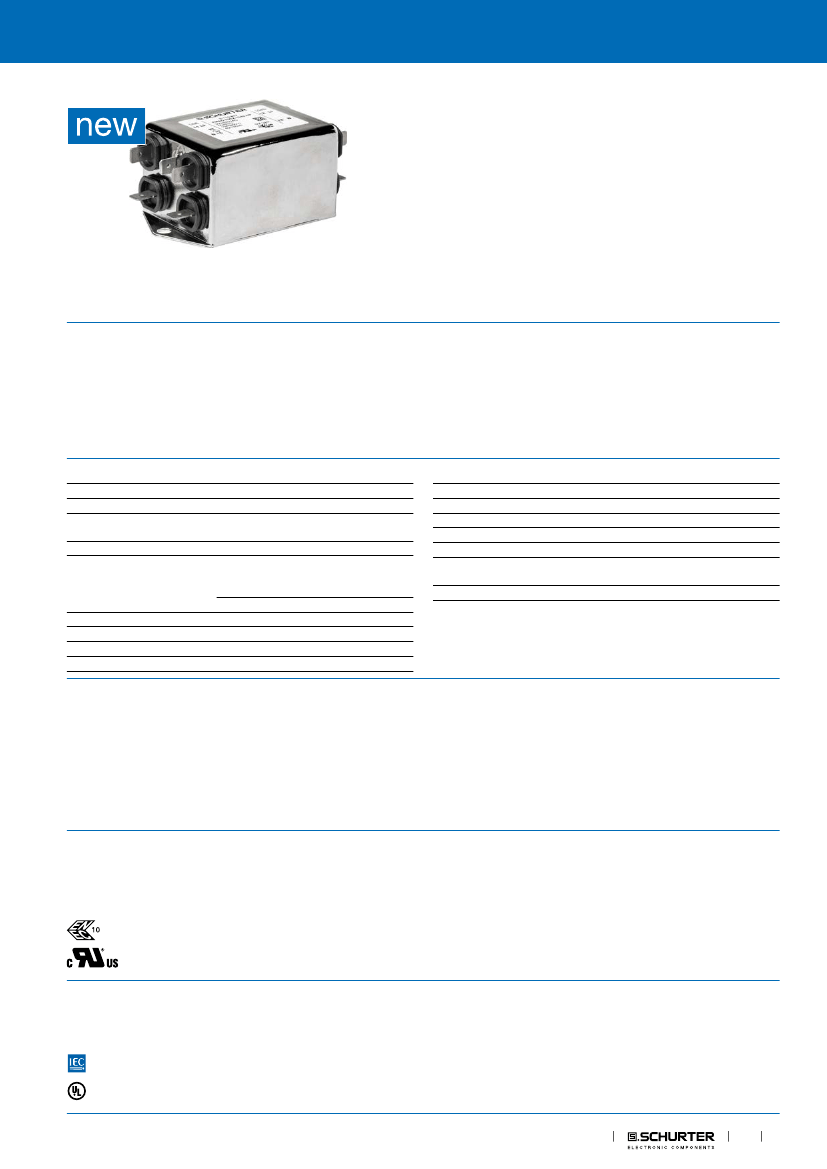

FMAD CP
1-stage filter for 3-phase systems with neutral conductor
See below:
Approvals and Compliances
Description
- Line filter as standard, industrial and medical version
- 1 stage
- filter with standard or high attenuation
Applications
Unique Selling Proposition
-
-
-
-
Compact single-stage filter
Various filter variants
Light weight design
Wide temperature range
- Voltage rating 520 VAC for world wide acceptance
- For low power 3 phase energy inverter such as photovoltaic or battery
storage systems
- Suitable for use in equipment according to IEC/UL 60950
Weblinks
pdf data sheet, html datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Microsite
Technical Data
Rated Current
Rated voltage
Approval for
Overload Current
Dielectric Strength
3 - 20 A
300/520 VAC, 50/60 Hz
3 - 20 A @ 50 °C / 300/520 VAC;
50/60 Hz
1.5 x Ir for 1 minute, per hour
> 2.25 kVDC between L-L
> 1.3 kVDC between L-N
2.75 kVDC between L-PE
Test voltage 2 sec
1-stage
0.2
Metal
UL 94V-0
Mounting
Terminal
Operating Temperature
Climatic Category
Degree of Protection
Protection Class
MTBF
Screw-on mounting on chassis
Screw clamps
-40 °C to 100 °C
40/100/21 acc. to IEC 60068-1
IP20 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
> 200'000 h acc. to MIL-HB-217 F
␣
Number of Filter Stages
Weight
Material: Housing
Sealing Compound
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national
and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF
16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agree-
ments by SCHURTER.
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FMAD CP
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40050745
UL File Number: E495089
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Standard
IEC 60939
UL 60939-3
Description
Passive filters for suppressing electromagnetic interference
Electromagnetic interference filters
EMC Products
1
FMAD CP
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

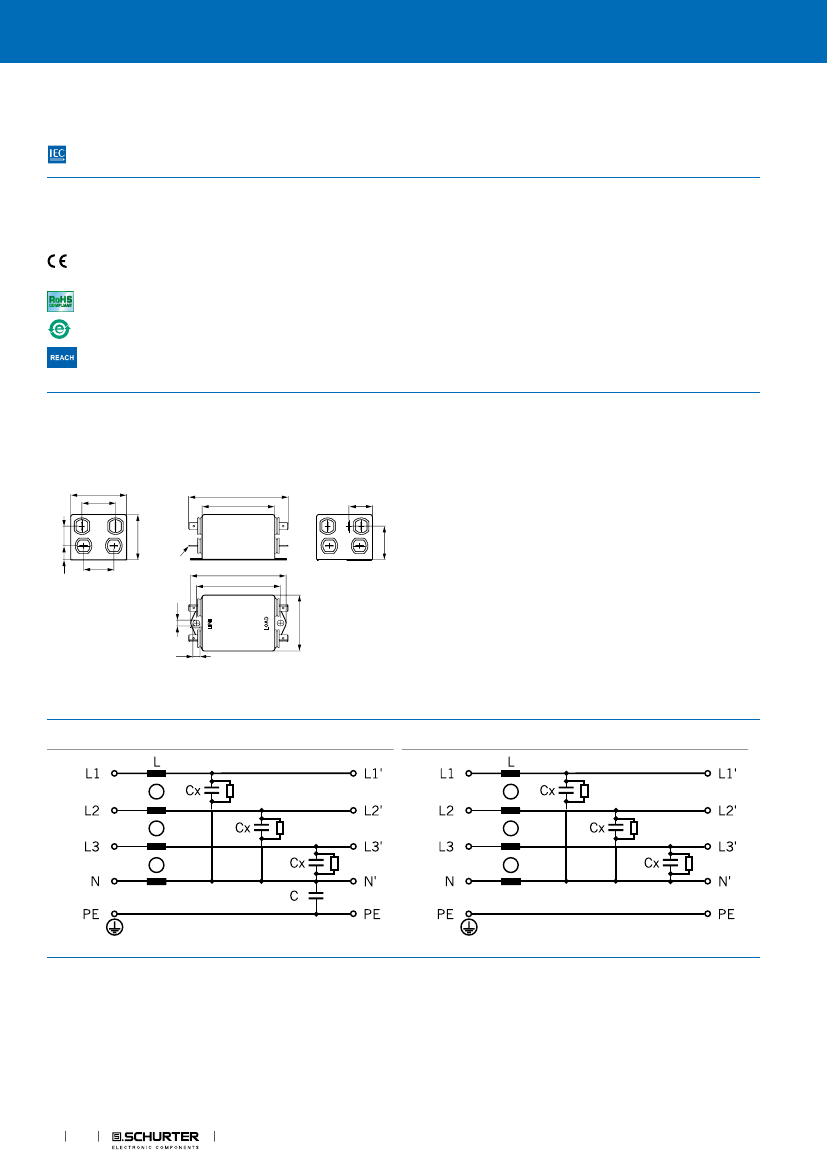

Dimension [mm]
51 max.
30
42 max.
91 max.
66 max.
21
17.5
12.5
27
6.3x0.8
(9x)
85 max.
75
±0.3
5.3
6.3

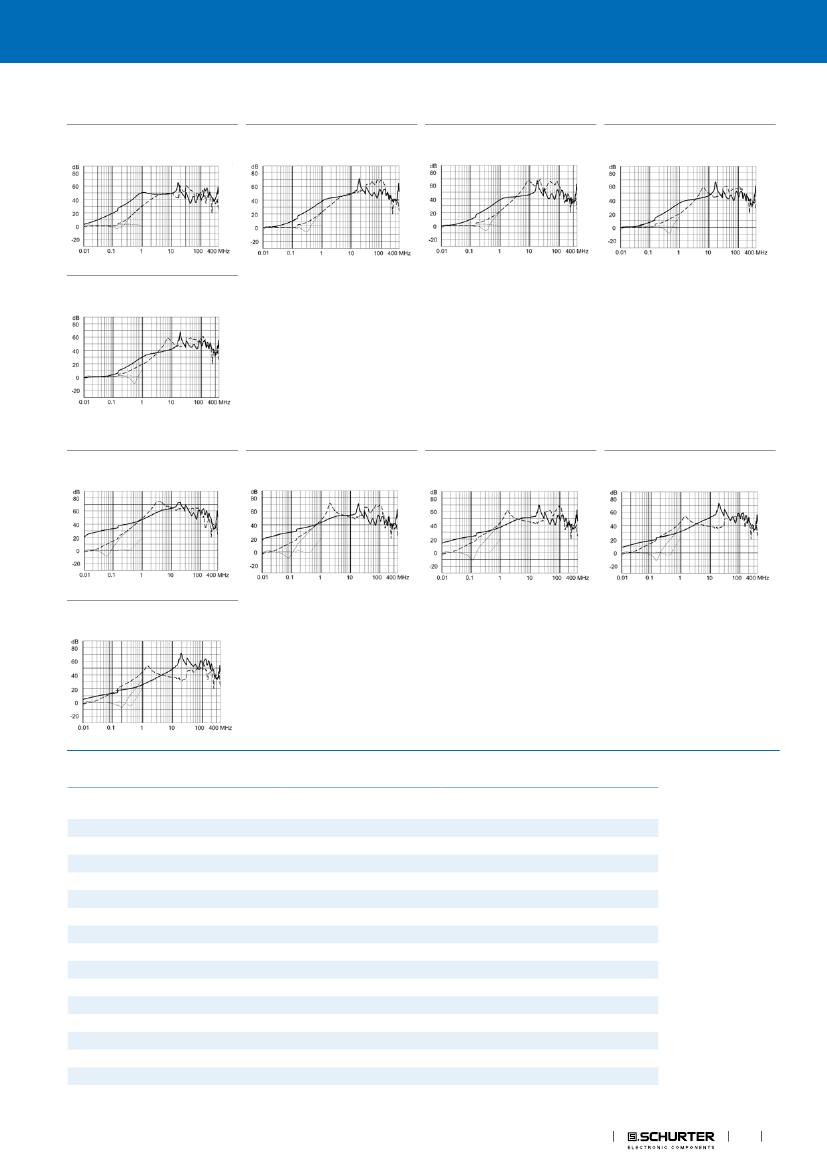

Diagrams
R
51 max.
30
R
R
R
y
1)
1)
R
R
1) Line
1) Line
2
EMC Products
FMAD CP
Rated Current @ Ta
50°C [A]
16
20
3
6
10
16
20
3
6
10
16
20
3
6
Filter Type
Industrial version HP
Industrial version HP
Industrial version HP
Industrial version HP
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5) HP
Medical Version (M5) HP
Medical Version (M5) HP
Medical Version (M5) HP
Medical Version (M5) HP
Tripped Power
Dissipation [W]
2.8
2.5
2.3
2.2
2.8
3.6
3.5
2.8
1.9
2.5
2.8
2.5
2.3
2.2
Contact Resi-
stance [mΩ]
2.7
1.5
63.6
15.3
6.9
3.5
2.2
78.9
13
6.2
2.7
1.5
63.6
15.3
Leakage Current [mA]
@ 440V, 60Hz 1)
3
3
3
3
0.005
0.005
0.005
0.005
0.005
0.005
0.005
0.005
0.005
0.005
3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80
Order Number
3-111-519
3-110-846
3-110-843
3-110-844
3-110-819
3-111-515
3-110-820
3-110-817
3-110-818
3-110-841
3-111-518
3-110-842
3-110-839
3-110-840
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Packaging unit
10 Pcs
4
EMC Products
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
10.03.2020
