This document was generated on 05/24/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0366380007
Active
cmc_connectors
2.50mm (.098"), 3.50mm (.138") CMC Header, Right Angle, 48 Position, 36 loaded, 1
Port, Brown, Peg, Lead-free
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Series
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
36638
Wire-to-Board
cmc_connectors
CMC
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Mated Height (in)
Mated Height (mm)
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
No
36
48
6 x 1.5mm & 30 x 0.635mm terminals
Black
20
Yes
No
Yes
Yes
Yes
0.264 In
6.70 mm
Brass
Tin
Tin
Polyester
4
Right Angle
0.114 In
2.90 mm
Yes
Yes
0.063 In
1.60 mm
Tray
0.098 In, 0.138 In, 0.146 In
2.50 mm, 3.50 mm, 3.70 mm
0.098 In, 0.138 In, 0.146 In
2.50 mm, 3.50 mm, 3.70 mm
160
4
160
4
Yes
Yes
Closed Ends
No
Search Parts in this Series
36638Series
Mates With
CMC Connectors 643201319 , 643203319 ,
Use With
CMC Connectors 643201319 , 643203319
, 643202319 , 643204319. CMC CP
Terminals Terminals 64322 , 64323. CMC
Blind Plug for CP Terminal 64325. Wire Cap
643191201
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
-40°C to +100°C
Through Hole
Electrical
Current - Maximum per Contact
Voltage - Maximum
8A
250V
Material Info
Reference - Drawing Numbers
Packaging Specification

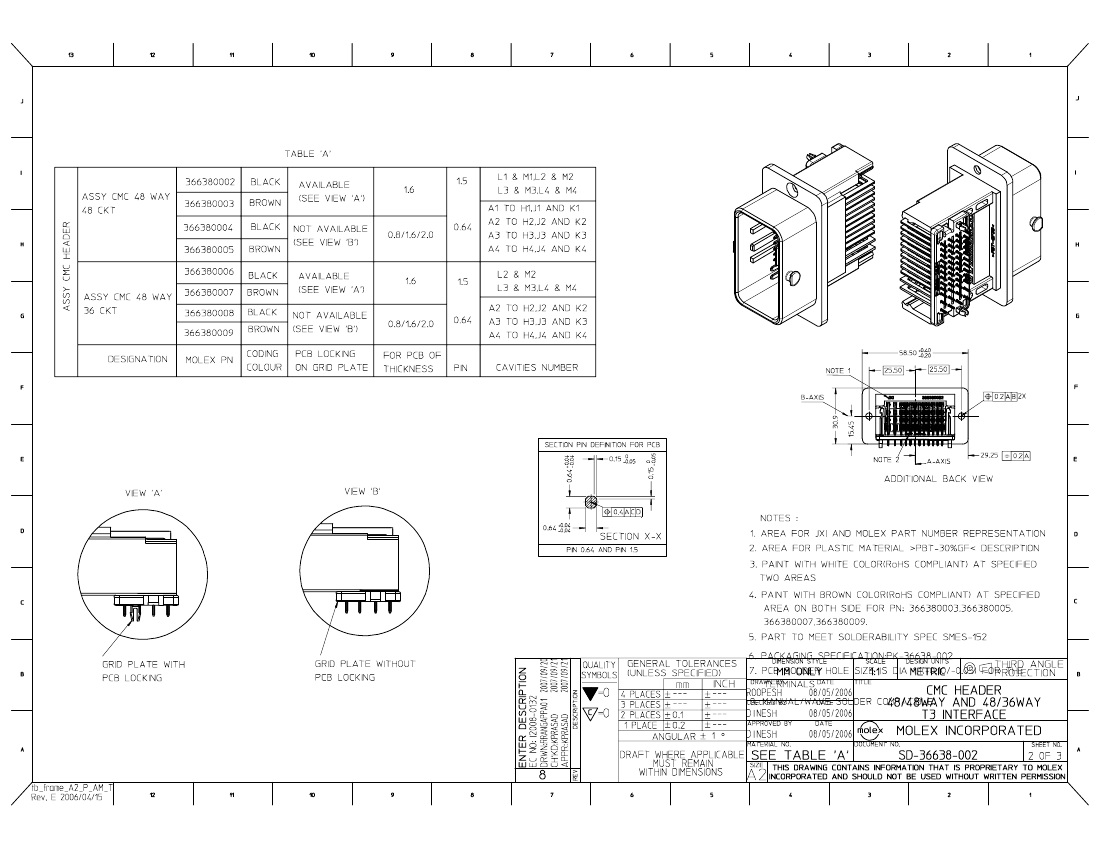

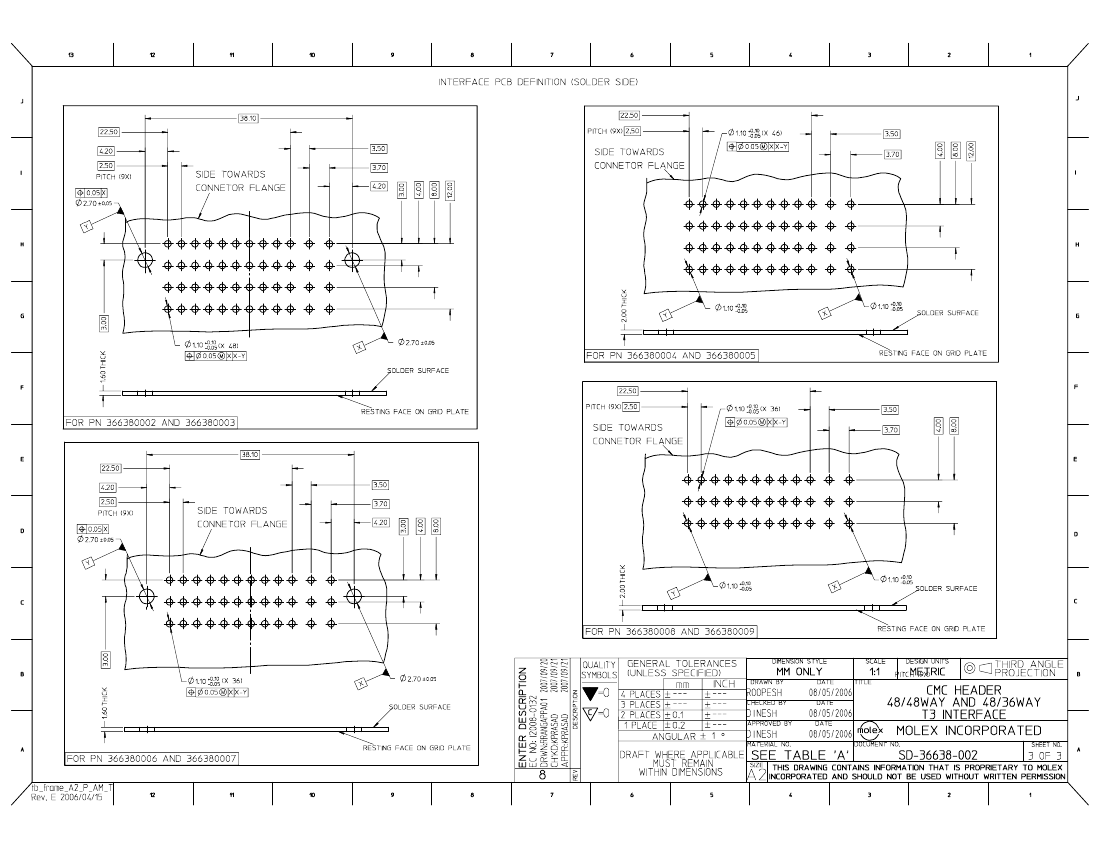

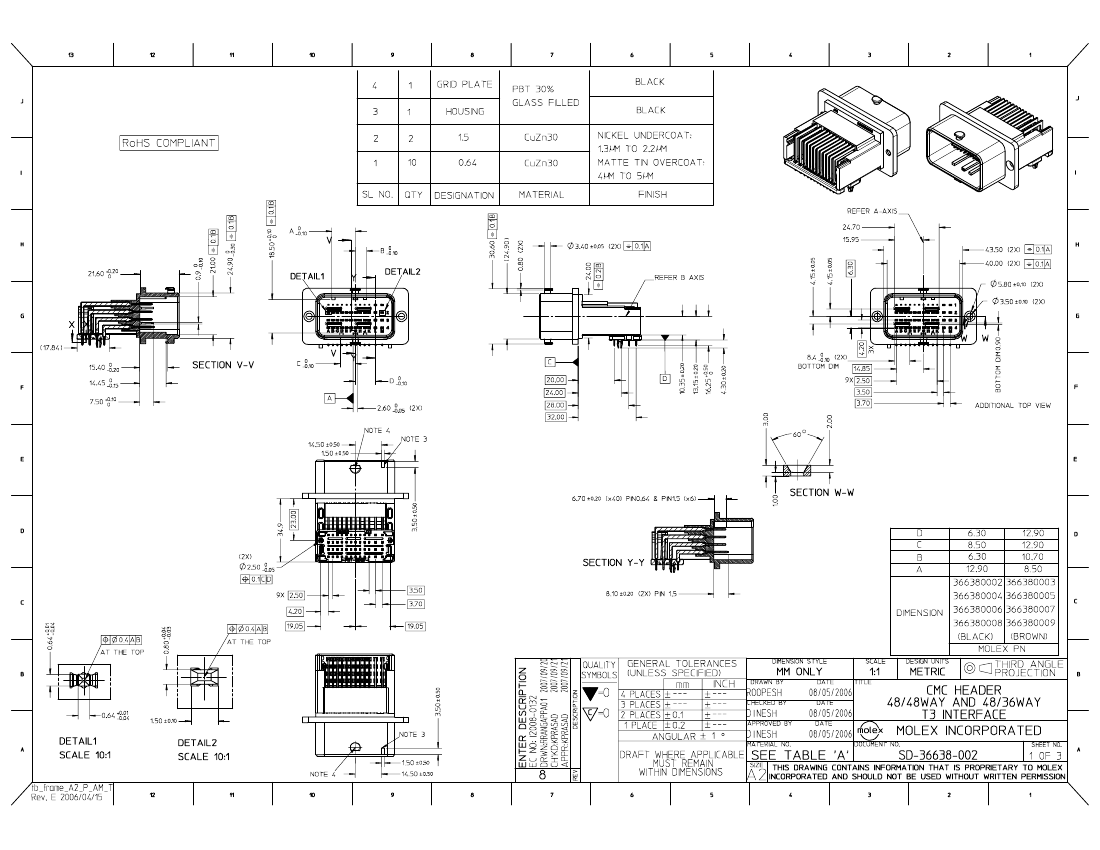

Sales Drawing
PK-36638-001, PK-36638-002
SD-36638-002
