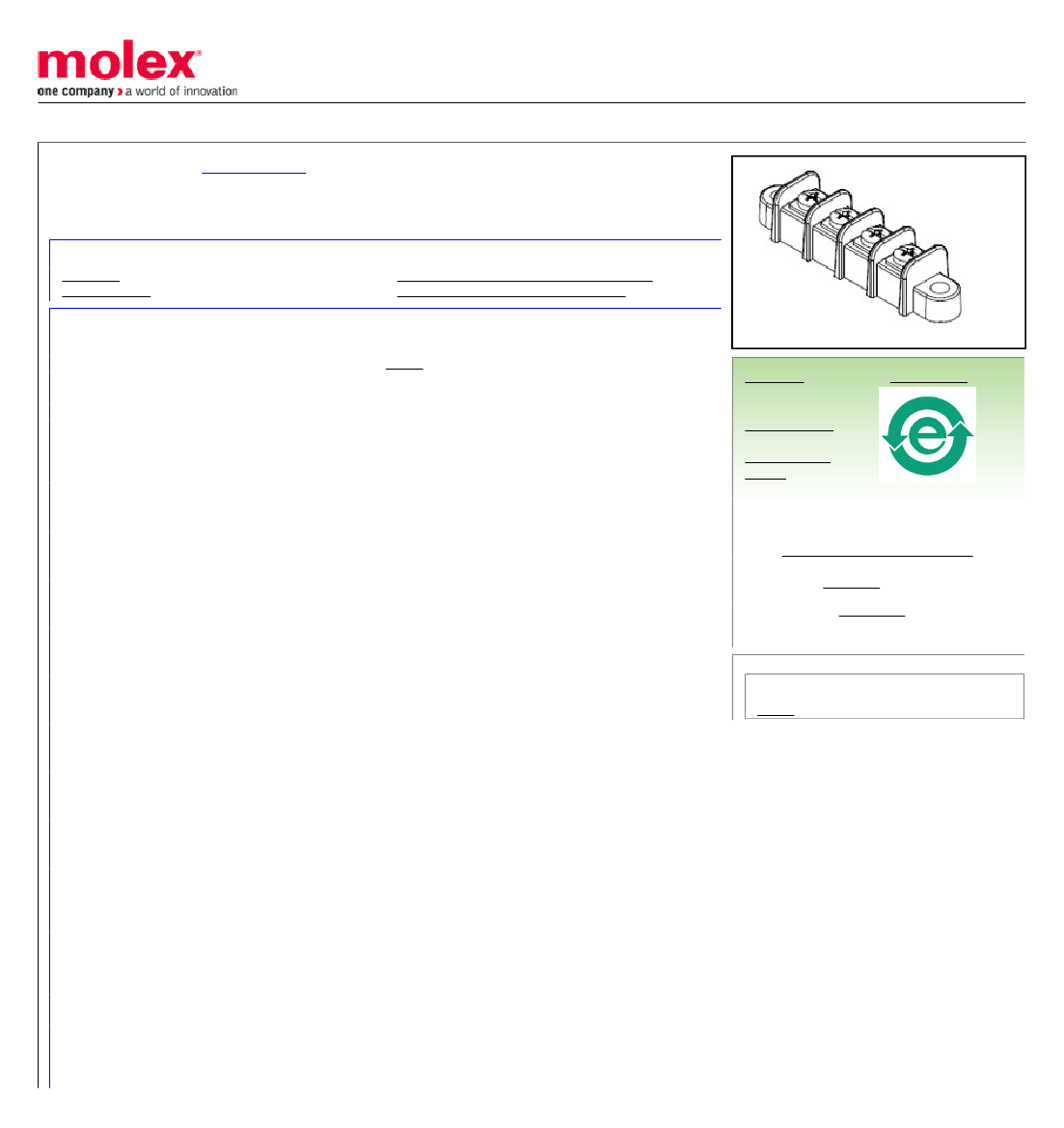

This document was generated on 04/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0387406102
Active
11.11mm (.437") Pitch Beau™ PCB Fixed Mount Barrier Terminal Strip, Low Profile,
300V, 2 Circuits
Documents:
3D Model

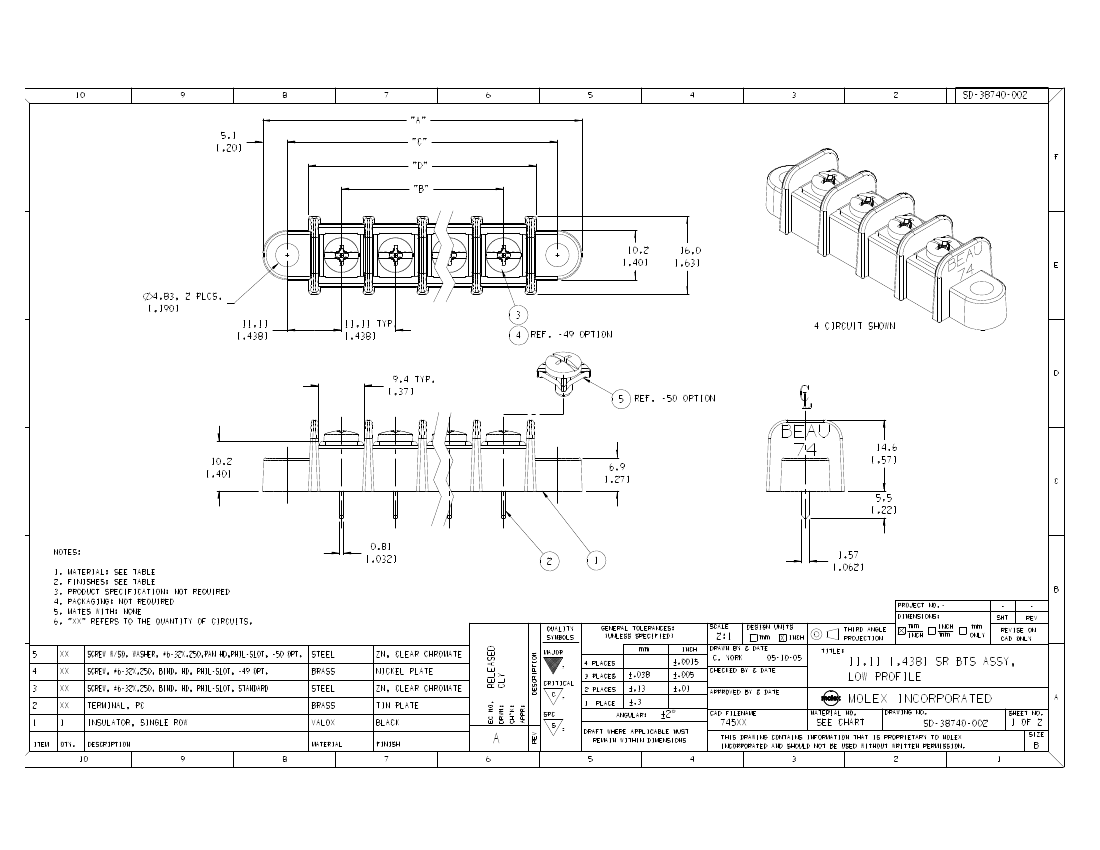

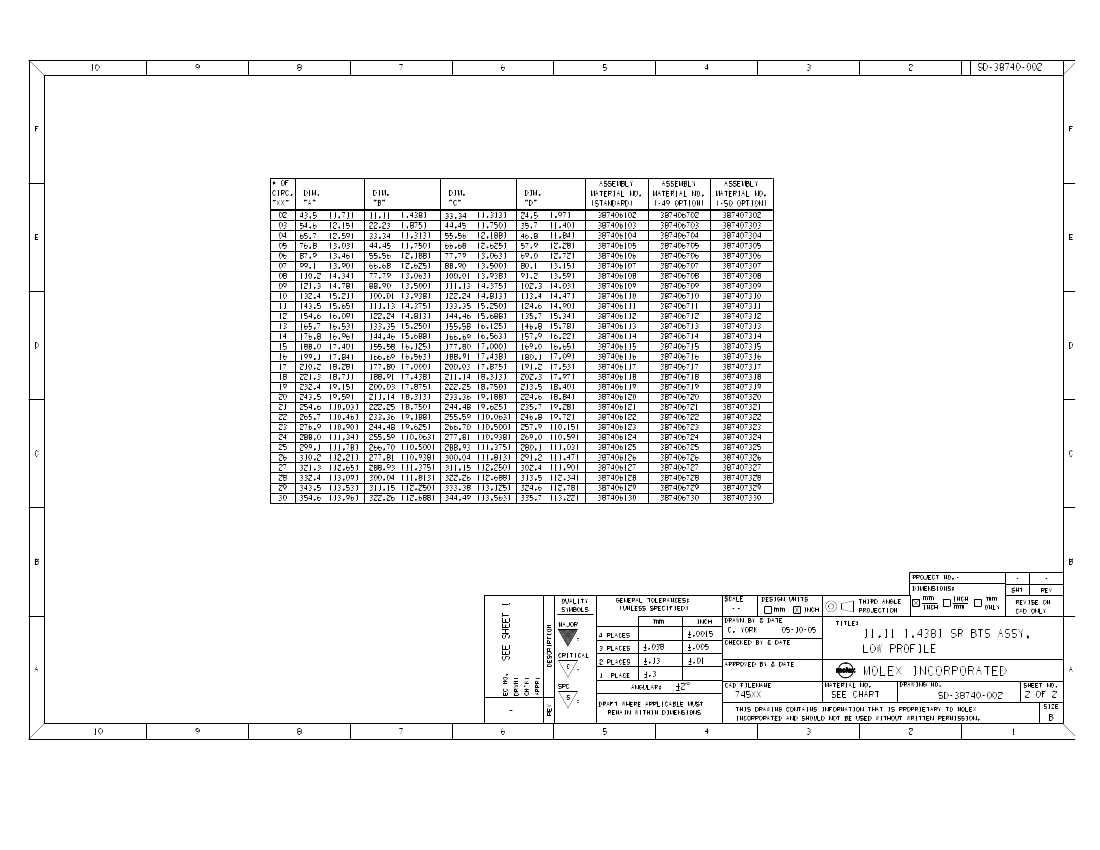

Drawing (PDF)
Product Specification PS-38730-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Terminal Blocks
38740
Wire-to-Board
One Piece
Fixed Mount Barrier
Barrier Strip
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Component Type
Product Name
Type
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Entry Angle
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
2
2
Black
Horizontal
No
Brass
Tin
Tin
Polyester Alloy
1
Horizontal
0.216 In
5.50 mm
Yes
0.093 In
2.40 mm
No
0.437 In
11.11 mm
0.437 In
11.11 mm
No
No
-40°C to +130°C
14, 16, 18, 20, 22
0.50 - 1.50
Search Parts in this Series
38740Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
15A
300V
Solder Process Data
Lead-free Process Capability
Wave Capable (TH only)
Material Info
Old Part Number
74502
Reference - Drawing Numbers
Product Specification
PS-38730-001
