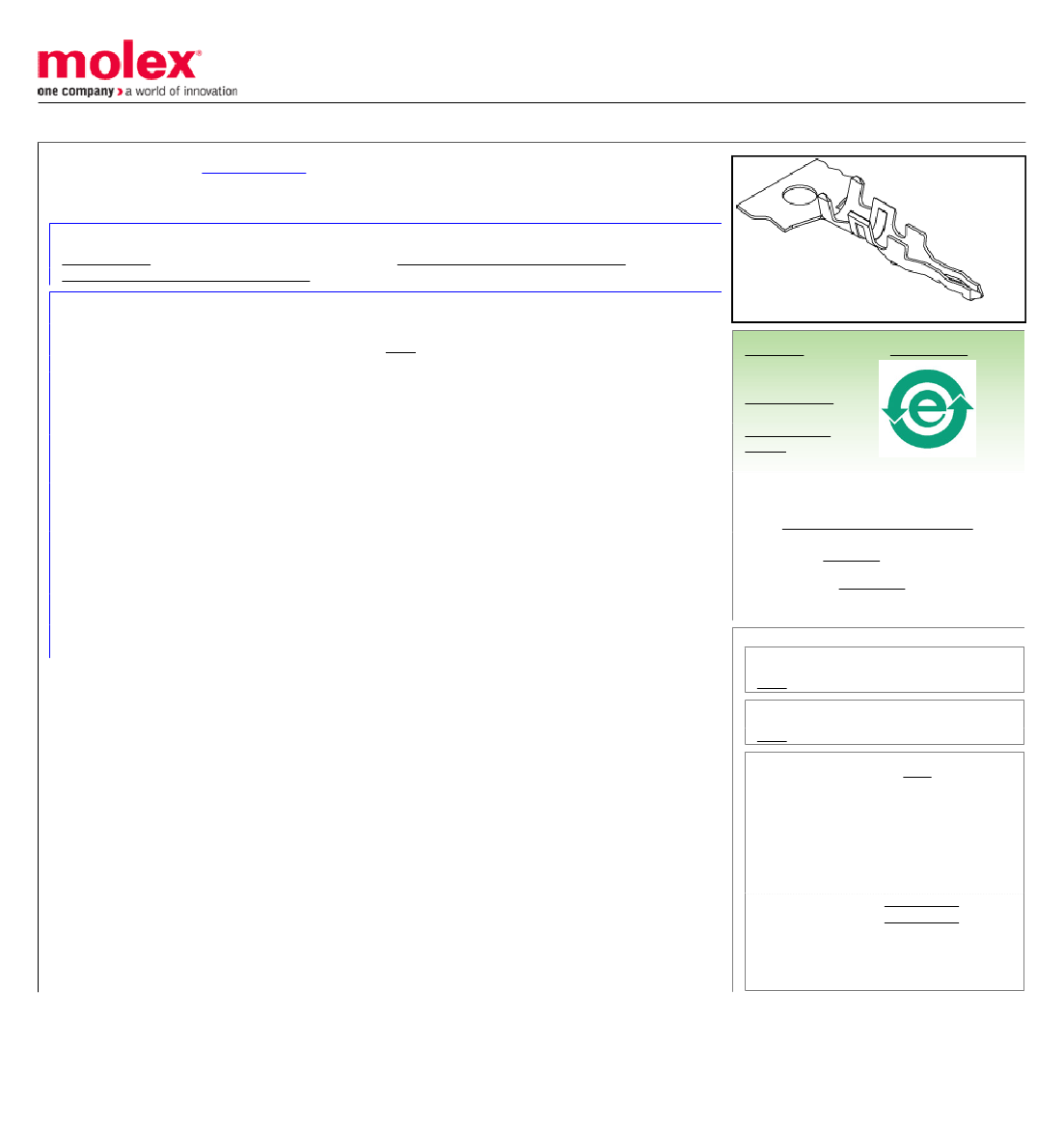

Part Number:
Status:
Description:
0039000034
Active
Crimp Terminal 5394, 20-22 AWG, Reel
Documents:
Drawing (PDF)
Product Specification PS-5395-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
General
Product Family
Series
Crimp Quality Equipment
Product Name
Crimp Terminals
5394
Yes
Board-In
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Gender
Material - Metal
Material - Plating Mating
Packaging Type
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Male
Brass
Tin
Reel
Crimp or Compression
1.60-2.10mm (.063-.083")
20, 22
N/A
Material Info
Old Part Number
5394T2
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-5395-001

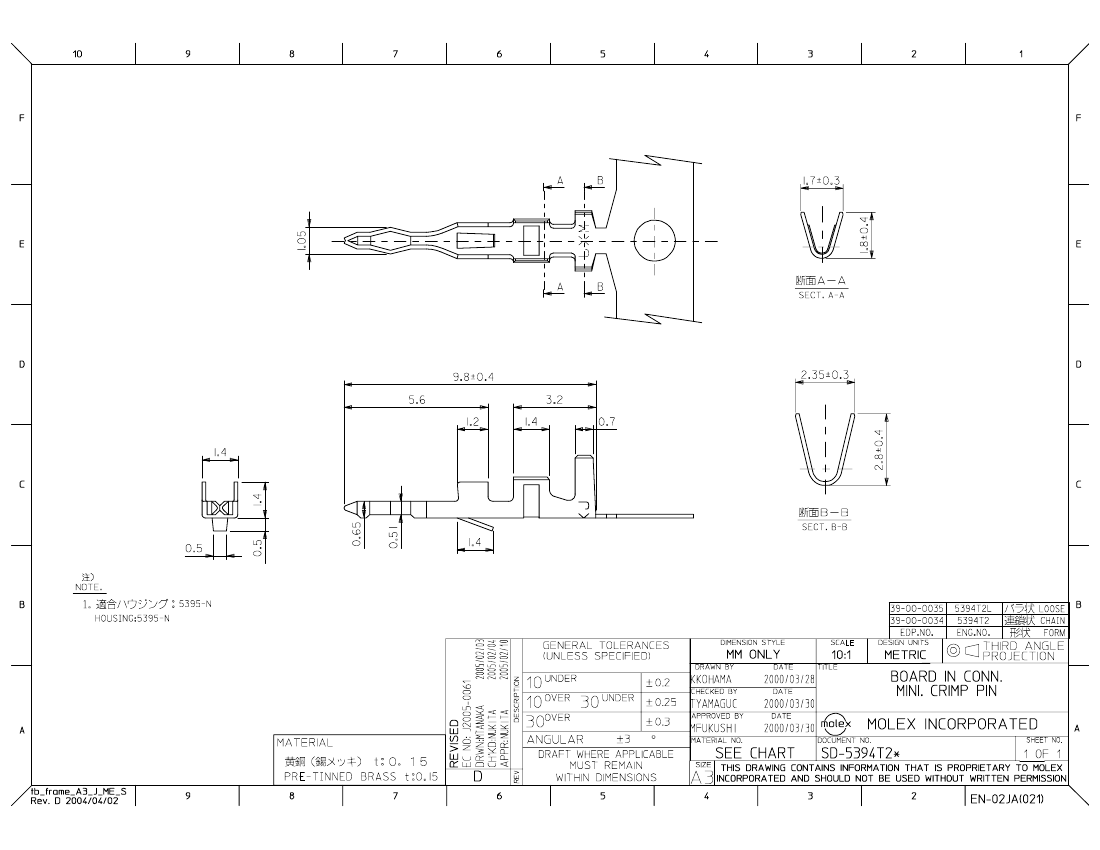

SD-5394T2*
Search Parts in this Series
5394Series
Use With
5395 Board-In Housing
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Terminator Die
0011402221
FineAdjust™
0639006300
Applicator for Board
in Connector Mini
Crimp Terminals,
20-22 AWG
