This document was generated on 04/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0391001302

Active

12.00mm (.472") Pitch Beau™ Eurostyle™ Two-Screw Terminal Strips, 2 Circuits, Low

Profile

Documents:

3D Model

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

25562

E82573

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39100

Wire-to-Wire

One Piece

USA-303

Eurostyle™Two Screw

Euro Block

Physical

Circuits (Loaded)

Entry Angle

Flammability

Lock to Mating Part

Number of Rows

Orientation

PCB Retention

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Wire Size AWG

Horizontal

94V-2

None

Vertical

Yes

Mounting Holes Between Circuit

0.472 In

12.00 mm

0.315 In

8.00 mm

100°C

10, 12, 14, 16, 18, 20, 8

Search Parts in this Series

39100Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

40A

300V

Material Info

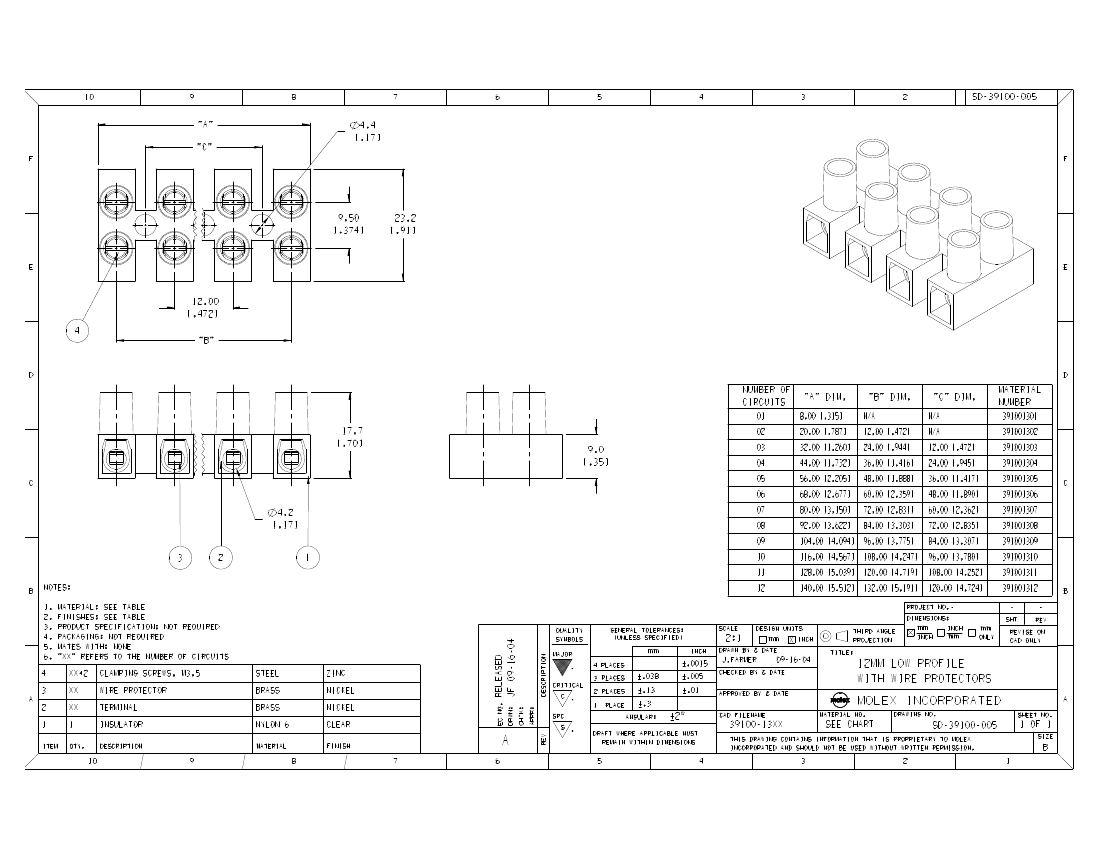

Reference - Drawing Numbers

Sales Drawing

SD-39100-005

This document was generated on 04/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
