This document was generated on 04/23/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
3D Model
Drawing (PDF)
0395200012
Active
5.00mm (.197") Pitch Eurostyle™ Horizontal Plug, 12 Circuits
Product Specification PS-39500-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39520
Wire-to-Board
Plug
USA-355
ESE, Eurostyle™Pluggable
Euro Block

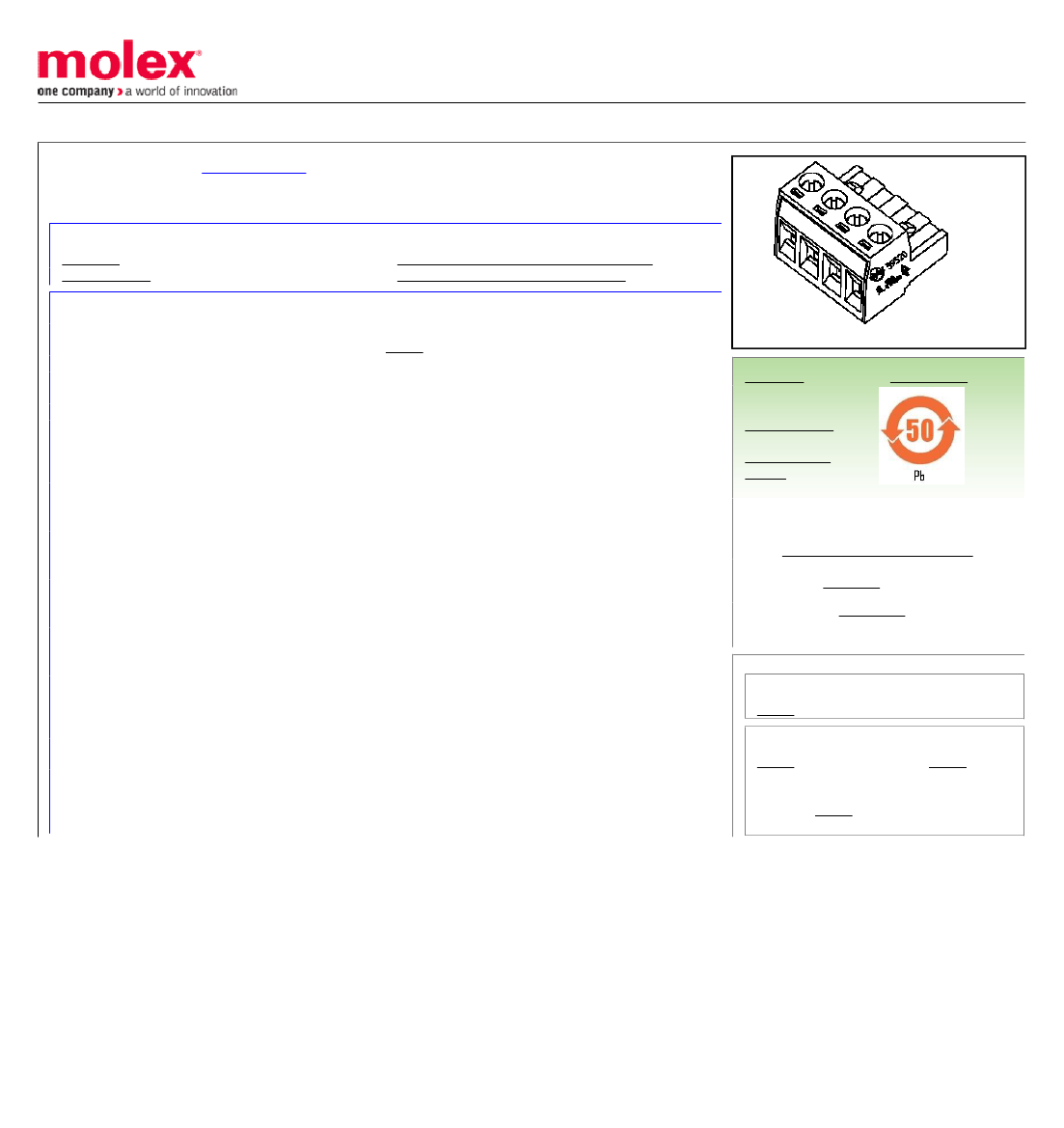

image - Reference only
Series
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
12
Vertical
Yes
1
Horizontal
No
0.197 In
5.00 mm
Yes
No
-40°C to +105°C
12, 14, 16, 18, 20, 22, 24, 26
0.13 - 3.31
EU RoHS
China RoHS
RoHS Compliant by
Exemption
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Electrical
Current - Maximum per Contact
Voltage - Maximum
15A
300V
Search Parts in this Series
39520Series
Mates With
39521 Vertical PCB Header, 39522
Horizontal PCB Header, Most 5.00mm
(.197") Pitch Industry Standard PCB
Headers, 39528 Dual Level PCB Header,
Open Ends
Material Info
Reference - Drawing Numbers
Product Specification

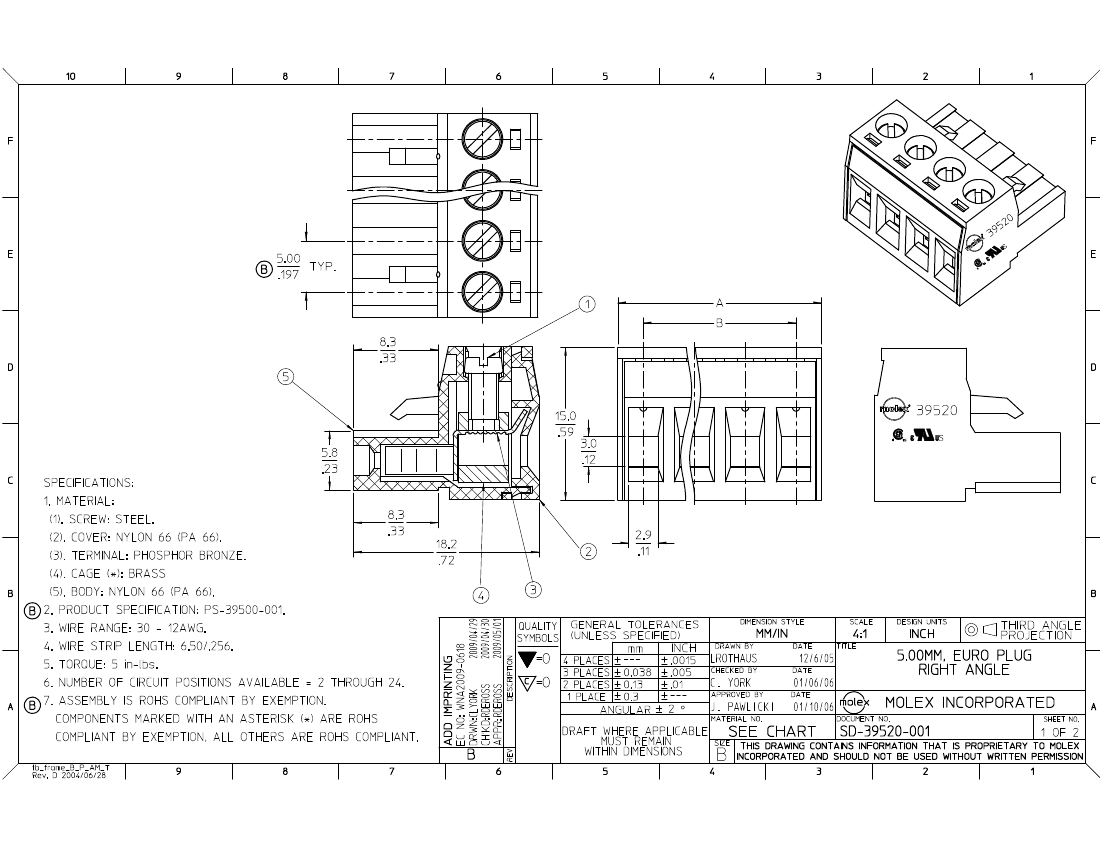

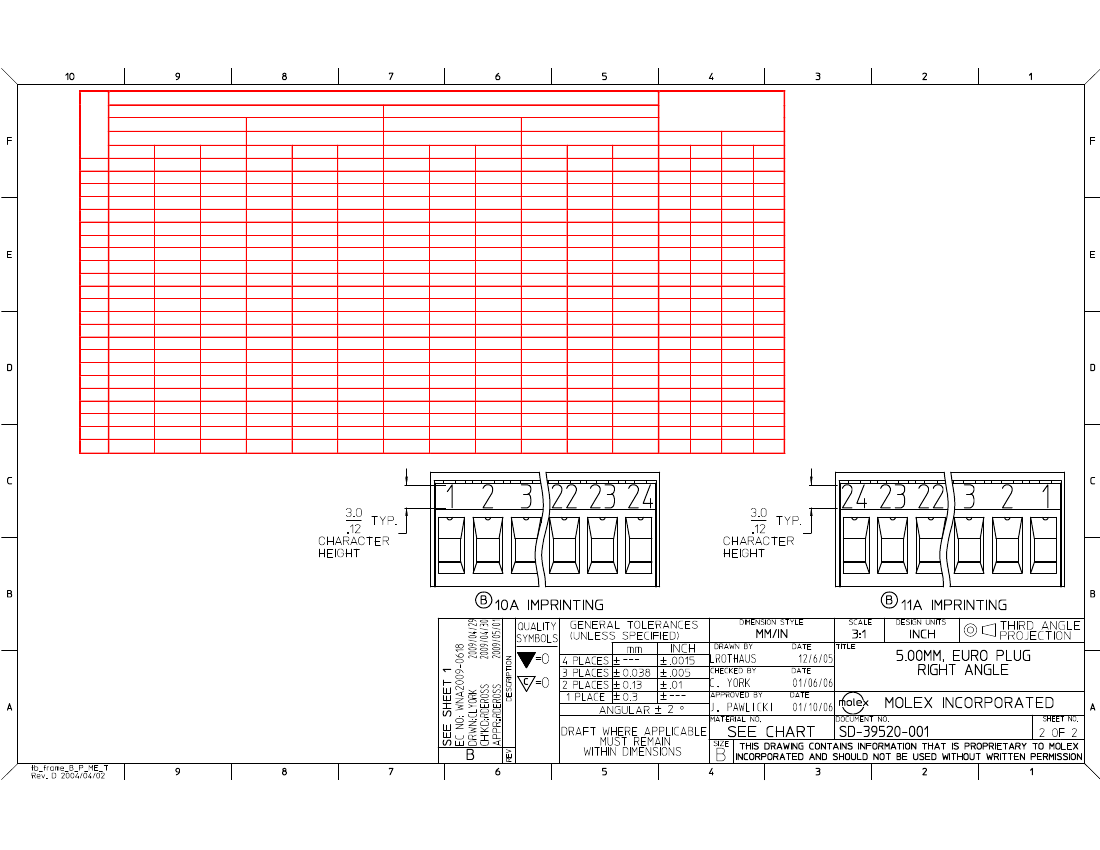

Sales Drawing
PS-39500-001
SD-39520-001
This document was generated on 04/23/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
