Part Number

Search

395300004

Description
4 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART EURO CONNECTOR, PLUG
CategoryThe connector
File Size137KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

395300004 Overview

4 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART EURO CONNECTOR, PLUG

395300004 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresNYLON
Fastening methodSCREW
Installation typeCONNECTOR
Number of layers1
Rows1
Number of channels4
Rated current15 A
Rated voltage300 V
safety certificateCSA; CUL; UL
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Wire gauge12 AWG

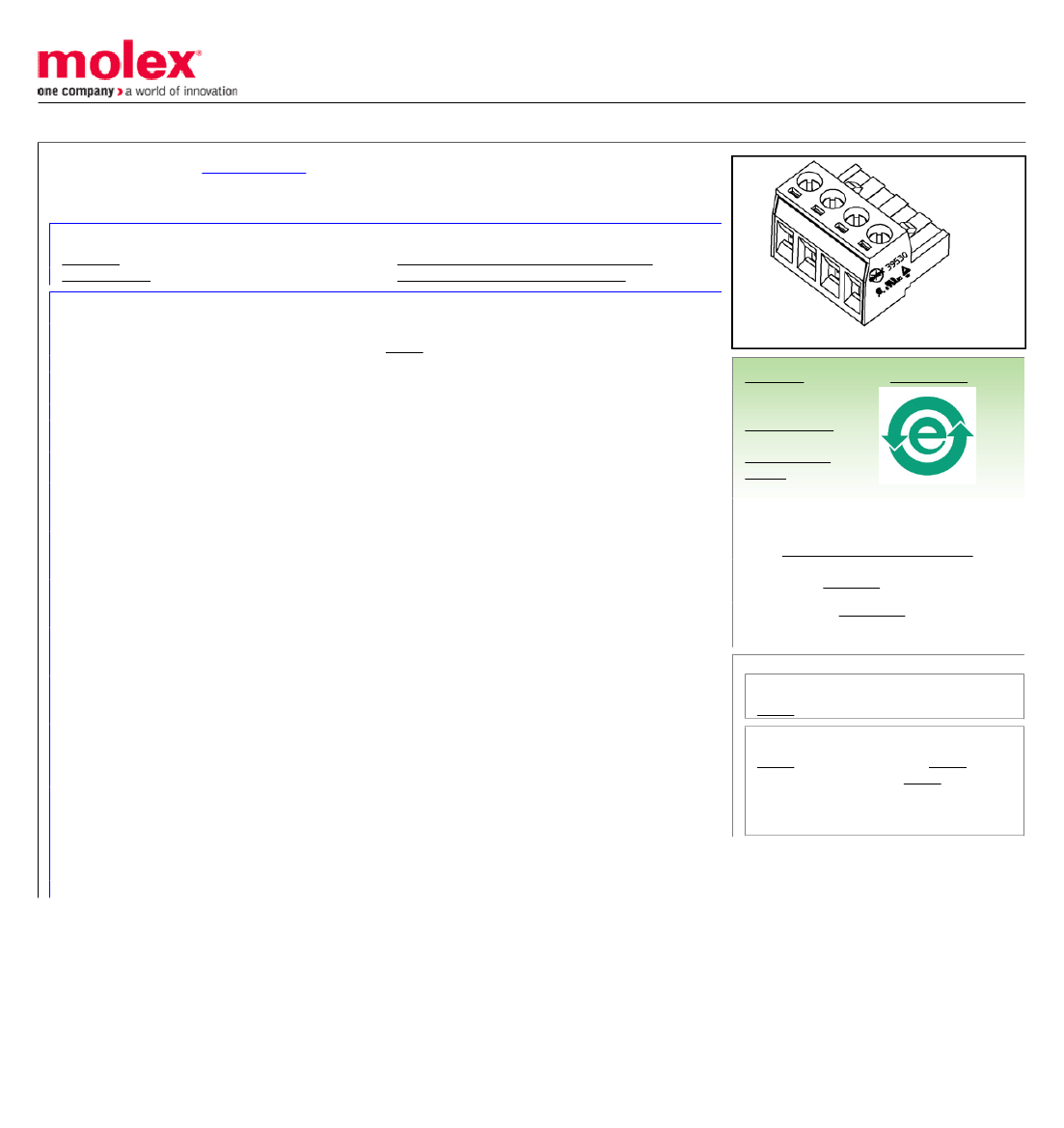

This document was generated on 06/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
3D Model
Drawing (PDF)
0395300004
Active
5.08mm (.200") Pitch Eurostyle™ Horizontal Plug, 4 Circuits
Product Specification PS-39500-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
MolexKits
Product Literature Order No
Product Name
Type
Terminal Blocks
39530
Wire-to-Board
Plug
Yes
USA-355
ESE, Eurostyle™Pluggable
Euro Block
image - Reference only
Series
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
4
Vertical
Yes
1
Horizontal
0.200 In
5.08 mm
5.08 mm
No
0.200 In
5.08 mm
Yes
No
-40°C to +105°C
12, 14, 16, 18, 20, 22, 24, 26
0.13 - 3.31
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
39530Series
Mates With
39531 Vertical PCB Header, 39532
Horizontal PCB Header, 39538 Dual Level
PCB Header, Open Ends, Most 5.08mm
(.200") Pitch Industry Standard PCB
Headers
Electrical
Current - Maximum per Contact
Voltage - Maximum
15A
300V
Material Info
Reference - Drawing Numbers
Product Specification

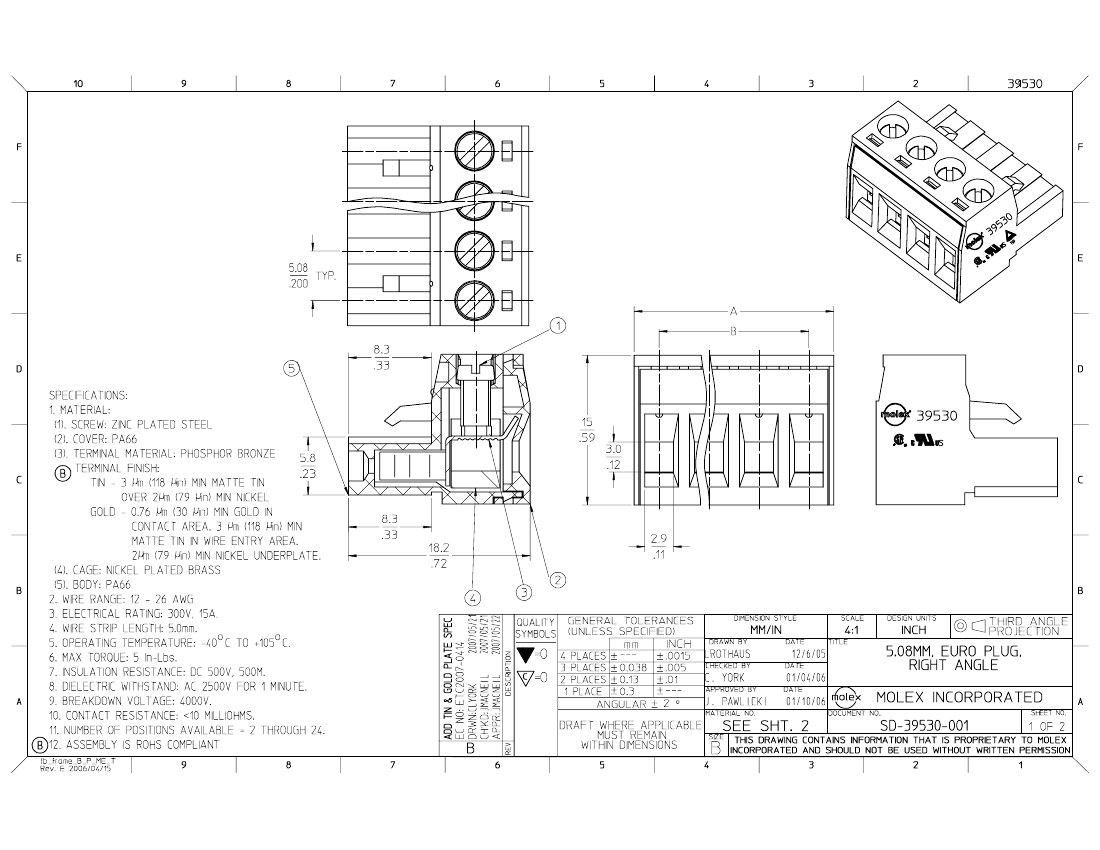

Sales Drawing
PS-39500-001, RPS-39500-001
SD-39530-001
This document was generated on 06/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
