395324006: Description5.08mm; File Size162KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

395324006 Overview

5.08mm

Preview

Download Datasheet

View All

This document was generated on 03/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0395324006

Active

5.08mm (.200") Pitch Eurostyle™ Horizontal PCB Header, Surface Mount Compatible,

6 Circuits

Documents:

3D Model

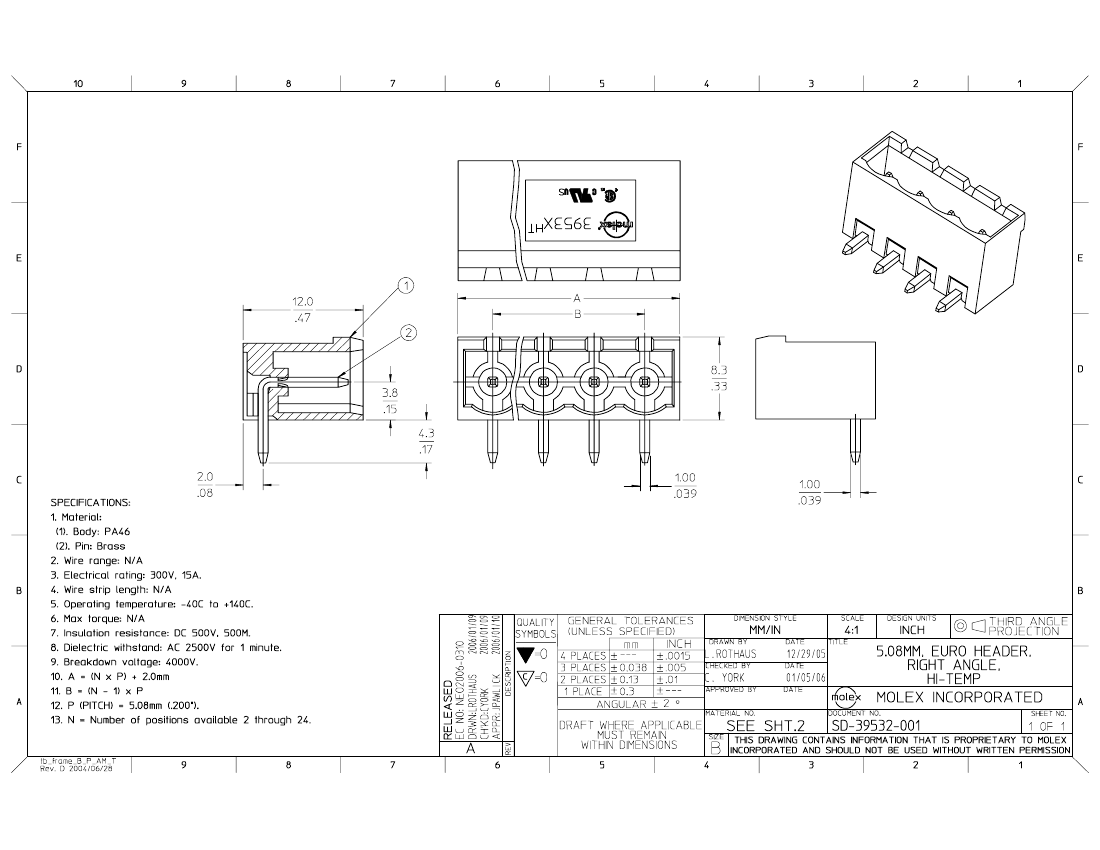

Drawing (PDF)

Product Specification PS-39500-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39532

Wire-to-Board

PCB Header

USA-355

ESE, Eurostyle™Pluggable

Euro Block

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Wire Size AWG

N/A

Yes

Horizontal

0.200 In

5.08 mm

0.125 In

5.08 mm

0.200 In

5.08 mm

Yes

Closed Ends

Yes

-40°C to +140°C

N/A

Search Parts in this Series

39532Series

Mates With

39530 Horizontal Plug, 39533 Vertical

Plug, Most 5.08mm (.200") Pitch Industry

Standard Plugs

Electrical

Current - Maximum per Contact

Voltage - Maximum

15A

300V

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-39500-001

SD-39501-002, SD-39532-001
