0398800419
Active
5.08mm (.200") Pitch Beau™ Eurostyle™ Low Profile, Fixed Block, 35° Wire Entry,
Modular, 19 Circuits
Documents:
3D Model

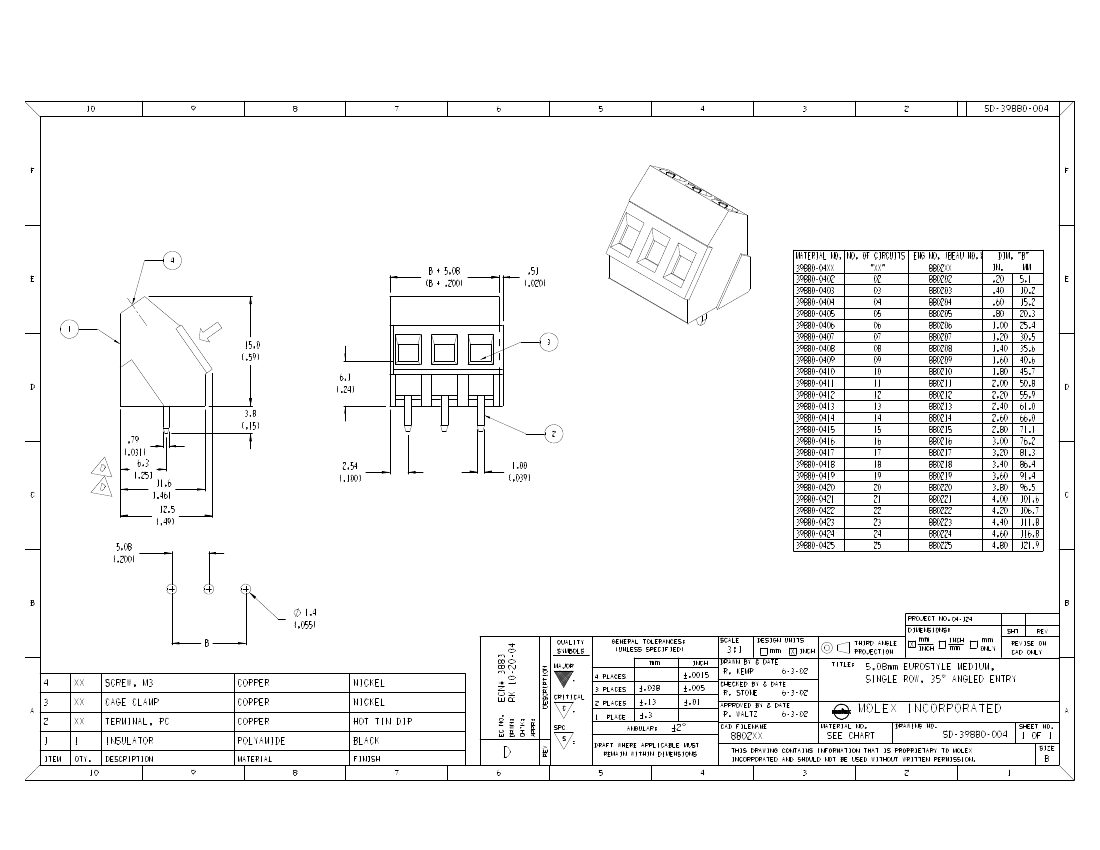

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR25562
E48521
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39880
Wire-to-Board
One Piece
USA-260
Eurostyle™Fixed Mount
Euro Block
Physical
Circuits (Loaded)
Entry Angle
Flammability
Lock to Mating Part
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Shrouded
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
19
35° Angle
94V-0
None
1
Vertical
0.150 In
3.80 mm
None
0.102 In
2.60 mm
No
0.200 In
5.08 mm
0.200 In
5.08 mm
N/A
Fully
Yes
105°C
12, 14, 16, 18, 20, 22, 24, 26, 28, 30
0.05 - 2.50
Search Parts in this Series
39880Series
Mates With
N/A
Electrical
Current - Maximum per Contact
Voltage - Maximum
17.5A
300V
Material Info
Old Part Number
880219
Reference - Drawing Numbers
Sales Drawing
SD-39880-004
