399400409 Overview

5.08mm

399400409 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknow
ECCN codeEAR99
Factory Lead Time25 weeks 5 days
Other featuresTHERMOPLASTIC
Fastening methodSCREW
Installation typeCABLE
Number of layers2
Rows2
Number of channels9
Rated current10 A
Rated voltage300 V
safety certificateUL; CSA
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Conductor cross section2.5 mm2
Wire gauge12 AWG
Base Number Matches1
This document was generated on 05/13/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0399400409
Active
5.08mm (.200") Pitch Beau™ EuroMate™ Pluggable PCB Terminal Block, Dual Level,
90° Wire Entry, with Retention Screws, 9 Circuits
Documents:

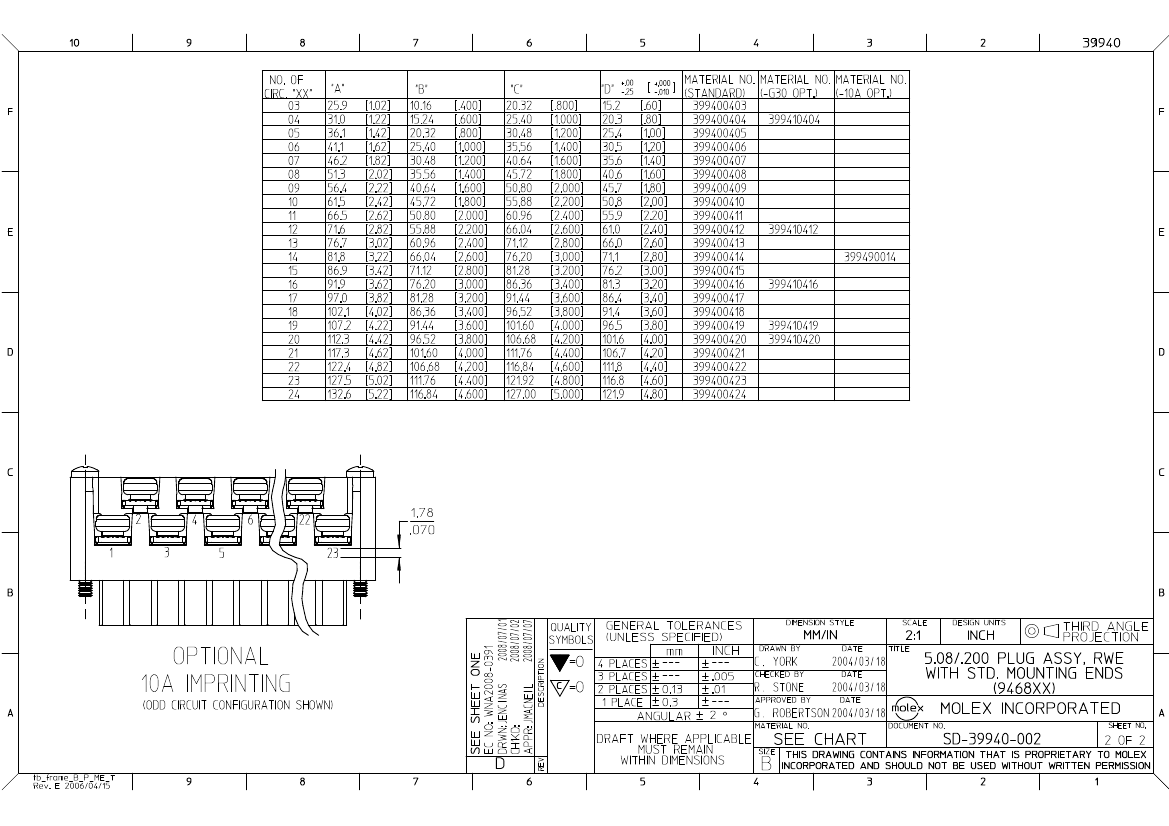

Drawing (PDF)
Product Specification PS-39940-001 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
UL
E48521
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39940
Wire-to-Board
Gold plating available
Plug
USA-264
EuroMate™Pluggable
Euro Block
Physical
Circuits (Loaded)
Color - Resin
Entry Angle
Flammability
Lock to Mating Part
Material - Resin
Number of Rows
Orientation
PCB Retention
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
Wire Size mm²
9
Black
Horizontal
94V-0
Yes
Nylon
2
Vertical
N/A
No
0.200 In
5.08 mm
0.200 In
5.08 mm
Yes
Tri-Barrier
No
130°C
Screw or Lug
12, 14, 16, 18, 20, 22
0.50 - 2.50
Search Parts in this Series
39940Series
Mates With
39535-0009 , 39535-4009 , 39536-0009 ,
39536-4009
Electrical
Current - Maximum per Contact
Voltage - Maximum
15A
300V
Material Info
Old Part Number
946809
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-39940-001
SD-39940-002

399400409 Related Products

399400409 946809
Description 5.08mm 5.08mm
Reach Compliance Code unknow unknow
ECCN code EAR99 EAR99
Other features THERMOPLASTIC POLARIZATION AVAILABLE, NYLON 6.6, 94V-0
