A-41791-0842

Description
12 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size293KB,11 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

A-41791-0842 Overview

12 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

A-41791-0842 Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codeunknow
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (15) OVER NICKEL (50)
Contact completed and terminatedTIN (100) OVER NICKEL
Contact point genderMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number41791
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch3.96 mm
Termination typeSOLDER
Total number of contacts12
UL Flammability Code94V-0
Base Number Matches1
This document was generated on 05/24/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0417910842
Active
kk
3.96mm (.156") Pitch KK® Solid Header, Vertical, Friction Lock, 12 Circuits, 0.38µm
(15µ") Gold (Au) Selective Plating
Documents:
3D Model
Packaging Specification (PDF)

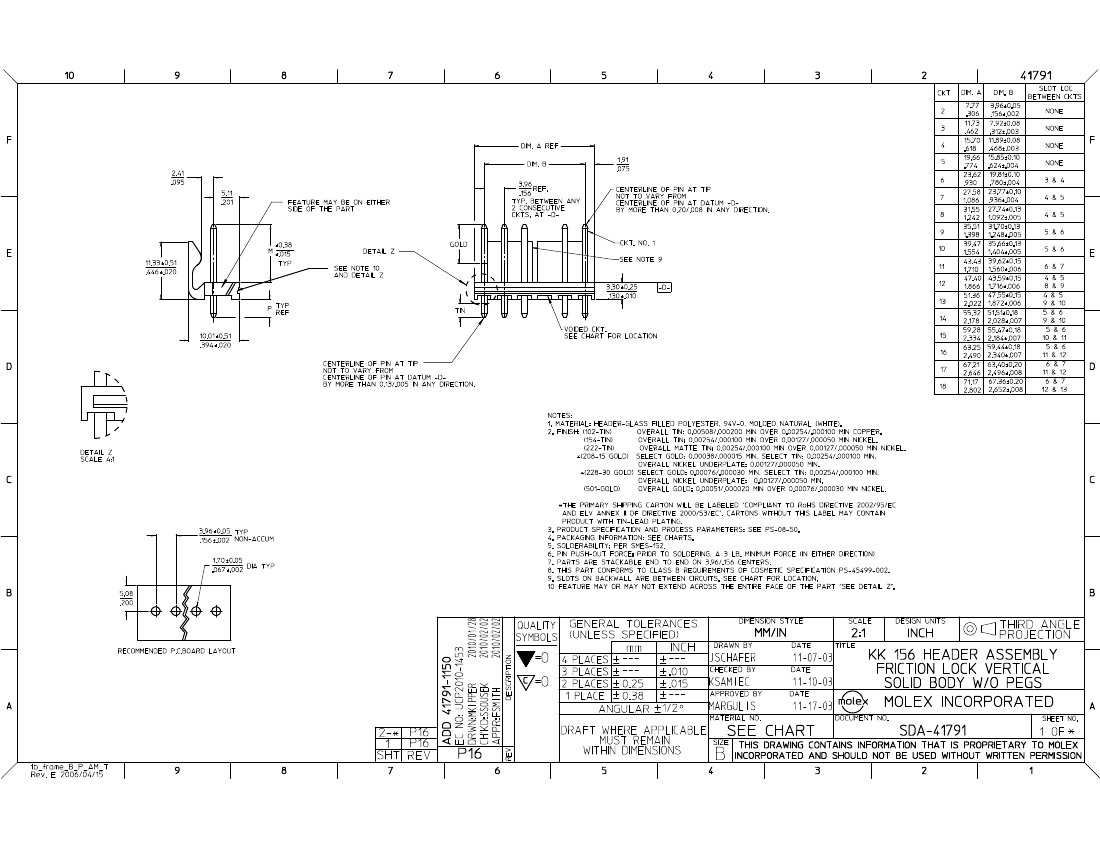

Drawing (PDF)
Product Specification PS-08-50 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
Agency Certification
CSA
UL
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
41791
Wire-to-Board
kk
KK®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
No
12
12
Natural
50
94V-0
No
Yes
Brass
Gold
Tin
Polyester
1
Vertical
0.140 In
3.56 mm
No
None
0.062 In
1.60 mm
Bag
0.156 In
3.96 mm
15
0.38
100
2.5
Yes
No
Partial
Yes
0°C to +75°C
Through Hole
Search Parts in this Series
41791Series
Mates With
3069 , 2139 , 2145 , 6442 , 7674 , 7675 ,
41695 , L ink:41815

A-41791-0842 Related Products

A-41791-0842 0417910842
Description 12 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER 12 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
