8N45S11855120 datasheet, PDF - EEWORLD Datasheet

8N45S11855120: DescriptionCircular Connector, 3 Contact(s), Stainless Steel, Female, Plug,; CategoryThe connector The connector; File Size1MB，6 Pages; ManufacturerSOURIAU

Download Datasheet Parametric View All

8N45S11855120 Overview

Circular Connector, 3 Contact(s), Stainless Steel, Female, Plug,

Parameter Name	Attribute value
Maker	SOURIAU
Reach Compliance Code	unknown
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	STAINLESS STEEL
Housing size	11
Total number of contacts	3

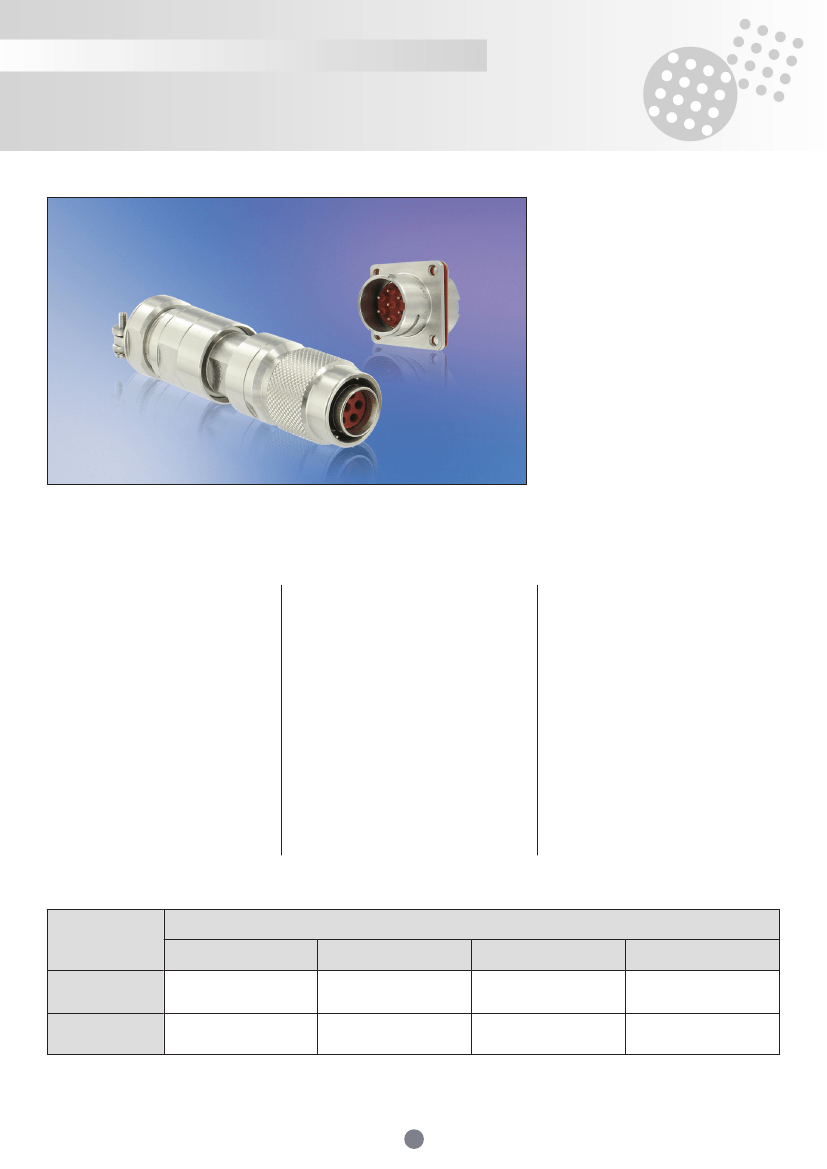

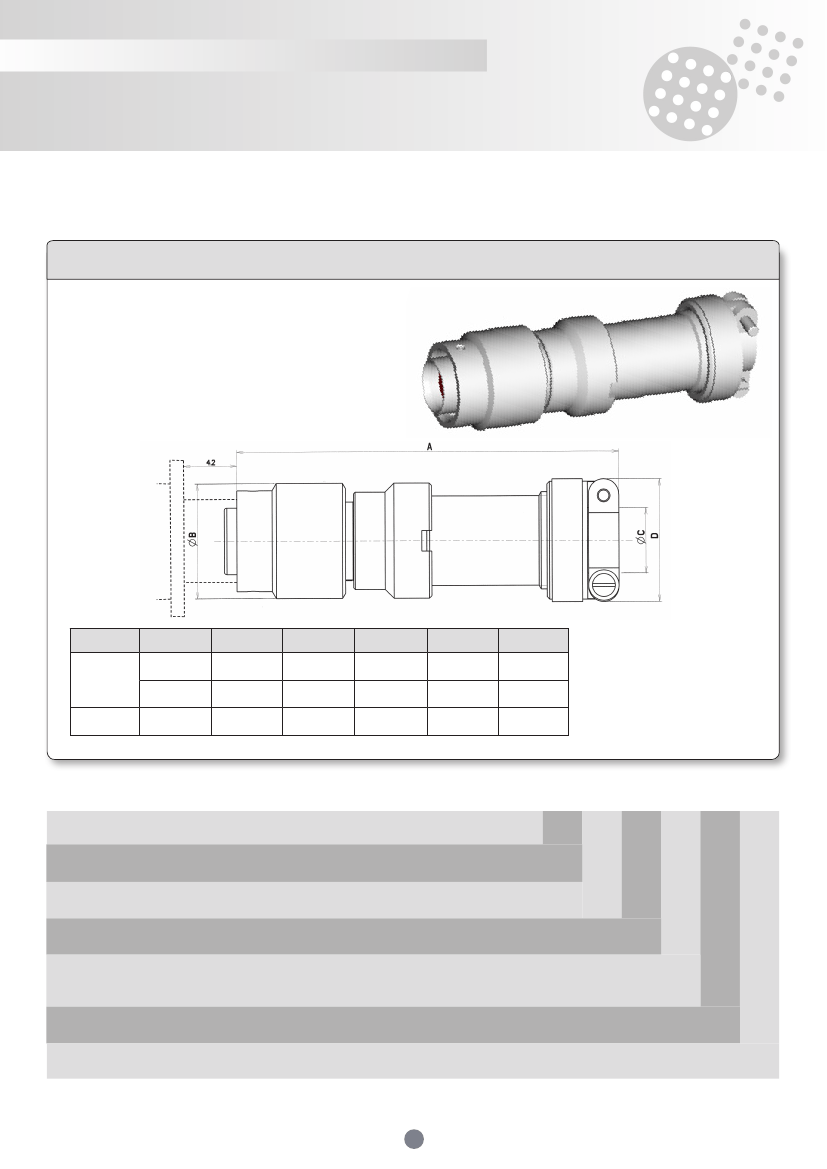

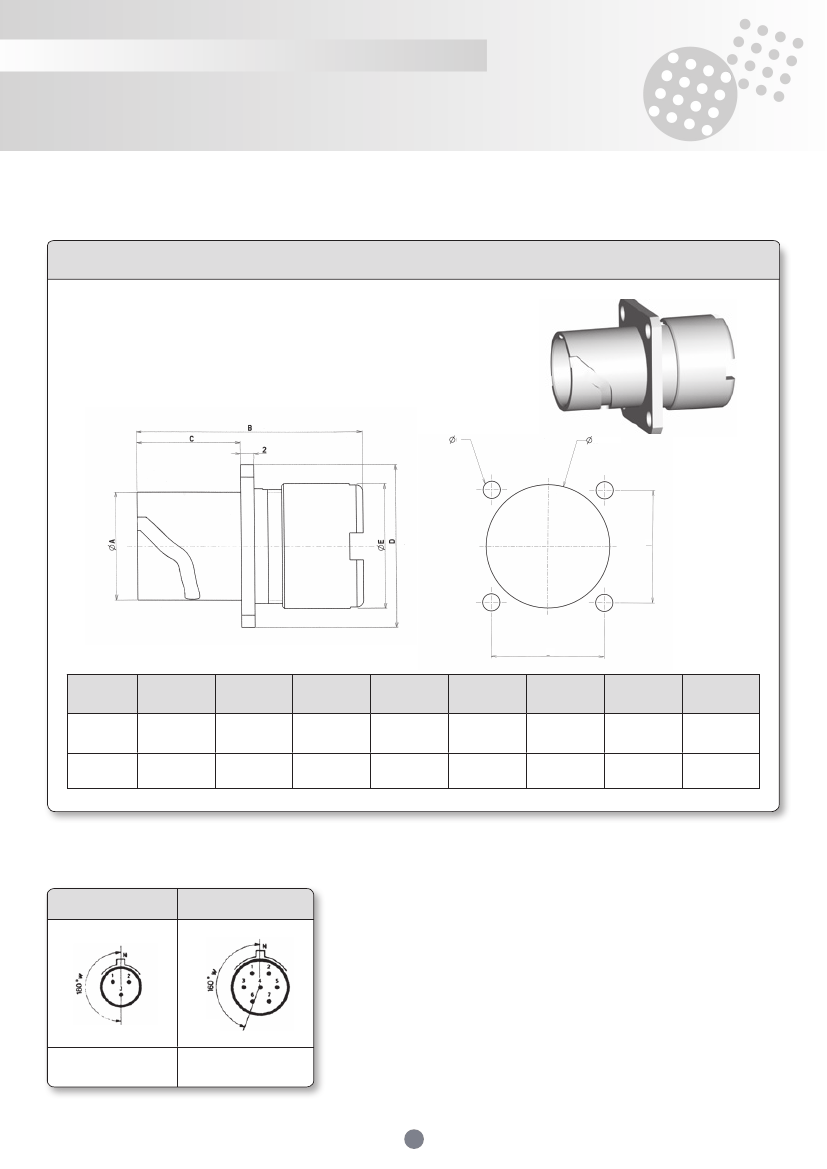

8N45 Series

Reactor Containment Certified Connectors

Class 1E qualified connector with quick connect 1/4 turn bayonet

coupling designed to operate safely during normal and seismic conditions

in various applications in the reactor containment buildings.

High sealing level

✓

Submersion: 6 m of water; 24 hrs

Jet spray: 0,1MPa; 1 min

Temperature range: -10 to 70°C (1 to 1

58°F)

Radiation: 25 MRads at 20°C (68°F)

Salt spray resistance: 168 hrs

Environmental performances

Accident testing

Operating Basis Earthquake (OBE): 3g ZPA

Safe Shutdown Earthquake (SSE): 6g ZPA

Qualification standards

EDF HM63 / 7195, Class 1E K2;

RCC-E 1993 & 2002
