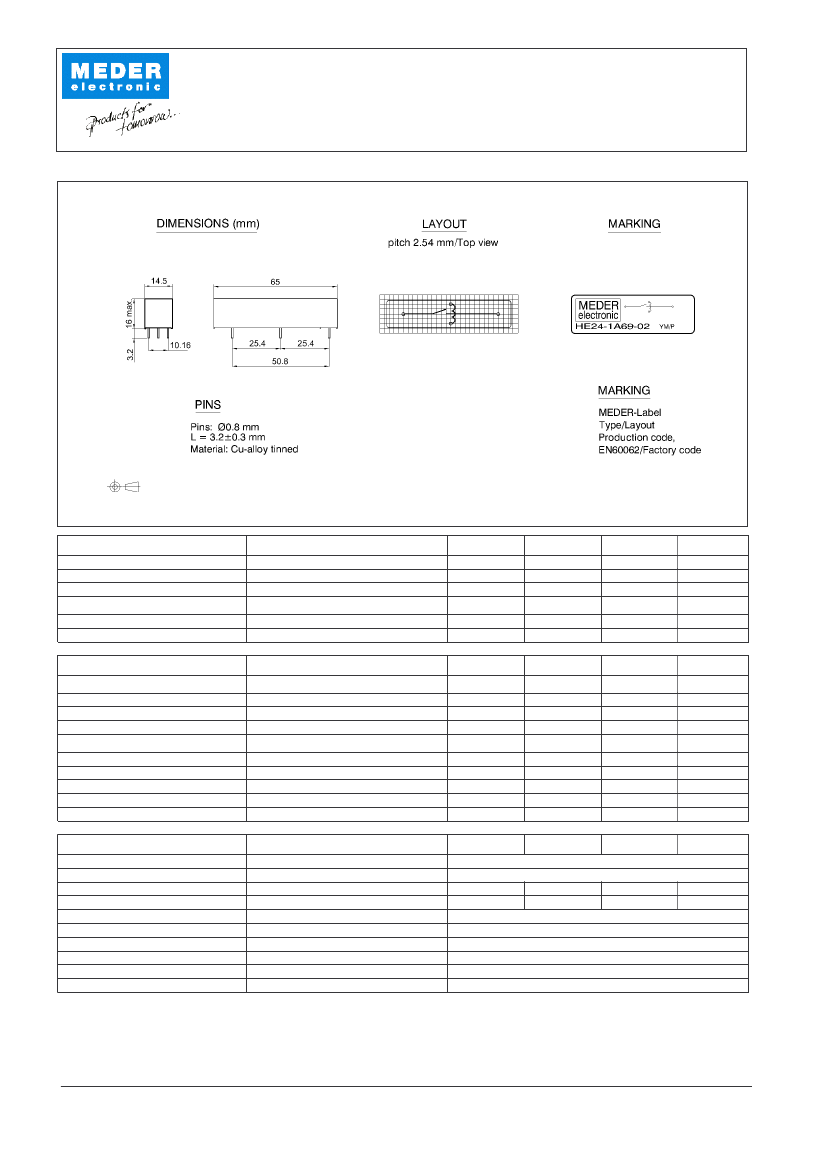

Preview

8524169002: DescriptionDry Reed Relay, SPST, Momentary, 0.052A (Coil), 24VDC (Coil), 1240mW (Coil), 3A (Contact), 10000VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS AND REACH COMPLIANT; CategoryMechanical and electronic products relay; File Size110KB，2 Pages; ManufacturerStandex

Download Datasheet Parametric View All

8524169002 Overview

Dry Reed Relay, SPST, Momentary, 0.052A (Coil), 24VDC (Coil), 1240mW (Coil), 3A (Contact), 10000VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS AND REACH COMPLIANT

8524169002 Parametric

Parameter Name	Attribute value
Maker	Standex
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	14.5 mm
body height	16 mm
Body length or diameter	65 mm
Maximum coil current (DC)	0.052 A
Coil operating voltage (DC)	18 V
Coil power	1240 mW
Coil release voltage (DC)	2 V
Coil resistance	465 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	3A@10000VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	3 A
Contact (DC) maximum rated R load	3A@10000VDC
Maximum contact voltage (AC)	10000 V
Maximum contact voltage (DC)	10000 V
Contact/Output Power Type	AC/DC
JESD-609 code	e3
Manufacturer's serial number	8524169002
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	3 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
method of packing	BOX
physical size	65mm x 14.5mm x 16mm
Relay action	MOMENTARY
Relay function	SPST
Relay type	DRY REED RELAY
release time	1.5 ms
seal	WATER PROOF
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER
