This document was generated on 04/14/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
Drawing (PDF)
0191930171
Active
VersaKrimp™ Ring Tongue Terminal for 8 AWG Wire
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E32244
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Comments
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
19193
Type I Noninsulated; Class 2
Yes
AS20659-108, MS20659-108
VersaKrimp™
Ring
Physical
Barrel Type
Insulation
Material - Plating Mating
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Stud Size
Termination Interface: Style
Wire Size AWG
Wire Size mm²
Closed - Brazed
None
Tin
Bag
100
2.5
100
2.5
5/16" (M8)
Crimp or Compression
8
0.60 - 10.5
Search Parts in this Series
19193Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Putt Pump Dieless 0192860065
Head System
Manual tool for
0192940008
Crimping non-
insulated 8AWG thru
4/0 Terminals
Manual Putt Pump 0192860117
Hydraulic System,
Die set required
Die Set (large) for
0192900001
the HHLS Hydralic
Crimper
Hand Crimp Tool
0640013900
Material Info
Old Part Number
D-351-56
Reference - Drawing Numbers

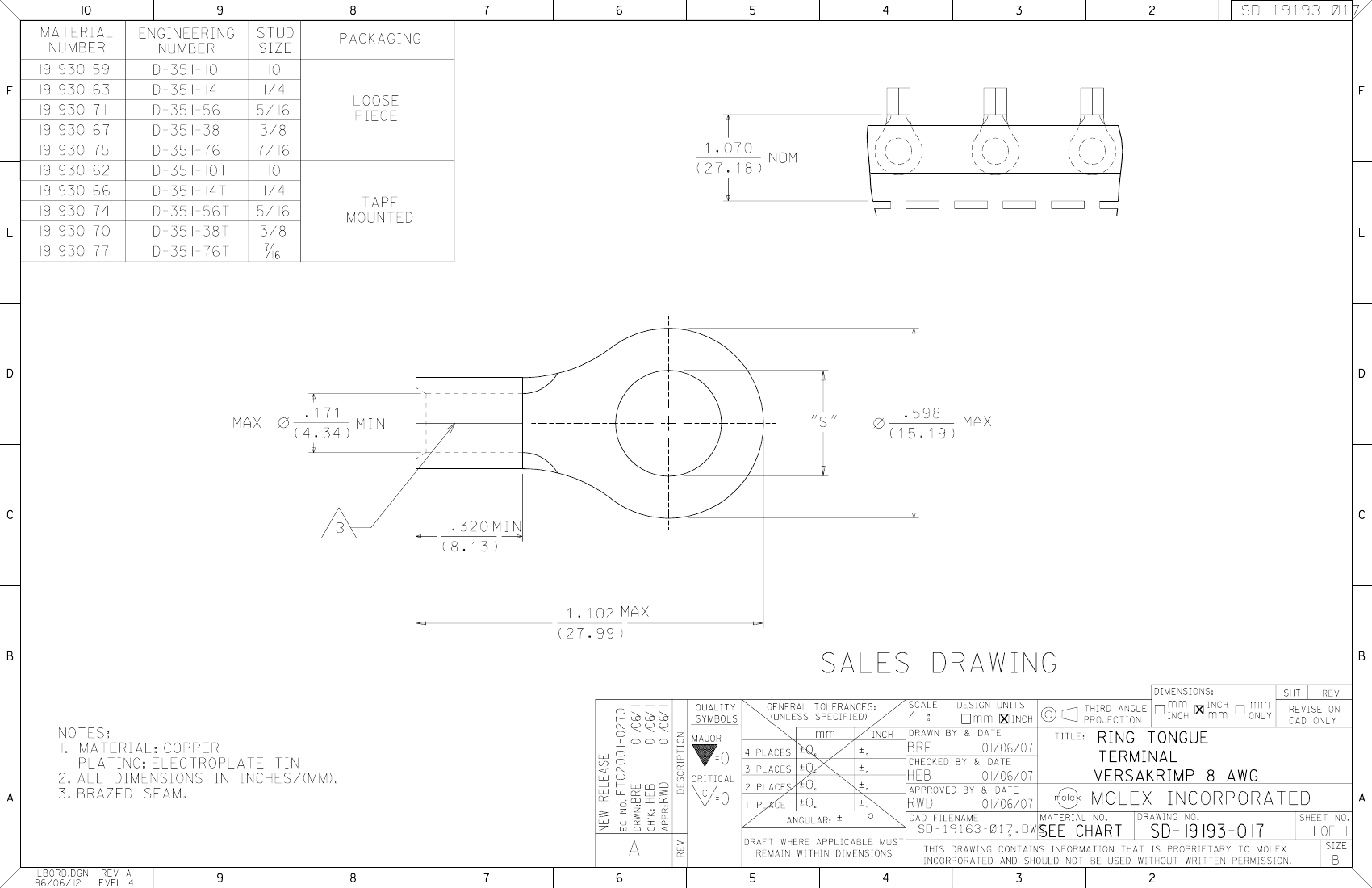

Sales Drawing
SD-19193-017
Crimp Head for the 0640074400
AT-200™ Pneumatic
Hand Tool
