Part Number:
ZCB10X106W
www.SunLED.com
APOLLO
PRELIMINARY SPEC
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
●
SUPER HIGH FLUX OUTPUT AND HIGH LUMINANCE.
●
DESIGNED FOR HIGH CURRENT OPERATION.
●
LOW THERMAL RESISTANCE.
●
LOW VOLTAGE DC OPERATED.
●
SUPERIOR ESD PROTECTION.
●
PACKAGE: 500PCS/REEL.
●
NOT REFLOW COMPATIBLE.
●
THE COMPONENT IS INTERNALLY PROTECTED WITH
SILICONE GEL.
●
RoHS COMPLIANT.
Application Note
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic
glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.

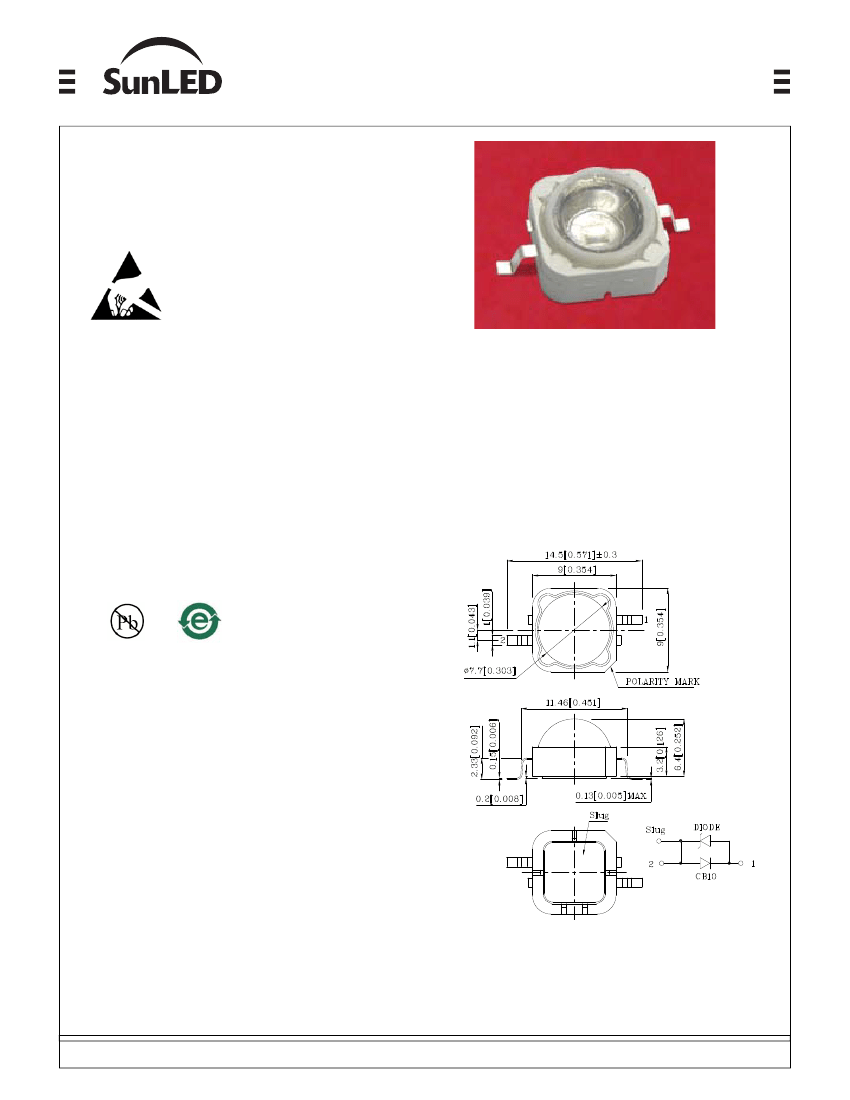

Outline Drawings
Applications
Traffic signaling.
Backlighting (illuminated advertising , general lighting).
Interior and exterior automotive lighting.
Substitution of micro incandescent lamps.
Portable light source (e.g. bicycle flashlight).
Signal and symbol luminaire for orientation.
Marker lights (e.g. steps, exit ways, etc).
Decorative and entertainment lighting .
Indoor and outdoor commercial and residential
architectural lighting.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±
0.25(0.01
") unless otherwise noted.
3. Specifications are subject to change without notice
.
Published Date : FEB 23 , 2008
Drawing No : SDSA6164
V1
Checked : B.L.LIU
P. 1/6
Part Number:
ZCB10X106W
www.SunLED.com
APOLLO
Selection Guide
Part
Number
Emitting
Color
Emitting
Material
Lens-color
Luminous
Intensity
(IF=350mA)
cd
min.
ZCB10X106W
Blue
InGaAIN
Water Clear
3.8
typ.
5.5
100
°
Viewing
Angle
2
θ
1/2 [2]
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
Junction temperature
Operating Temperature
Storage Temperature
DC Forward Current [1]
Peak Forward Current [3]
Thermal resistance [1]
Electrostatic Discharge Threshold (HBM)
Iron Soldering [4]
Symbol
P
t
T
J
Top
Tstg
I
F
I
FM
R
th j-slug
Value
1.25
110
-40 To +100
-40 To +100
350
500
9
8000
350°C For 3 Seconds
Unit
W
°C
°C
°C
mA
mA
°C/W
V
Notes:
1.Metal Core PCB is mounted on the heat Fins.
2.θ 1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
3.1/10 Duty Cycle, 0.1ms Pulse Width.
4. 1.29mm below package base.
Electrical / Optical Characteristics at T
A
=25°C
Parameter
Wavelength at peak emission I
F
=350mA [Typ.]
Dominate Wavelength I
F
=350mA [Typ.]
Spectral bandwidth at 50%
Φ
REL MAX
Symbol
λ
peak
λ
dom
Δλ
Value
452
458
20
2.8
Unit
nm
nm
nm
I
F
=350mA [Typ.]
Forward Voltage I
F
=350mA [Min.]
Forward Voltage I
F
=350mA [Typ.]
Forward Voltage
I
F
=350mA [Max.]
TC
λ
peak
TC
λ
dom
TC
V
V
F
3.2
3.6
0.2
0.1
-3.2
V
Temperature coefficient of lpeak
I
F
=350mA, -10
°
C≤ T≤100
°
C [Typ.]
Temperature coefficient of ldom
I
F
=350mA, -10
°
C≤ T≤100
°
C [Typ.]
Temperature coefficient of V
F
I
F
=350mA, -10
°
C≤ T≤100
°
C
[Typ.]
nm/
°
C
nm/
°
C
mV/
°
C
Published Date : FEB 23 , 2008
Drawing No : SDSA6164
V1
Checked : B.L.LIU
P. 2/6
Part Number:
ZCB10X106W
www.SunLED.com
APOLLO

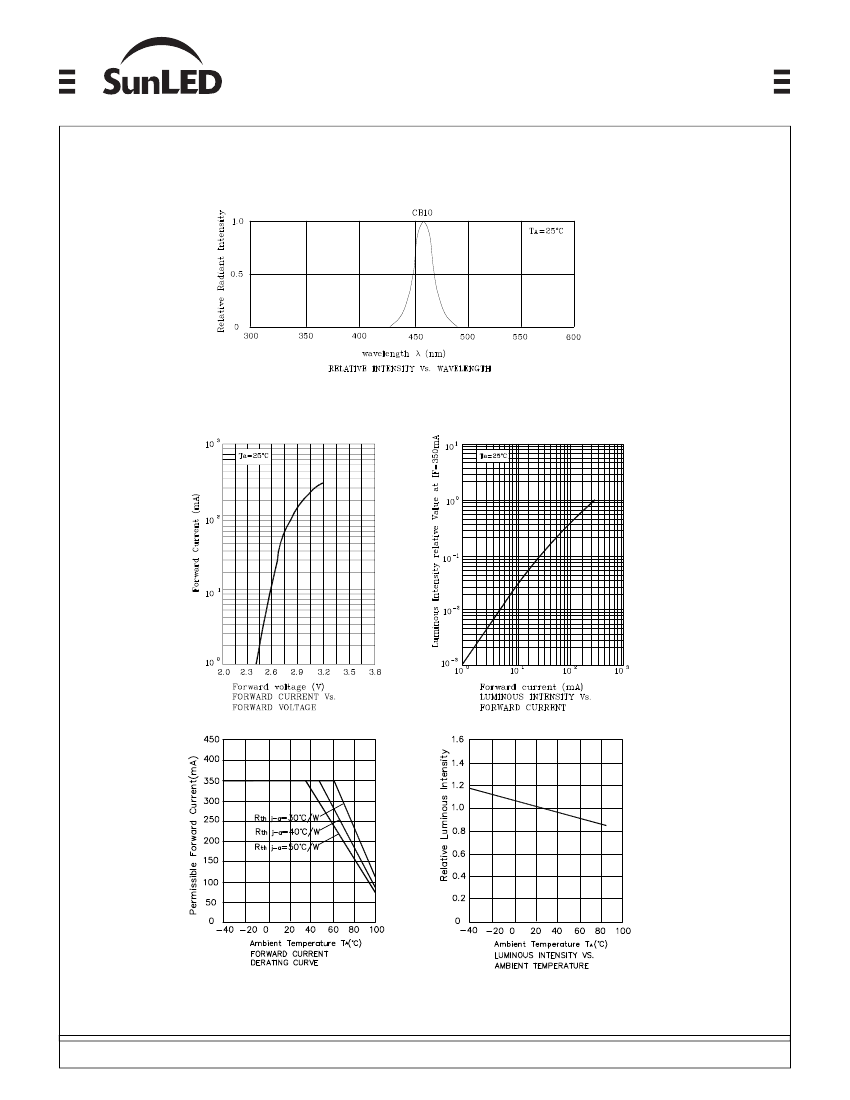

ZCB10X106W
Published Date : FEB 23 , 2008
Drawing No : SDSA6164
V1
Checked : B.L.LIU
P. 3/6
Part Number:
ZCB10X106W
www.SunLED.com
APOLLO

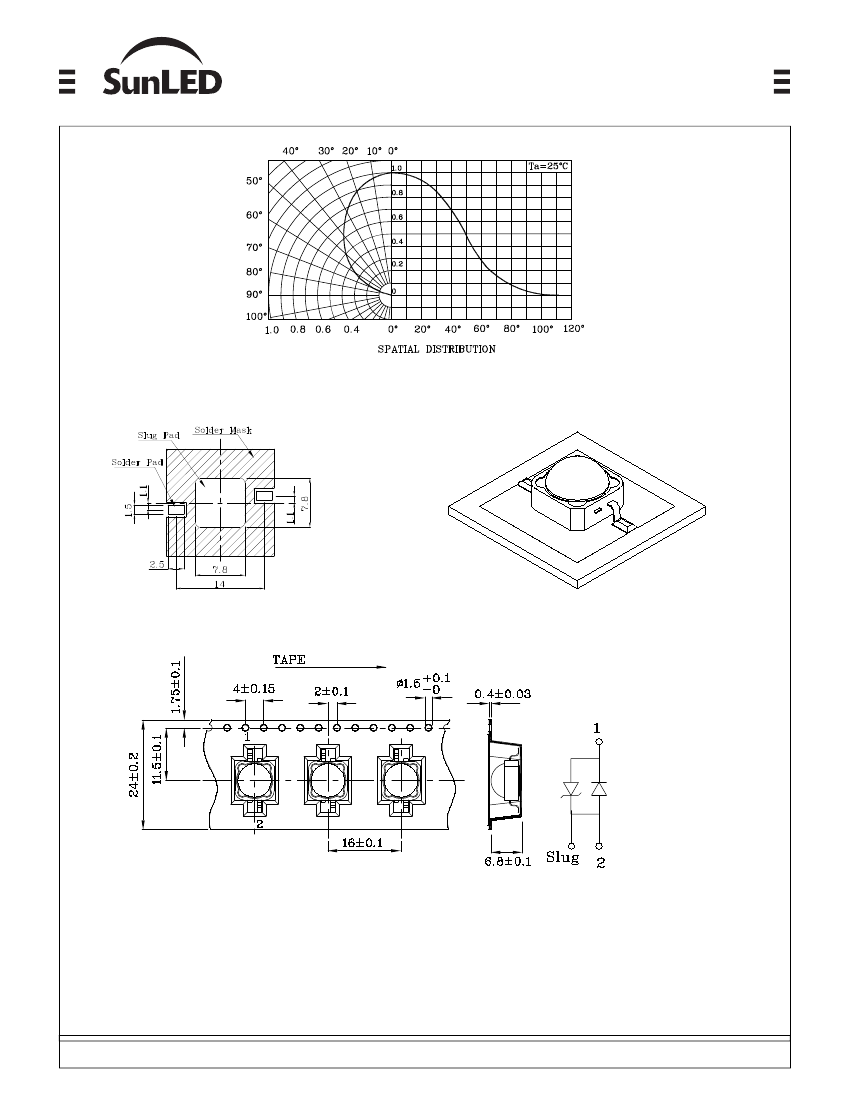

Recommended Soldering Pattern
(Units : mm; Tolerance: ±0.1)
The device has a single mounting surface. The device
must be mounted according to the specifications.
Tape Specification (Units : mm)
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity / luminous flux or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity / Luminous Flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Published Date : FEB 23 , 2008
Drawing No : SDSA6164
V1
Checked : B.L.LIU
P. 4/6
Part Number:
ZCB10X106W
www.SunLED.com
APOLLO

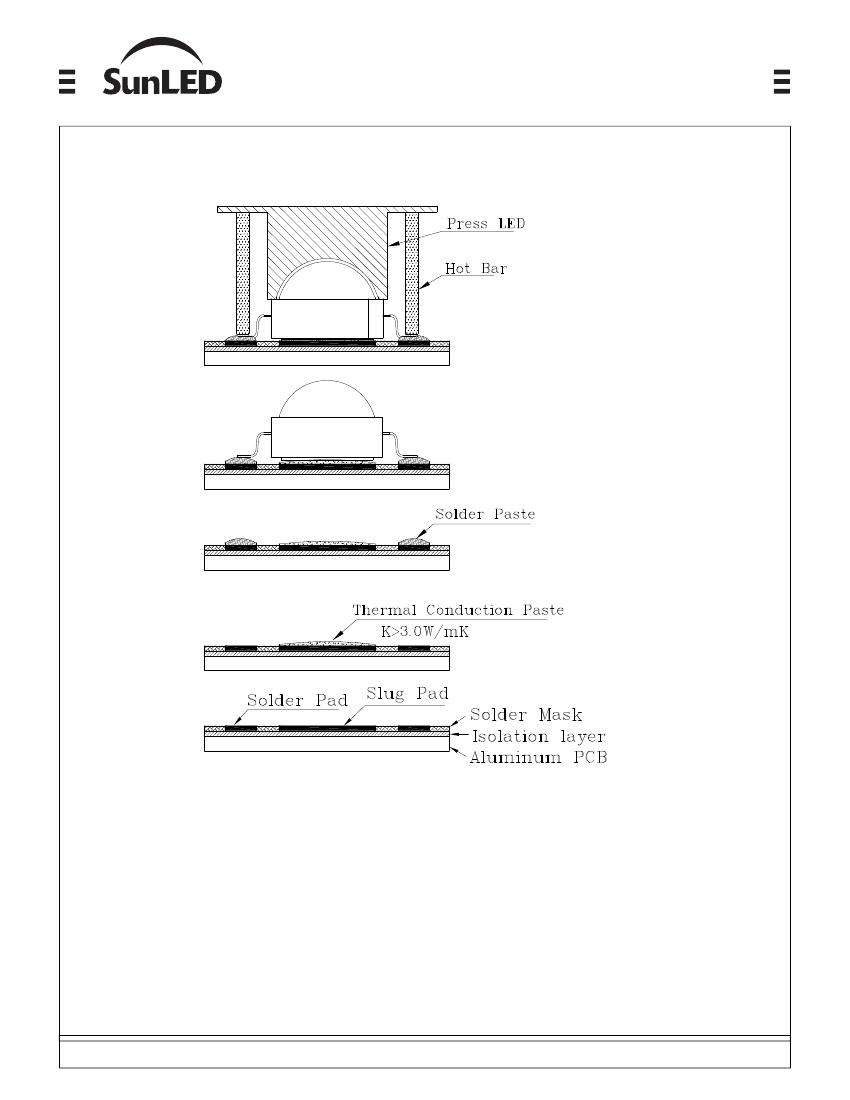

Recommended Solder Steps
Published Date : FEB 23 , 2008
Drawing No : SDSA6164
V1
Checked : B.L.LIU
P. 5/6
