395100012 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 395100012

395100012: Description3.81mm; CategoryThe connector terminals; File Size177KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

395100012 Overview

3.81mm

395100012 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
Base Number Matches	1

Preview

Download Datasheet

View All

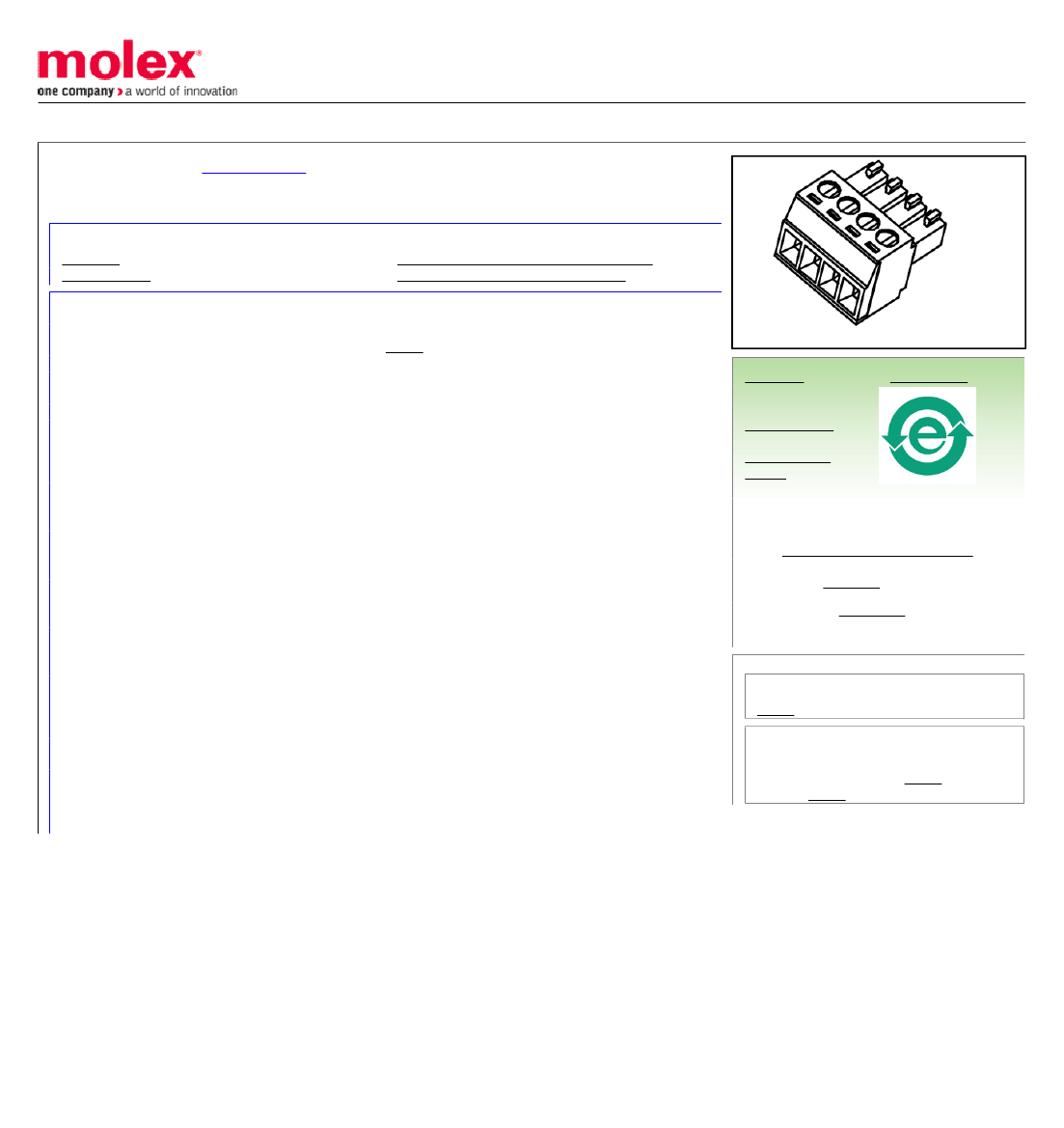

This document was generated on 04/23/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

Drawing (PDF)

0395100012

Active

3.81mm (.150") Pitch Eurostyle™ Horizontal Plug, 12 Circuits

Product Specification PS-39500-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39510

Wire-to-Board

Plug

USA-355

ESE, Eurostyle™Pluggable

Euro Block

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Wire Size AWG

Wire Size mm²

Vertical

None

Horizontal

0.150 In

3.81 mm

Yes

-40°C to +105°C

16, 18, 20, 22, 24

0.20 - 1.31

Electrical

Current - Maximum per Contact

Voltage - Maximum

300V

Search Parts in this Series

39510Series

Mates With

Most 3.81mm (.150") Pitch Industry

Standard PCB Headers, 39511 Vertical PCB

Header, 39512 Horizontal PCB Header

Material Info

Reference - Drawing Numbers

Product Specification

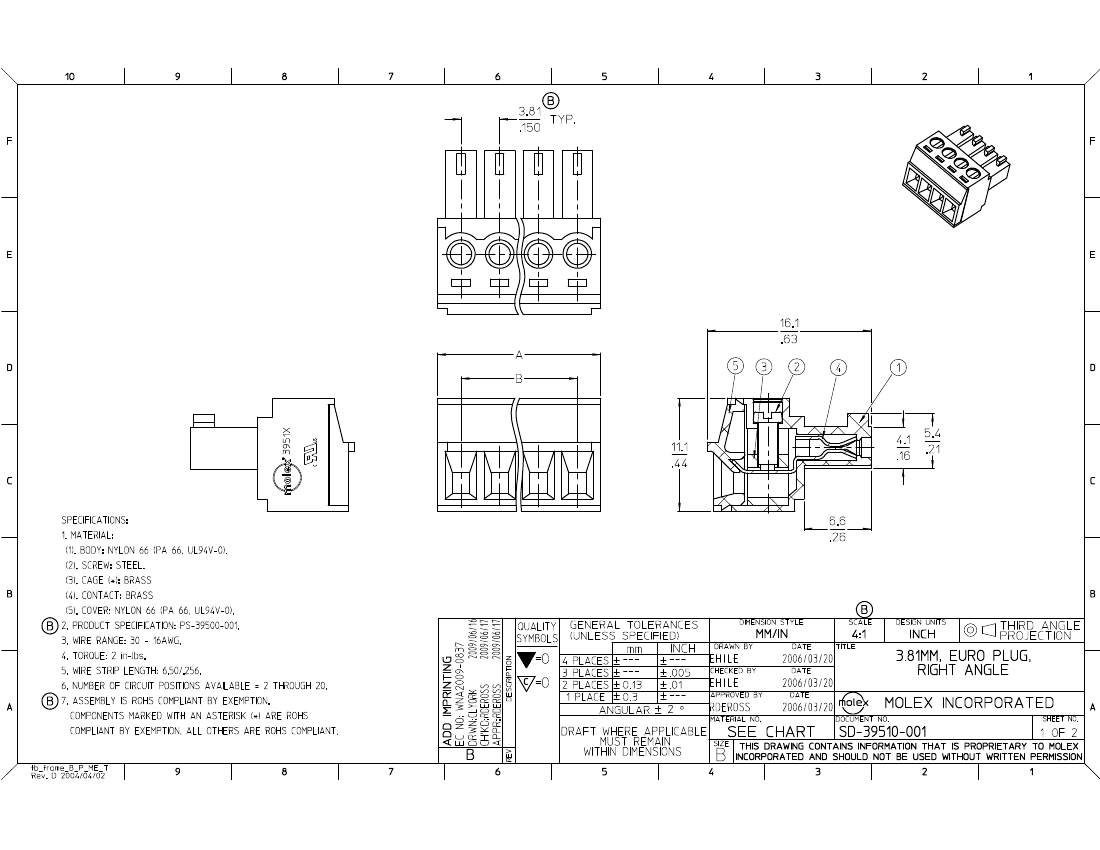

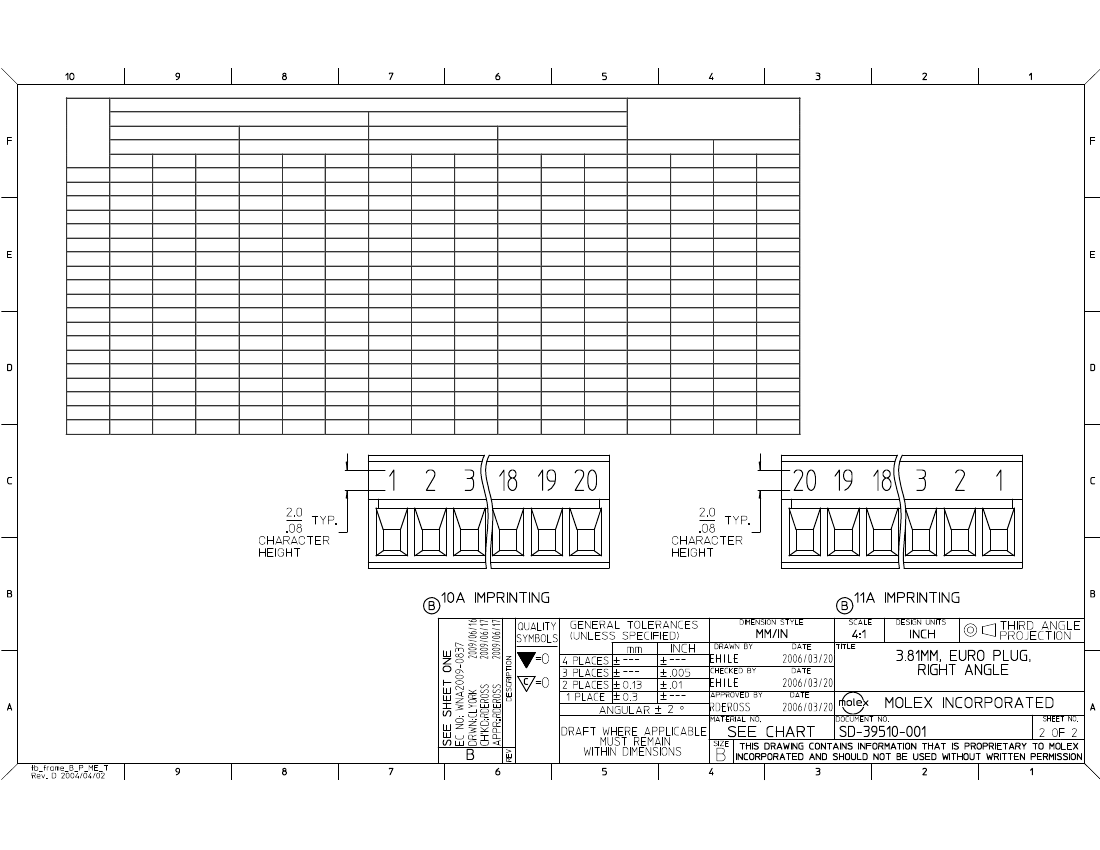

Sales Drawing

PS-39500-001

SD-39510-001

This document was generated on 04/23/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
