395364007 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 395364007

395364007: Description5.08mm; CategoryThe connector terminals; File Size201KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

395364007 Overview

5.08mm

395364007 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0395364007

Active

5.08mm (.200") Pitch Eurostyle™ Horizontal PCB Header, with Threaded Retention

Inserts, Surface Mount Compatible, 7 Circuits

Documents:

3D Model

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39536

Wire-to-Board

PCB Header

USA-355

ESE, Eurostyle™Pluggable

Euro Block

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Wire Size AWG

N/A

Yes

Horizontal

0.200 In

5.08 mm

0.125 In

3.20 mm

0.200 In

5.08 mm

Yes

Closed Ends

Yes

-40°C to +140°C

N/A

Search Parts in this Series

39536Series

Mates With

Most 5.08mm (.200") Pitch Industry

Standard Plugs, 39534 Horizontal Plug with

Retention Screws, 39537 Vertical Plug with

Retention Screws

Electrical

Current - Maximum per Contact

Voltage - Maximum

15A

300V

Material Info

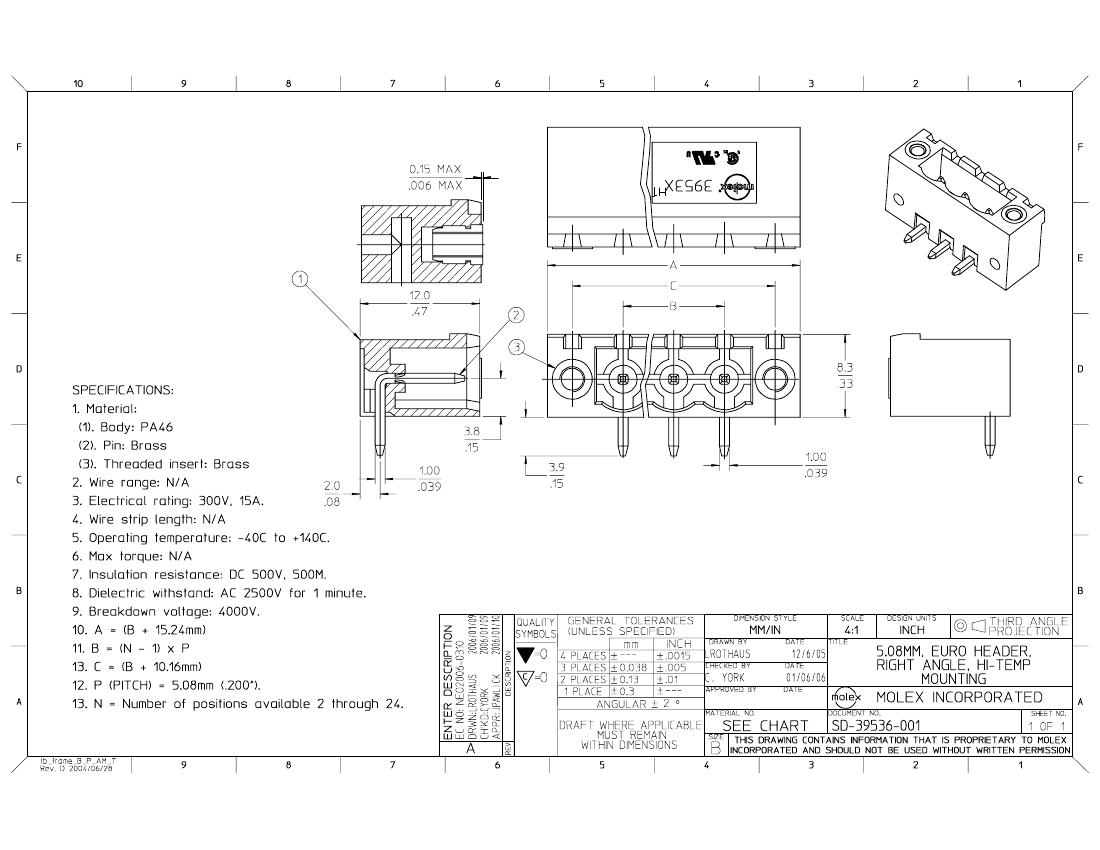

Reference - Drawing Numbers

Sales Drawing

SD-39501-002, SD-39536-001

This document was generated on 04/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
