399300521 Overview

3.81mm

399300521 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresTHERMOPLASTIC
Fastening methodSCREW
Manufacturer's serial number39930
Number of layers2
Rows2
Number of channels21
Rated current10 A
Rated voltage300 V
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Wire gauge14 AWG
Base Number Matches1
This document was generated on 02/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0399300521
Active
3.81mm (.150") Pitch Beau™ EuroMate™ Pluggable PCB Terminal Block, Dual Level,
270° Wire Entry, with Retention Screws, 21 Circuits
Documents:

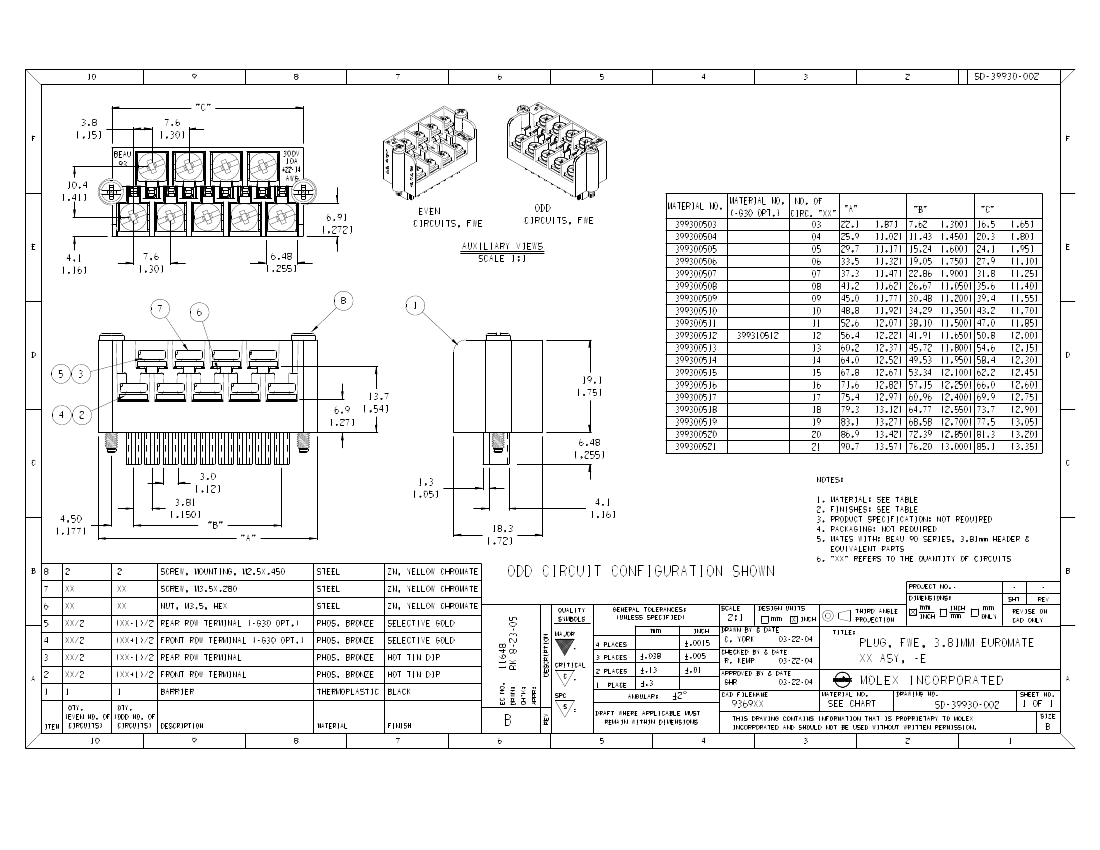

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Comments
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39930
Wire-to-Board
with retention screws
Plug
USA-264
EuroMate™Pluggable
Euro Block
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Color - Resin
Entry Angle
Flammability
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Retention
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
Wire Size mm²
21
Black
Horizontal
94V-0
Yes
Tin
Tin
Nylon
2
Vertical
N/A
No
0.150 In
3.81 mm
0.150 In
3.80 mm
Yes
Tri-Barrier
No
130°C
Screw or Lug
14, 16, 18, 20, 22
0.50 - 1.50
Search Parts in this Series
39930Series
Electrical
Current - Maximum per Contact
UL
Voltage - Maximum
12A
E48521
300V
Material Info
Old Part Number
936921
Reference - Drawing Numbers
Sales Drawing
SD-39930-002
