RA1632-642-D-NB-T1 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RA1632-642-D-NB-T1

RA1632-642-D-NB-T1: DescriptionArray/Network Resistor, Isolated, 0.12W, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0612, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size48KB，1 Pages; ManufacturerSUSUMU; Environmental Compliance

Download Datasheet Parametric View All

RA1632-642-D-NB-T1 Overview

Array/Network Resistor, Isolated, 0.12W, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0612, CHIP, ROHS COMPLIANT

RA1632-642-D-NB-T1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUSUMU
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ULTRA-PRECISION
Component power consumption	0.03 W
The first element resistor	642 Ω
JESD-609 code	e3
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	4
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR
Rated power dissipation(P)	0.12 W
Resistor type	ARRAY/NETWORK RESISTOR
size code	0612
surface mount	YES
Temperature Coefficient	25 ppm/°C
Temperature coefficient tracking	10 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WRAPAROUND
Tolerance	0.5%

Preview

Download Datasheet

View All

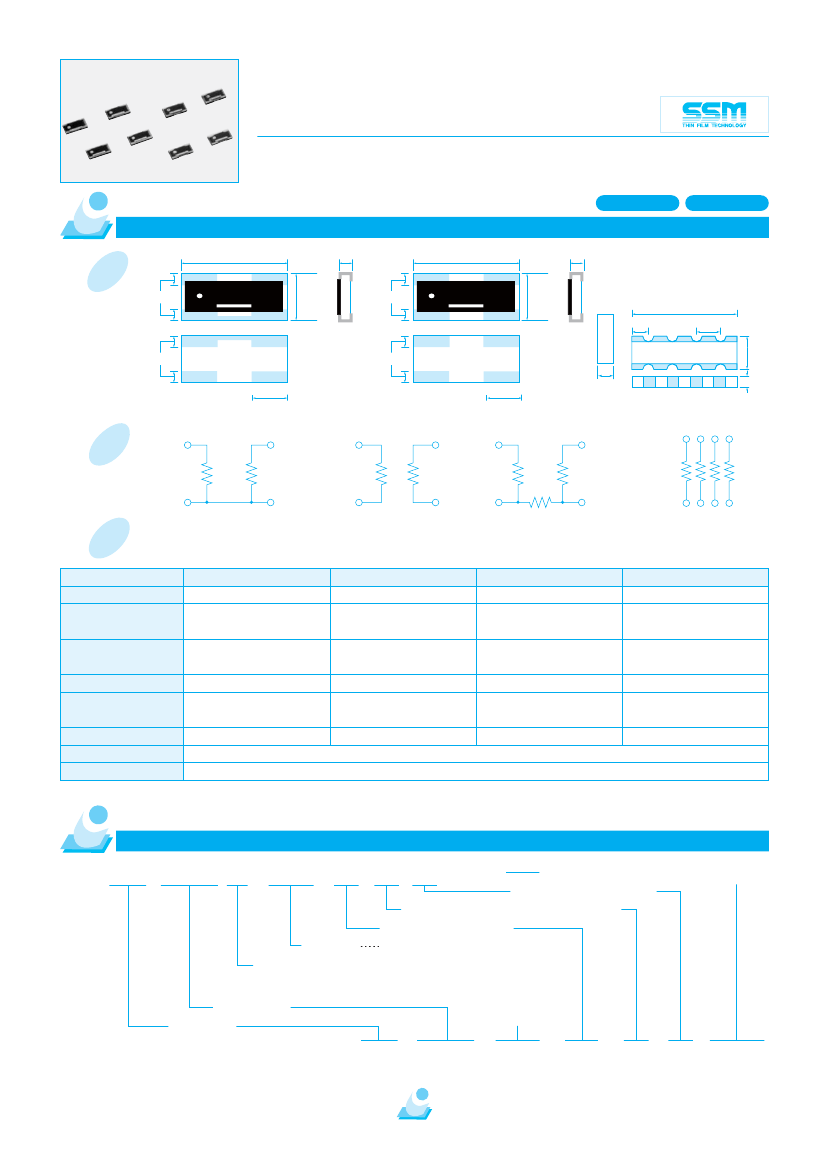

RN series, RA series, ultra-precision

chip network resistors

These 1206 chip resistor networks are available with either 2 or 3 resistors, and offer better

performance than SIP networks. The surface mount package allow for less parasitic

capacitance/inductance and even lower noise performance. Typical application: Voltage dividers.

RoHS compliant

Completely lead free

SPECIFICATIONS

3.2 0.2

0.4 0.1

3.2 0.2

0.4 0.1

(dimension:mm)

1.6 0.2

3.2 0.1

0.8 0.1

1.6 0.1

0.4 0.1

RA1632

0.4 0.1

Mechanical

0.4 0.25

1.6 0.2

0.4 0.25

0.4 0.2

1.0 0.2

RN1632A Type

1.0 0.2

RN1632B, C Type

Circuits

RN Series A Type

RN Series B Type

RN Series C Type

RA1632

Electrical

Type

Resistance Range( )

Absolute Tol. %(code)

Tracking Tol. %(code)

Absolute

TCR ppm / C(code)

Tracking

TCR ppm / C(code)

Power Rating

Operating Temp. Range

Package

RN1632A

50 200k

0.5%(D),

0.1%(B)

0.2%(C),

0.1%(B)

25ppm/ C

10ppm/ C(N),

5ppm/ C(V)

63mW/element

RN1632B

100 200k

0.5%(D),

0.1%(B)

0.2%(C),

0.1%(B)

25ppm/ C

RN1632C

100 33k

0.5%(D),

0.1%(B)

0.2%(C),

0.1%(B)

25ppm/ C

RA1632

50 100k

0.5%(D),

0.1%(B)

0.2%(C),

0.1%(B)

25ppm/ C

10ppm/ C(N),

5ppm/ C(V)

30mW/element, 120mW/package

10ppm/ C(N),

5ppm/ C(V)

63mW/element

42mW/element

55 C

125 C

1,000(T1),5,000(T5)pcs/reel

•

2.0 1.25mm size chip resistor for RN series A and B type is available.

•Certain

combinations of resistance values may incur initial costs.

•Contact

us for mixed resistance values in a package for RA1632.

PART NUMBER

RN 1632 A - **/** - B - V B (-T1)

Resistance

Circuit

Package (T1:1000pcs/reel,T5:5000pcs/reel)

Tracking Resistance Tolerance

Tracking Temperature Coefficient of Resistance

Resistance Tolerance

For circuits A and B two resistance values are

shown, while for circuits C and D resistance

values are individually shown as N **.

Dimensions

Part Code

Resistance (The letter k

denotes a thousand in

ohmic values.)

RA 1632 - 10k - B - V

susumu group catalog

B (-T1)

•

The specification of a different resistance value or a

specific-purpose circuit will assign an individual part code.
