800150MA030S500ZR datasheet, PDF

Datasheet> All Categories > The connector> The connector> 800150MA030S500ZR

800150MA030S500ZR: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Latch, Black Insulator, Receptacle; CategoryThe connector The connector; File Size203KB，1 Pages; ManufacturerSUYIN-USA; Websitehttp://www.suyinusa.com

Download Datasheet Parametric Compare View All

800150MA030S500ZR Overview

Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Latch, Black Insulator, Receptacle

800150MA030S500ZR Parametric

Parameter Name	Attribute value
Maker	SUYIN-USA
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	REEL PKG,WITH CAP
Board mount options	SOLDER HOLDING POSTS
body width	0.236 inch
subject depth	0.315 inch
body length	0.811 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Dielectric withstand voltage	500VAC V
Insulator color	BLACK
Manufacturer's serial number	800150
Plug contact pitch	0.031 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.572 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	30

Preview

Download Datasheet

View All

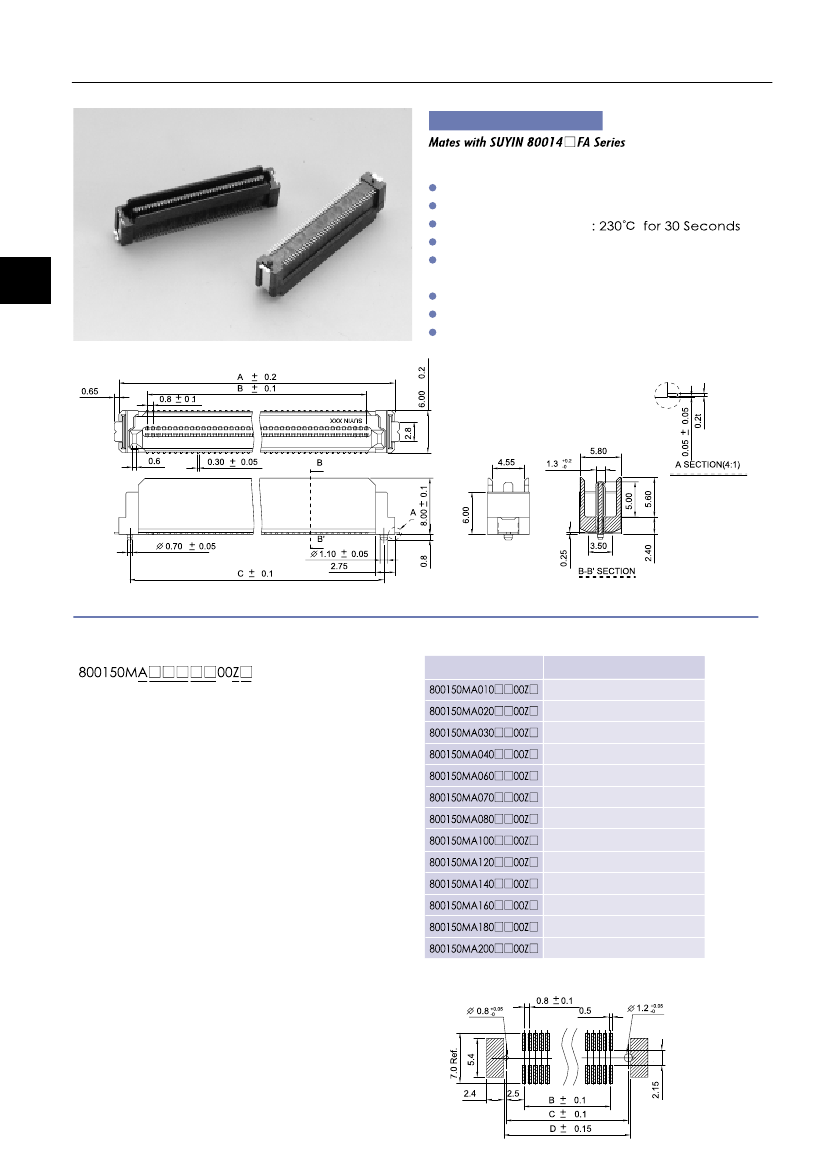

0.8 mm PITCH SURFACE MOUNT PLUG TYPE

(PLASTIC HEIGHT:8.0mm)

800150MA Series

Specifications:

10~200 Circuits

Insulator Material

Max Processing Temp

Terminal Material

Plating

0.8

: Black High Temp. Plastic

: Phosphor Bronze

: Selective Plated (Gold/Tin)

Latch - Tin Plated

: 0.5 A

: 100V AC

: 500V (Min. 60 seconds)

Max. Current Rating

Voltage Rating

Dielectric Strength

Order Information

Dimensional Information

SUYIN P/NO.

DIM.A

11.3

15.3

19.3

DIM.B

3.2

7.2

11.2

15.2

23.2

27.2

31.2

39.2

47.2

55.2

63.2

71.2

79.2

DIM.C

8.2

12.2

16.2

20.2

28.2

32.2

36.2

44.2

52.2

60.2

68.2

76.2

84.2

DIM.D

8.8

12.8

16.8

20.8

28.8

32.8

36.8

44.8

52.8

60.8

68.8

76.8

84.8

1. 'A' : Straight SMT Type

2. No. of Pins

3. Plating

4. Color 'Z' : Black

5. Package

'U' : Tube Package Without CAP

'R' : Reel Package With CAP

'T' : Tube Package With CAP

Reference Page 11

23.3

31.3

35.3

39.3

47.3

55.3

63.3

71.3

79.3

87.3

Recommended P.C.B. Layout

800150MA030S500ZR Related Products

	800150MA030S500ZR	800150MA030S500ZT	800150MA030S500ZU	800150MA100S200ZU
Description	Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Latch, Black Insulator, Receptacle	Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Latch, Black Insulator, Receptacle	Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Latch, Black Insulator, Receptacle	Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Latch, Black Insulator, Receptacle
Maker	SUYIN-USA	SUYIN-USA	SUYIN-USA	SUYIN-USA
Reach Compliance Code	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	REEL PKG,WITH CAP	TUBE PKG,WITH CAP	TUBE PKG,W/O CAP	TUBE PKG,W/O CAP
Board mount options	SOLDER HOLDING POSTS	SOLDER HOLDING POSTS	SOLDER HOLDING POSTS	SOLDER HOLDING POSTS
body width	0.236 inch	0.236 inch	0.236 inch	0.236 inch
subject depth	0.315 inch	0.315 inch	0.315 inch	0.315 inch
body length	0.811 inch	0.811 inch	0.811 inch	1.913 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU
Contact completed and terminated	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V
Insulator color	BLACK	BLACK	BLACK	BLACK
Manufacturer's serial number	800150	800150	800150	800150
Plug contact pitch	0.031 inch	0.031 inch	0.031 inch	0.031 inch
Installation option 1	LATCH	LATCH	LATCH	LATCH
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2
Number of rows loaded	2	2	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.572 mm	4.572 mm	4.572 mm	4.572 mm
Plating thickness	30u inch	30u inch	30u inch	FLASH inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.7874 mm	0.7874 mm	0.7874 mm	0.7874 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	30	30	30	100
