A-71661-1080 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Other integrated circuit (IC)> A-71661-1080

Preview

A-71661-1080: Description80 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, PLUG; Categorysemiconductor Other integrated circuit (IC); File Size221KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

A-71661-1080 Overview

80 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, PLUG

Preview

Download Datasheet

View All

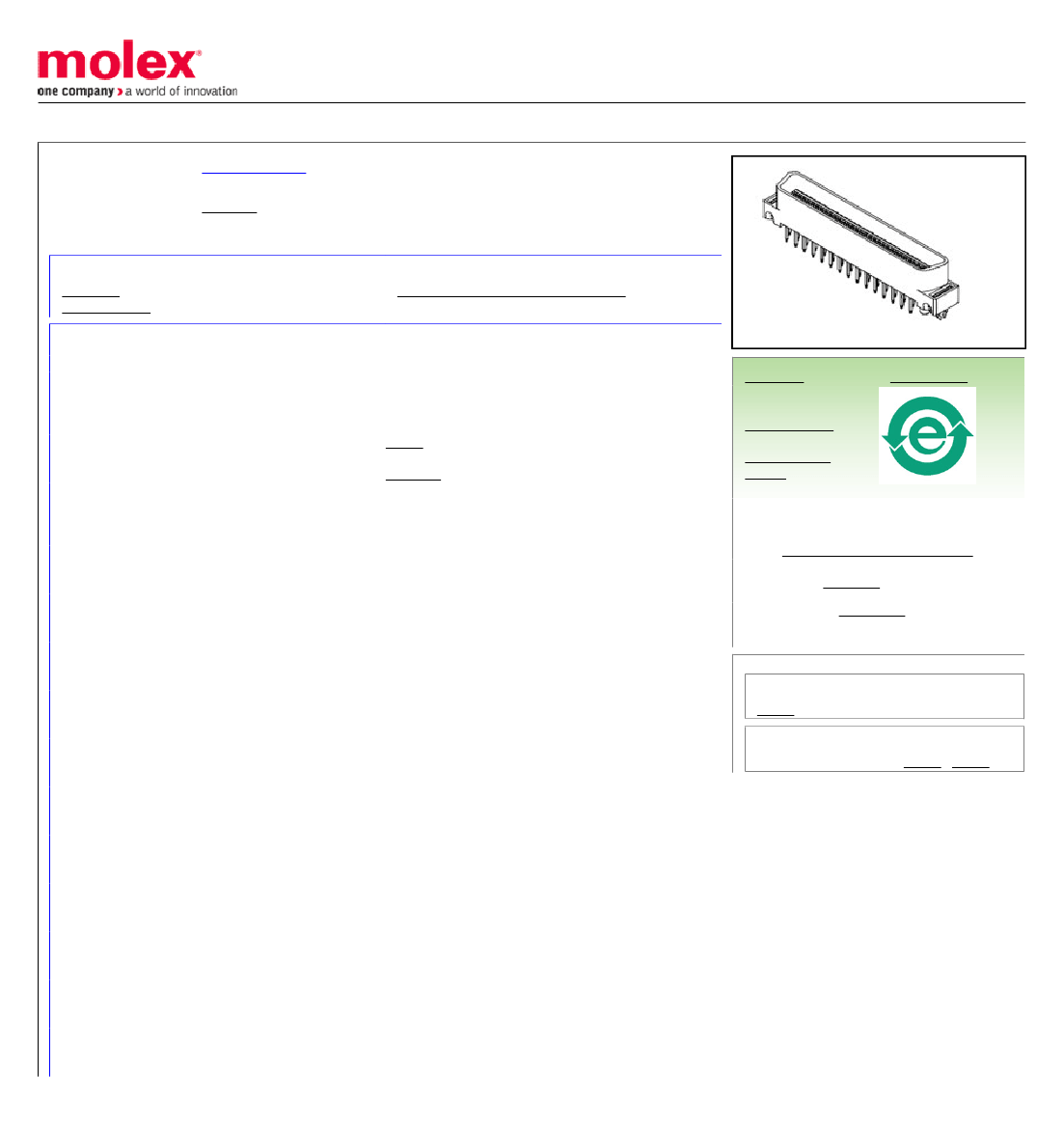

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0015922080

Active

ebbi_50d

1.27mm (.050") Pitch EBBI™ 50D Plug, Vertical, without Latch, 80 Circuits, 3.40mm

(.134") PC Tail Length

Documents:

3D Model

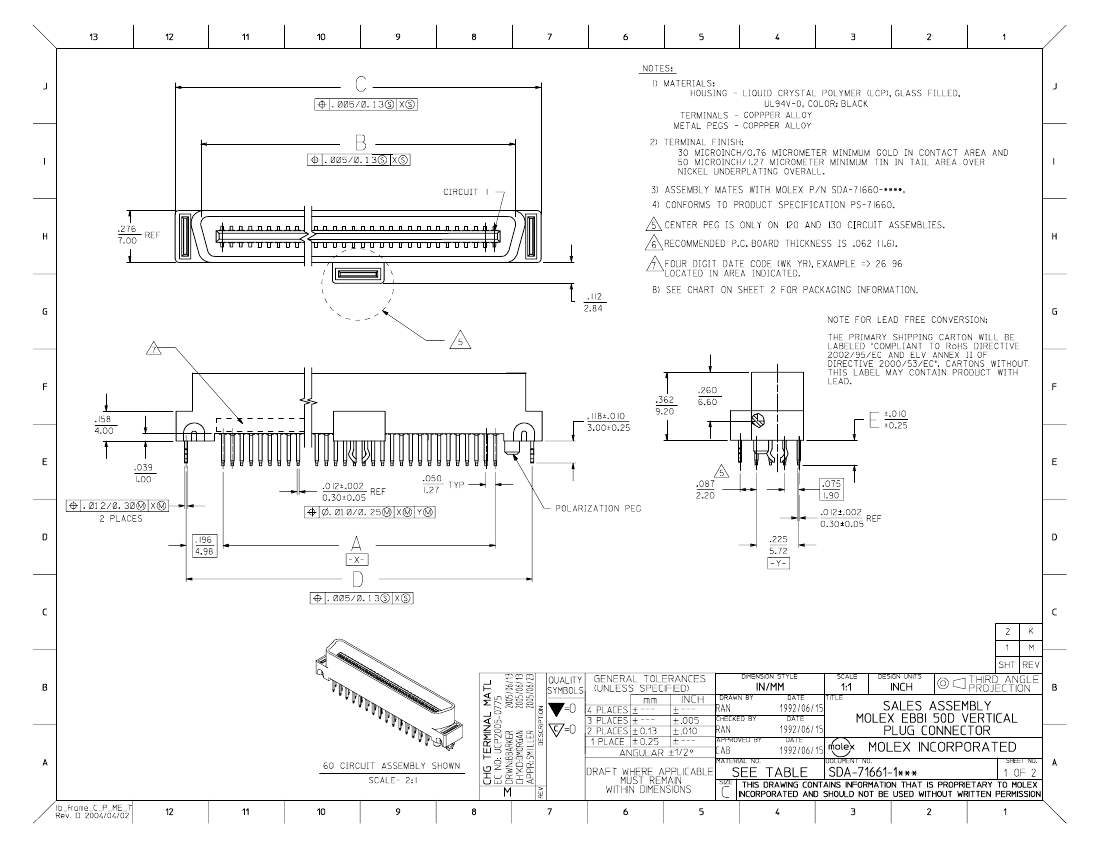

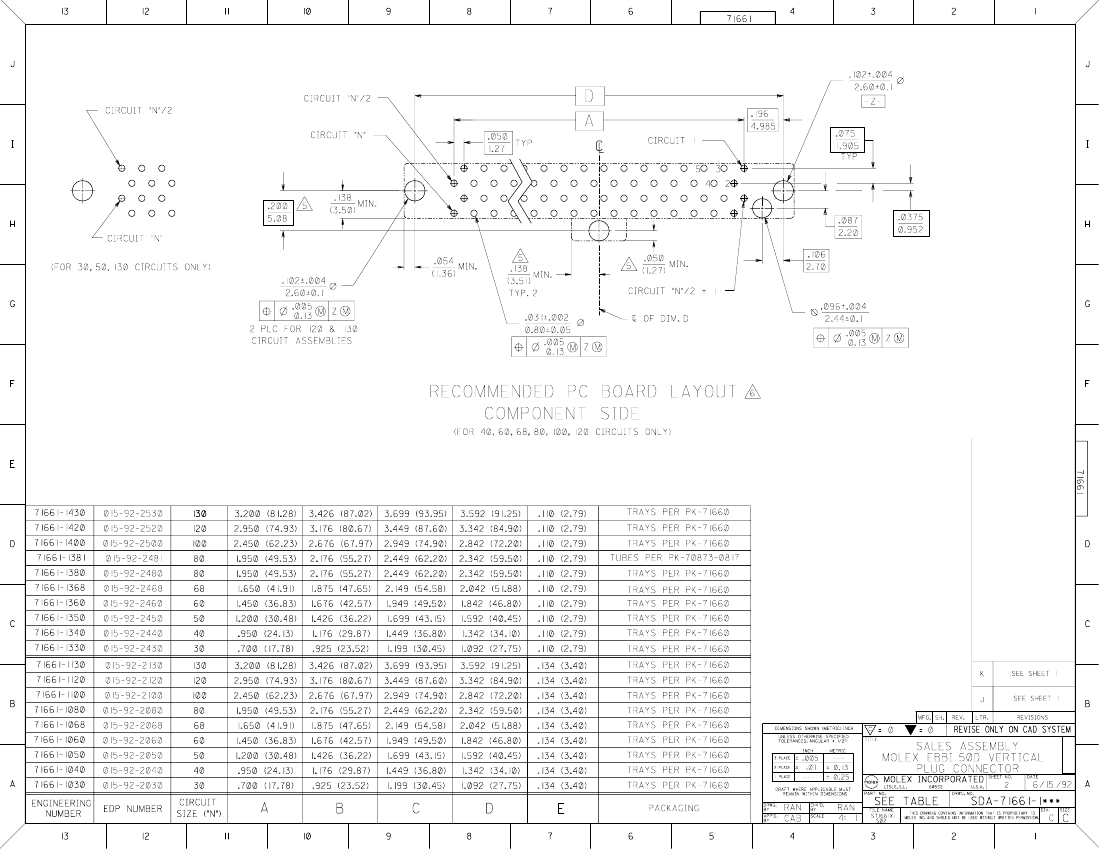

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Series

Agency Certification

CSA

LR19980

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

71661

Board-to-Board, Wire-to-Board

ebbi_50d

EBBI™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Black

2,000

94V-0

None

Copper Alloy

Gold

Tin

High Temperature Thermoplastic

Vertical

0.134 In

3.40 mm

Yes

0.062 In

1.60 mm

Tray

0.050 In

1.27 mm

0.050 In

1.27 mm

0.76

1.91

Yes

Search Parts in this Series

71661Series

Mates With

EBBI™ 50D Receptacle 71660 , 87552

A-71661-1080 Related Products

	A-71661-1080	015-92-2080	0015922080
Description	80 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, PLUG	80 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, PLUG	80 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, PLUG
Is it lead-free?	-	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to
Maker	-	Molex	Molex
package instruction	-	ROHS COMPLIANT	LOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Code	-	compliant	compliant
Is Samacsys	-	N	N
Body/casing type	-	PLUG	PLUG
Connector type	-	TELECOM AND DATACOM CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	-	GOLD (30) OVER NICKEL	GOLD (30)
Contact completed and terminated	-	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn)
Contact point gender	-	MALE	MALE
Contact material	-	COPPER ALLOY	COPPER ALLOY
DIN compliance	-	NO	NO
Filter function	-	NO	NO
IEC compliance	-	NO	NO
JESD-609 code	-	e3	e3
MIL compliance	-	NO	NO
Plug information	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	-	NO	NO
Installation method	-	STRAIGHT	STRAIGHT
Installation type	-	BOARD AND PANEL	BOARD
Number of rows loaded	-	2	2
Options	-	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	-	1.27 mm	1.27 mm
Termination type	-	SOLDER	SOLDER
Total number of contacts	-	80	80
UL Flammability Code	-	94V-0	94V-0
Base Number Matches	-	1	1
